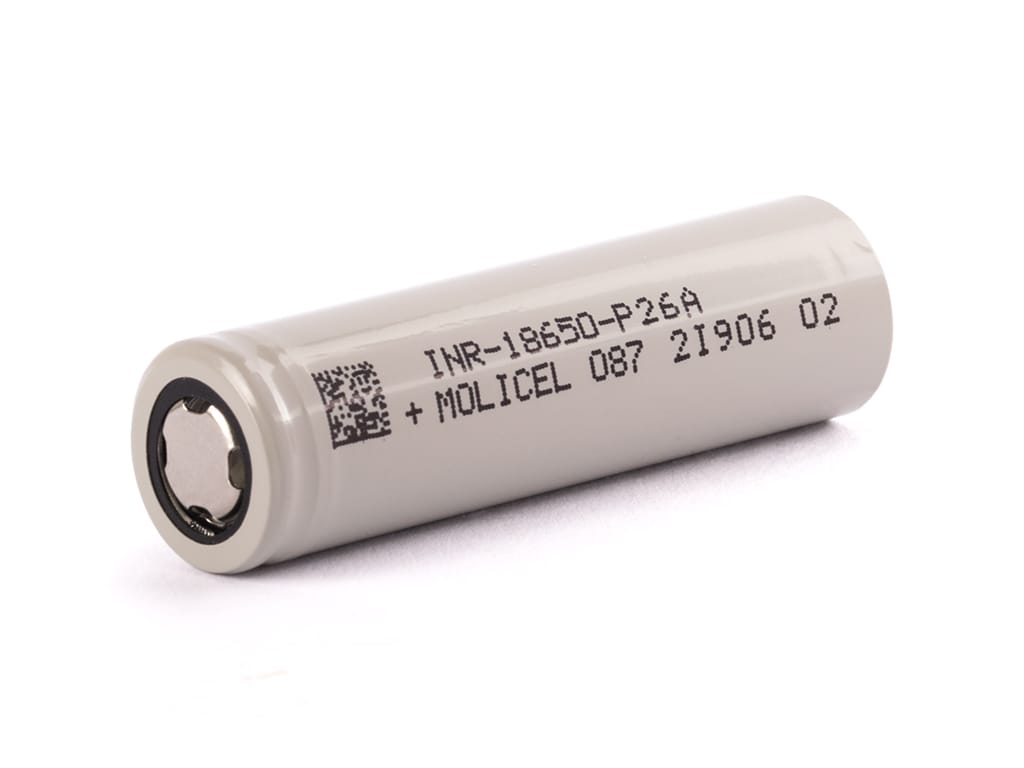

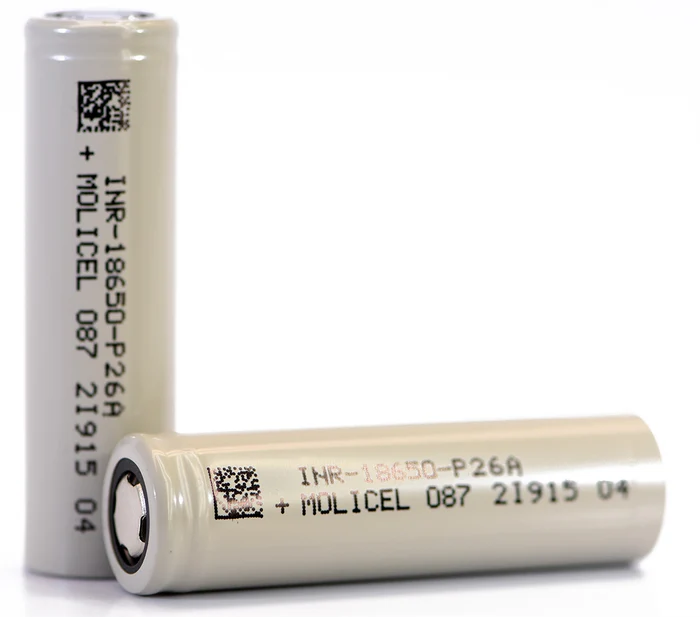

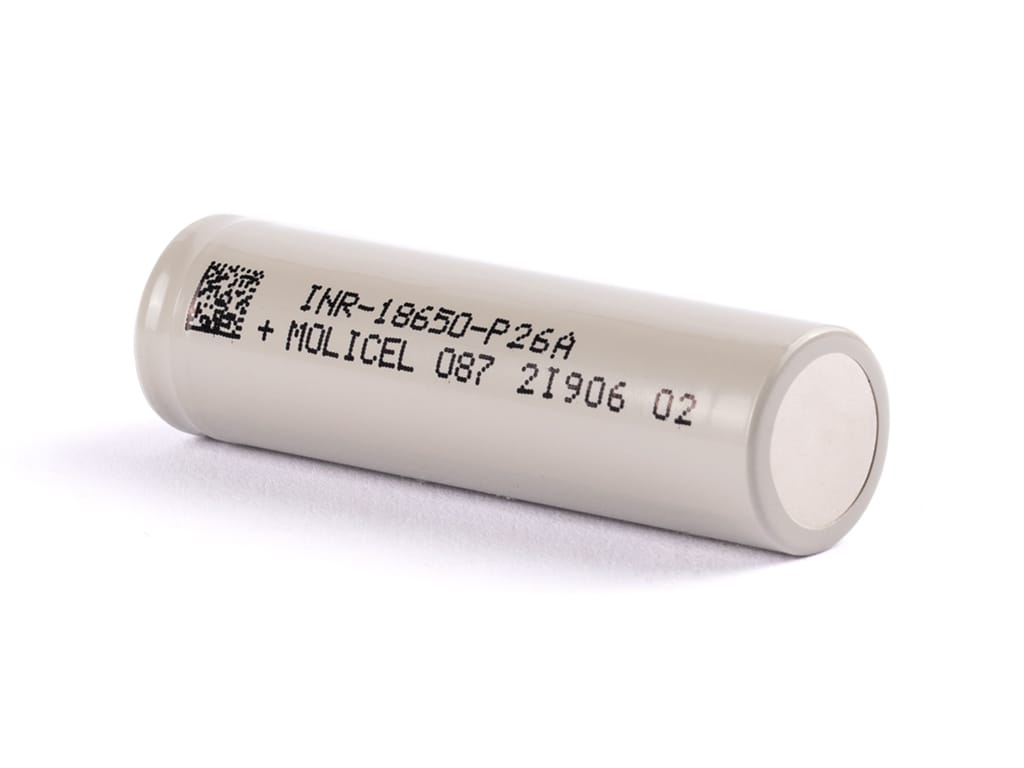

Molicel P26A 18650 2600mAh 35A Battery
The Molicel P26A is highly anticipated battery from a major manufacturer. It delivers an impressive performance with its first release. This cell offers a typical capacity of 2,600 mAh with a maximum continuous discharge rating of 35 amps. While the cycle life may be slightly reduced at this high amperage, the cell is designed to handle such loads without any issues.
The P26A stands out as the most powerful and durable cell in the 18650 form factor size with a capacity exceeding 2,000 mAh. It exhibits exceptional discharge performance, as evidenced by its high discharge current and capacity retention during the entire discharge cycle, even when compared to its competitors.
Manufacturer | Molicel |
Model | P26A |
Size | 18650 |
Positive Terminal | Flat Top |
Nominal Capacity | 2600mAh |
Continuous Discharge Rating (max) | 25A max , 35A w/ temp cutoff |
Continuous Current Rating (max) | 75W max, Recommended 55W for good performance and cycle life |
Nominal Voltage | 3.6V |
Maximum Voltage | 4.2V |
Discharge cut-off Voltage | 2.5V |
Protected | No |
Rechargeable | Yes |
Approx. Dimensions | 18.3mm x 65.05mm |
Approx. Weight | 45.8g |
Country of Origin | Taiwan |
Associated Names | INR-18650-P26A |
Data Specification Sheet | Molicel P26A Datasheet |
WARNING:
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- MISUSING OR MISHANDLING LITHIUM ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
- ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
- DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. – ALWAYS USE A PROTECTIVE CASE OR BOX
- KEEP AWAY from metal objects to prevent short circuiting
- DO NOT short circuit
- DO NOT use if wrapper or insulator is damaged or torn
- DO NOT use if damaged in any way
- DO NOT overcharge or over-discharge
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder, spot weld only
- User must be familiar with handling lithium ion batteries before purchase
- Usage of batteries is AT YOUR OWN RISK
- ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended
- RESELLERS MUST FORWARD ALL WARNINGS TO ALL CUSTOMERS FOR THEIR REFERENCE AND SAFETY
