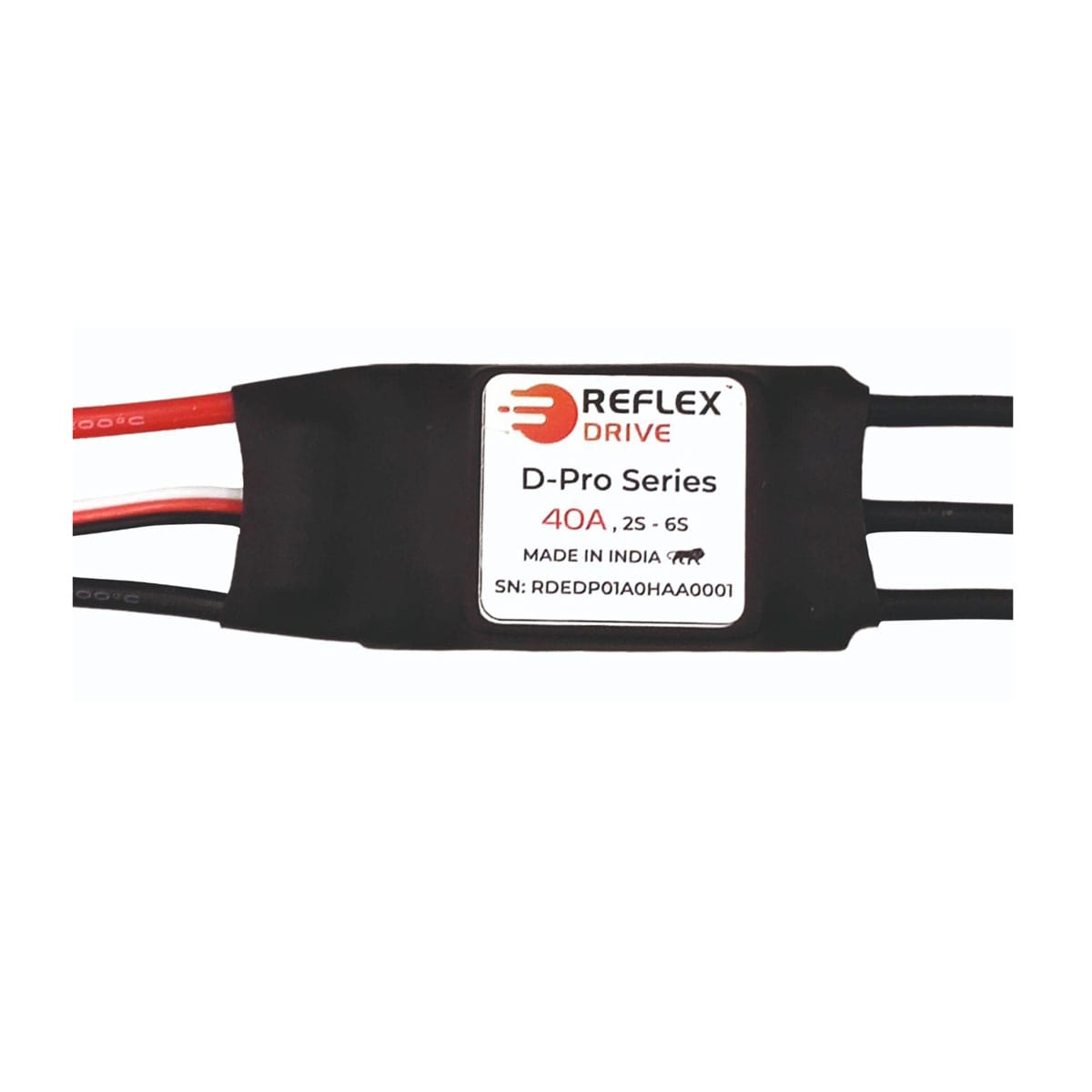

Reflex Drive’s D Pro trapezoidal electronic speed controllers (ESC) with Current Sensing drive for BLDC motors – and are proudly Designed and Manufactured in India.

The trapezoidal ESCs are designed to deliver superior performance and reliability, with customizable firmware and advanced safety features that make it the ideal choice for drone enthusiasts and commercial drone operators alike.

Specifications

Continuous Current Range	40A
Burst Current (20 Sec)	50A
Voltage	2S-6S
Heatsink Plate	Yes
BEC	No
Max Operating Temperature	70’C

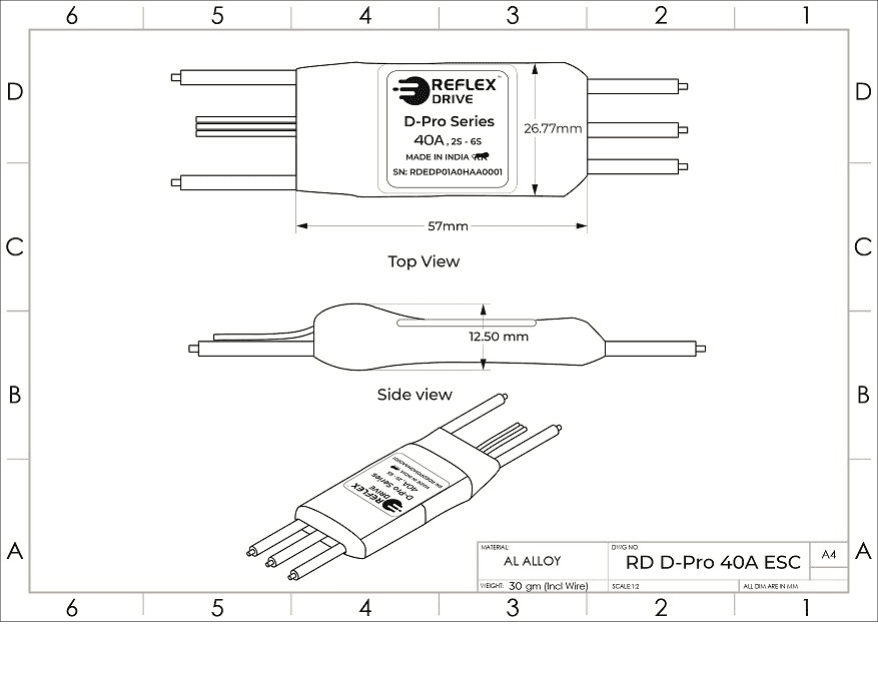

Dimensions	26.77mmx57mm
Weight	30gm Incl. Wire
Telemetry	Yes
Current Sense	Yes
Communication Protocol	PWM, DShot300
Recommended Motors	RD4006, RD5008
Status	Production
Enclosure	Available
