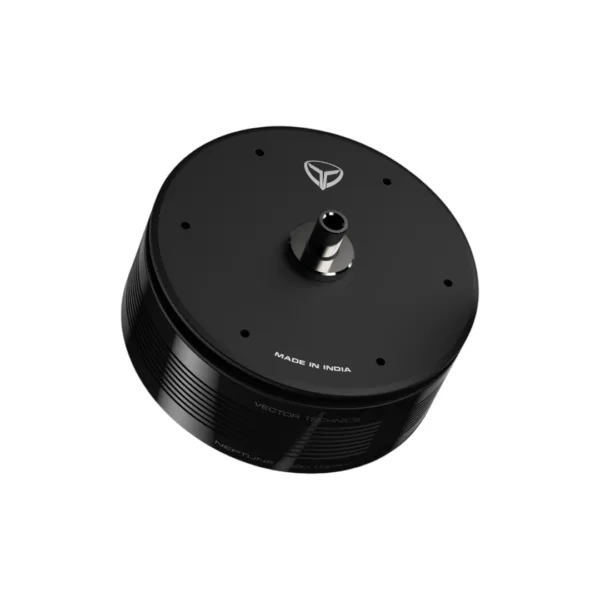

Vector Technics 6020 PRO

Vector Technics 6020 Pro

Vector Technics 6020 Pro: Precision Power for High-Performance UAVs

High Torque and Velocity for Demanding Flights
The Vector Technics 6020 Pro delivers unmatched efficiency with a Kv rating of 180 RPM/V, balancing torque and rotational speed precisely. It is tailored for professional UAVs where consistent power delivery and smooth motor response are essential. With a Kt value of 0.068 Nm/A at 5291 RPM, exceptional torque is achieved even during high-speed operations.

Powerful Performance with Extended Duty Cycle
The motor handles a maximum continuous current of 47A for up to 180 seconds, allowing it to operate efficiently under demanding loads. Furthermore, it can deliver up to 2209 watts of continuous power, offering remarkable thrust and stability during takeoff, cruising, and landing phases. As a result, payload-heavy missions benefit from both extended duty cycles and consistent performance.

Impressive Power Density and Voltage Range
With a rated power density of 3.53 W/g and a maximum of 6.863 W/g, the motor ensures superior energy-to-weight efficiency. Additionally, its voltage range of 44V to 52V (optimized for 12S LiHV systems) allows seamless integration into various advanced drone platforms. This compatibility helps reduce power-related limitations while improving overall flight performance.

Reliable Thermal and Electrical Design
A no-load current of just 2.5A at 48V ensures minimal energy waste during idle operation, enhancing flight duration and battery life. With a winding inductance of 0.046mH and phase resistance of 0.05Ω, the motor maintains stable electrical performance and reduced heat generation. As a result, system efficiency is maximized even during continuous use.

Durable Mechanical Build with Precise Mounting
The motor features triple bearings (619/6-2Z) for smoother rotation, increased durability, and reduced vibration during high-speed flights. A 6mm stick-out shaft provides secure propeller mounting, ensuring better stability under load. Moreover, the mounting pattern supports multiple configurations: 4XM4 @ ø30mm and several propeller mount options, ensuring easy integration across UAV platforms.

Optimized for Larger Propellers
Designed for propeller sizes up to 26 inches, the motor is ideal for large drones requiring stable lift and strong propulsion. It supports propeller mounting patterns such as 6XM3 @ ø54mm and others for universal compatibility. Therefore, applications involving mapping, surveillance, and delivery benefit from its smooth propulsion system.

Compact, Lightweight, and Made for Performance
With dimensions of ø69.5mm diameter and 40mm length, and weighing only 425 grams, this motor is compact yet powerful. Its size allows drone engineers to maximize space efficiency without sacrificing performance or stability.
