VK V9-AG Flight Controller

VK V9-AG Flight Controller

The VK V9-AG Flight Controller is a next-generation autopilot system built for modern agriculture. It integrates a high-speed processor with industrial-grade sensors for maximum reliability. This controller excels in harsh environments, operating smoothly from -25°C to 60°C. Because it features more peripheral interfaces, it streamlines complex drone builds. You can expect a highly stable flight performance even during heavy payload operations.

Moreover, the system supports a wide voltage input of up to 100V. This high-voltage compatibility provides essential protection against power fluctuations and surges. It is the ideal “brain” for professional spraying, seeding, and monitoring drones. By choosing the VK V9-AG, you invest in a future-proof platform for precision farming.

Key Features

Safety and precision are at the heart of this flight controller. It tracks GPS, Galileo, GLONASS, and BeiDou satellites concurrently for superior accuracy. Additionally, it supports RTK dual location systems for centimeter-level positioning. The dual magnetic compass design provides an extra layer of redundancy. Consequently, your drone remains safe even in areas with high electromagnetic interference.

Furthermore, the advanced filtering algorithms handle significant frame vibrations with ease. This ensures that the IMU data remains clean and responsive during flight. The controller also manages up to four water pumps and dual flow meters. These integrated interfaces make it the most efficient choice for automated crop protection.

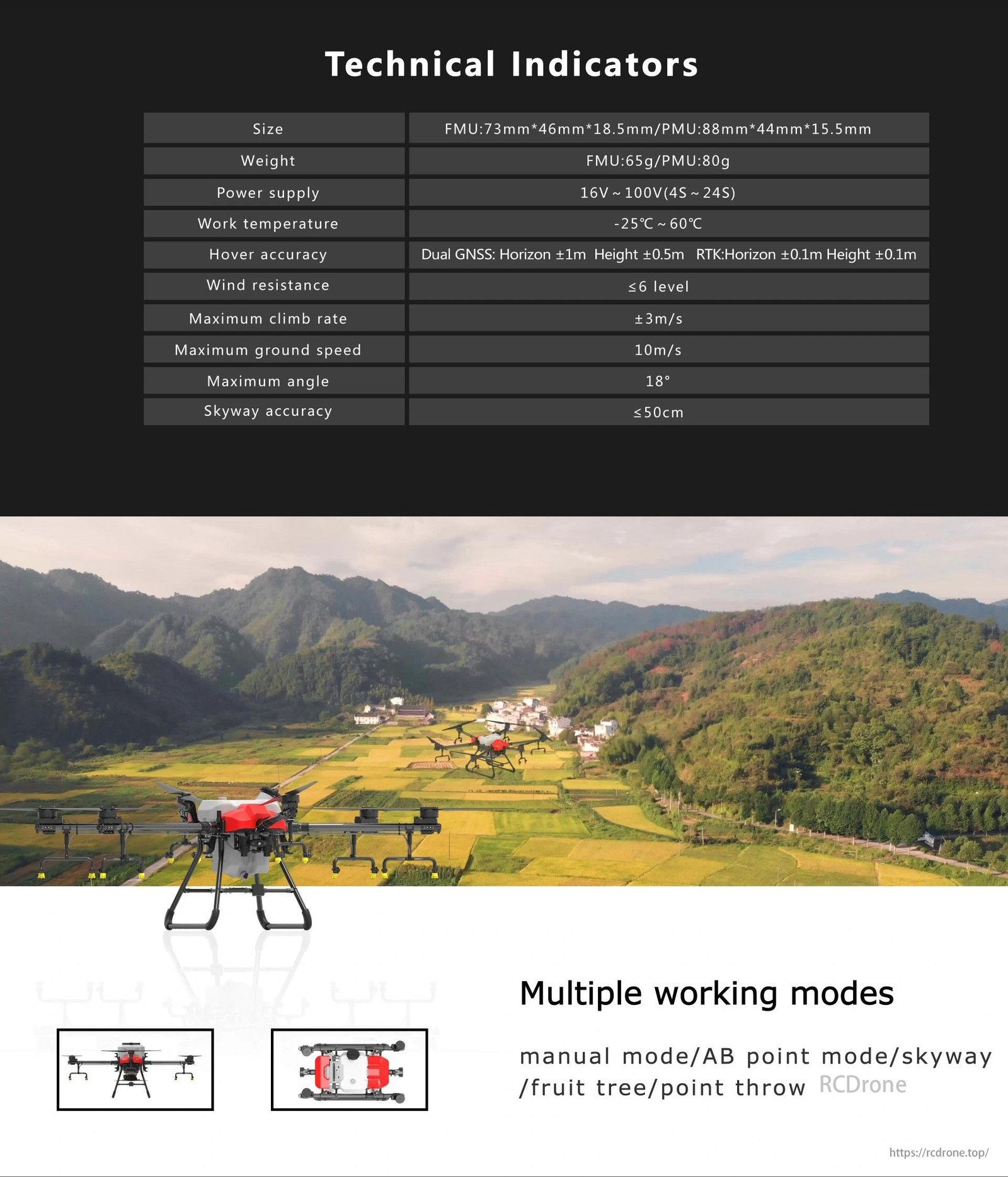

Specifications

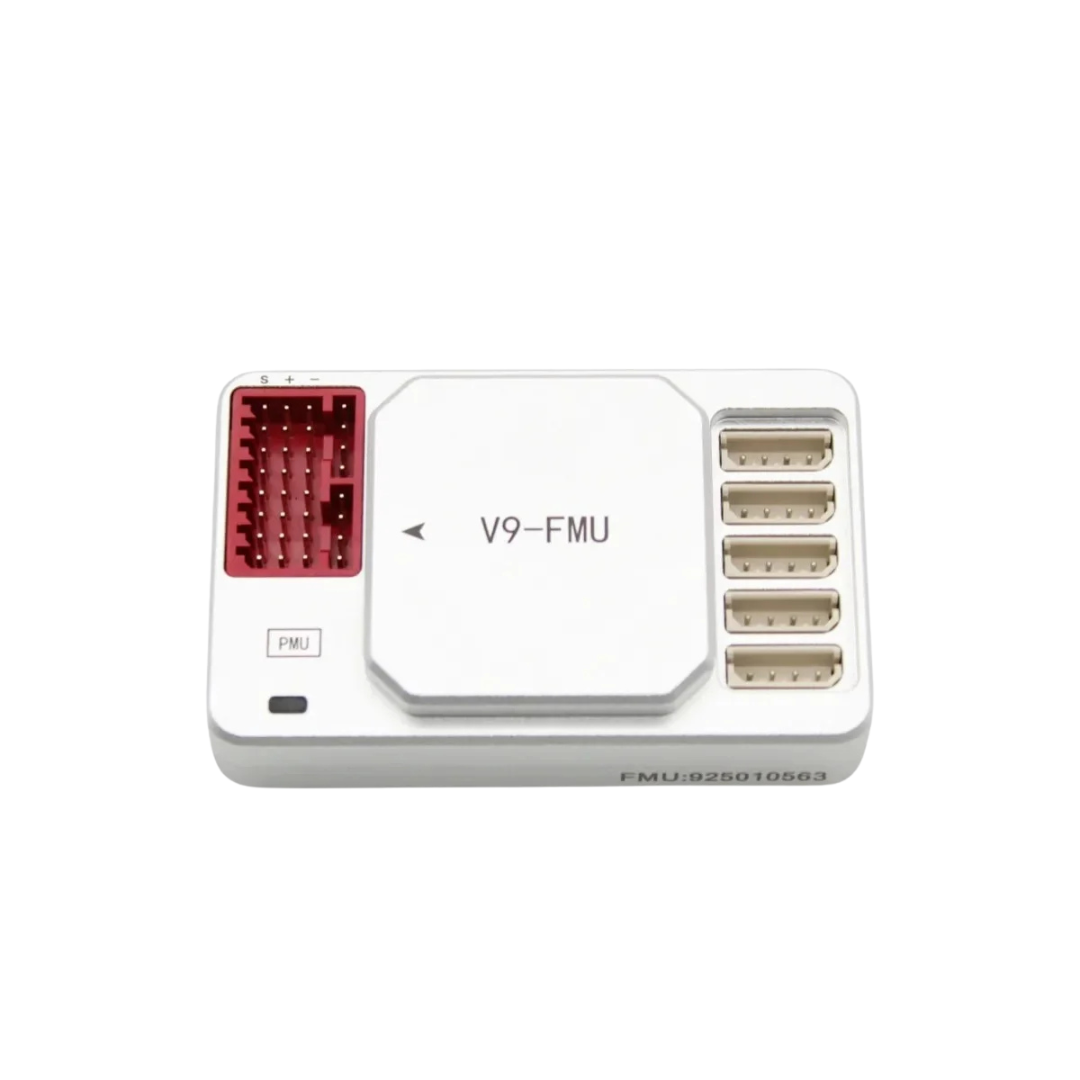

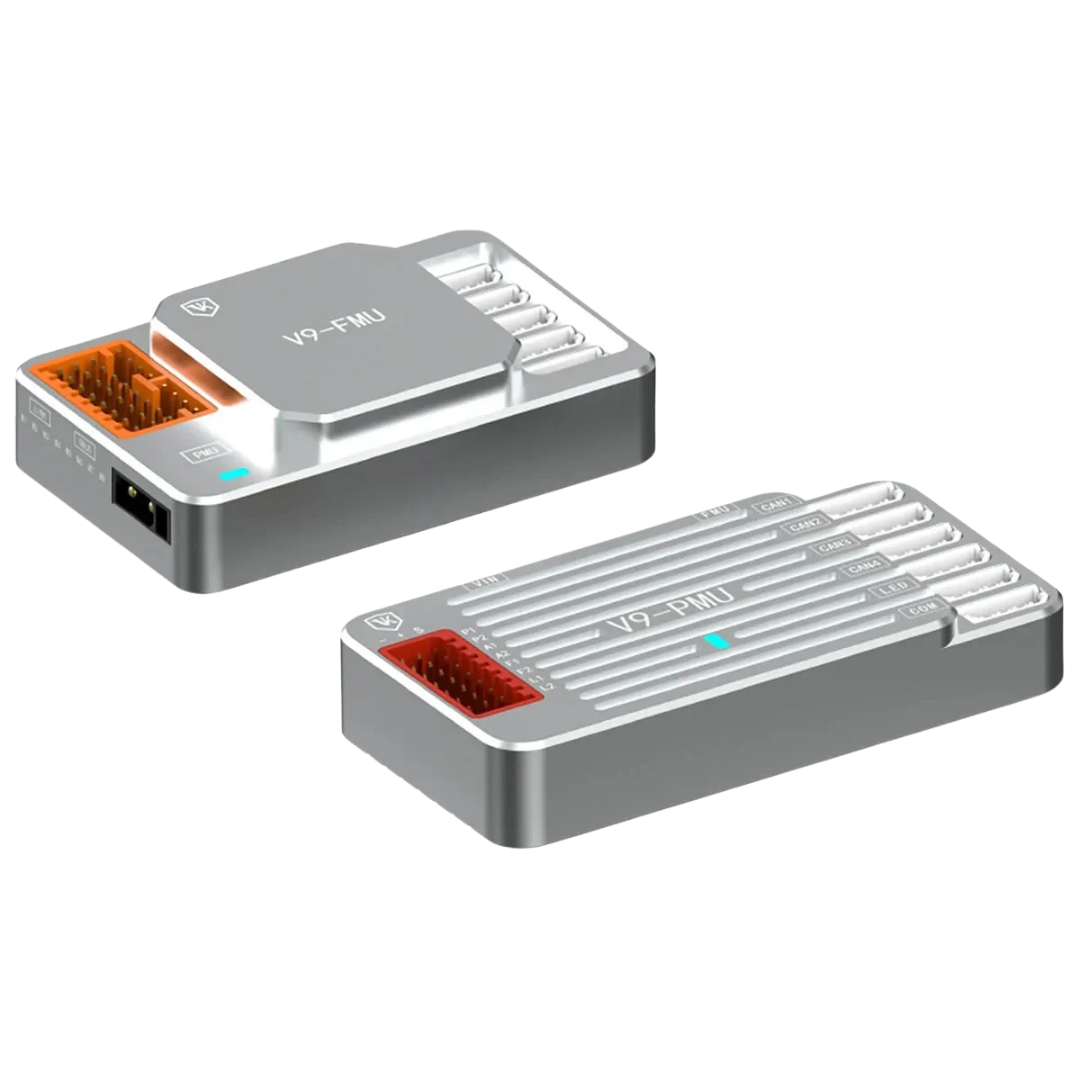

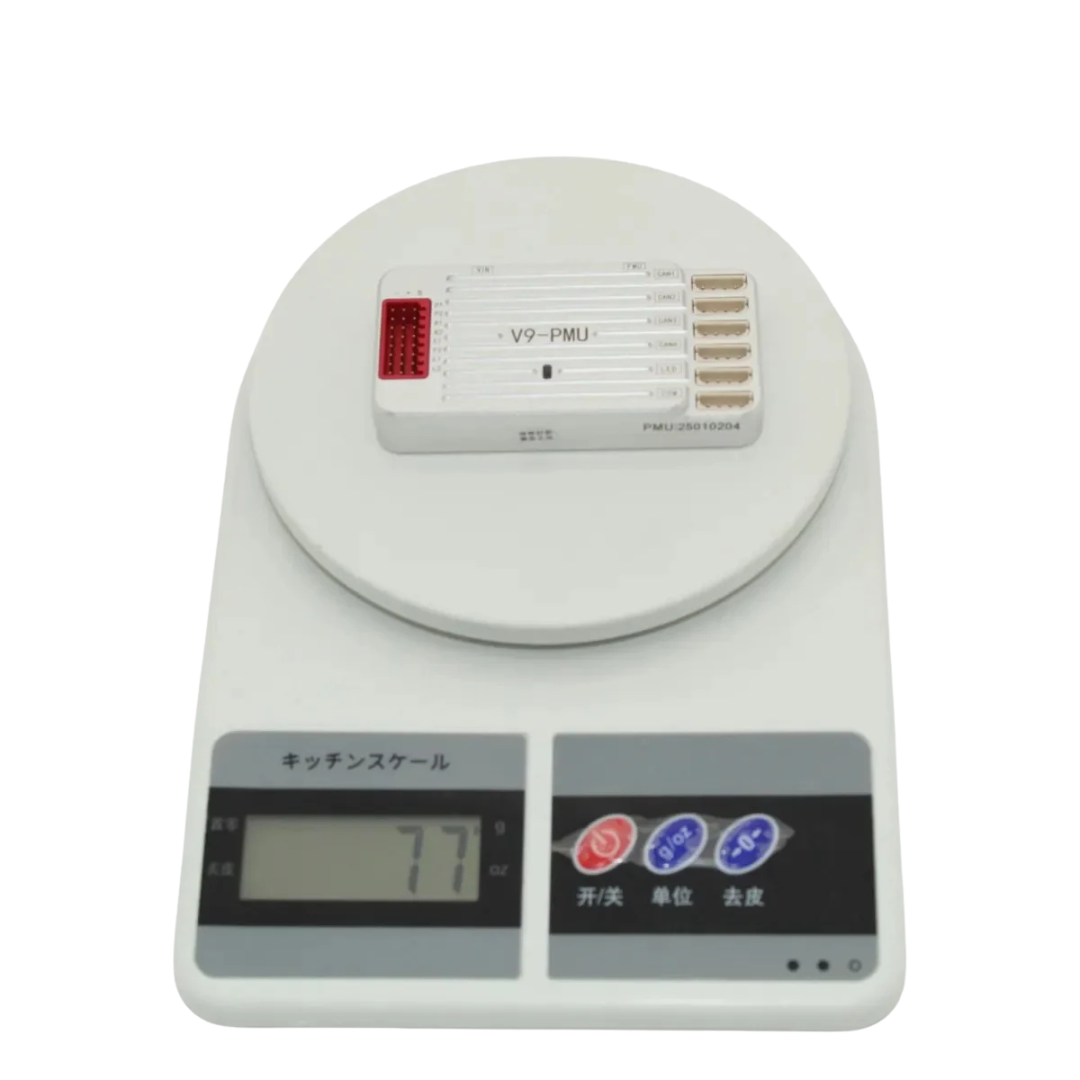

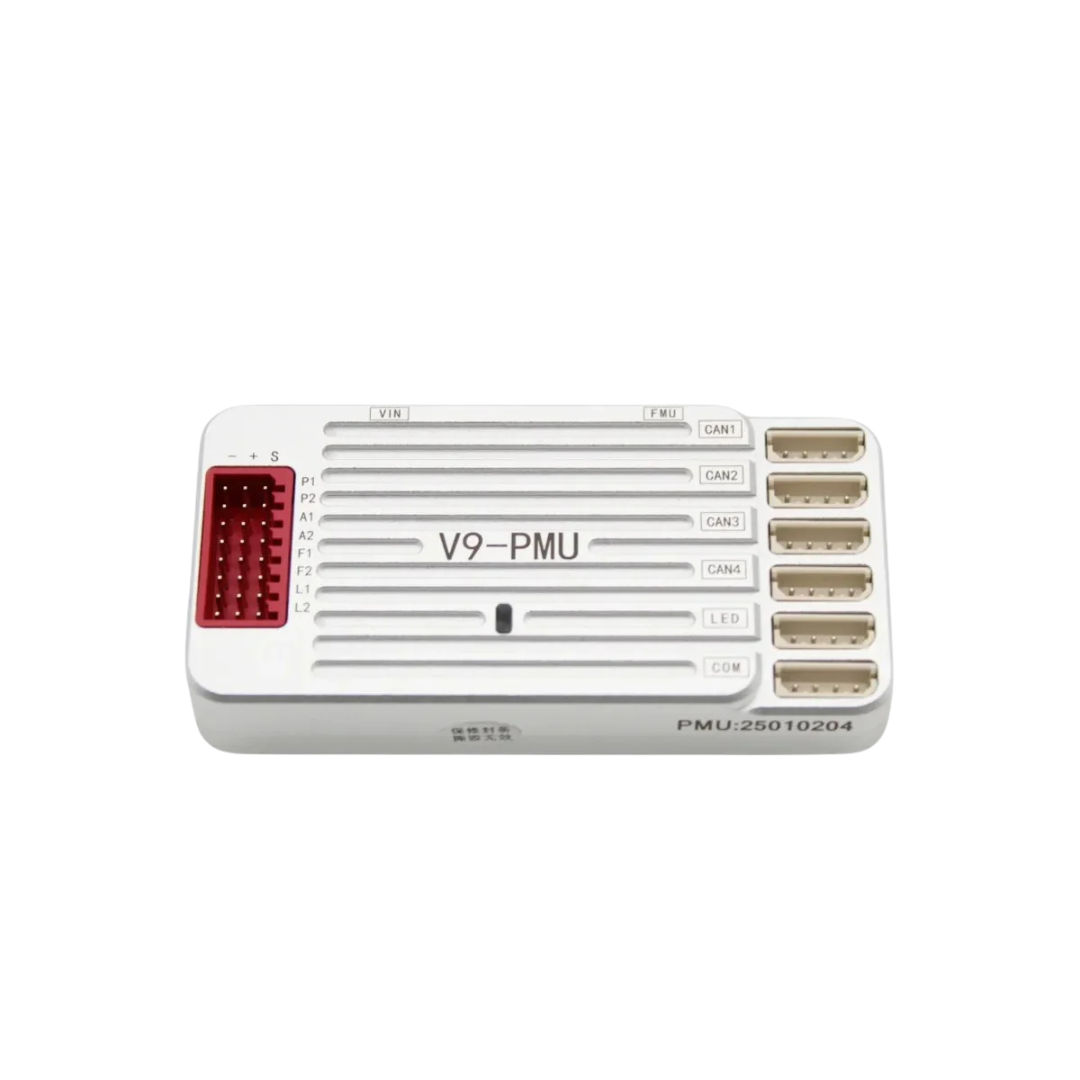

The VK V9-AG hardware is divided into the FMU and a robust PMU. The FMU is compact and lightweight, weighing only 65g for easy mounting. It supports both PWM and CAN signal drive systems for enhanced data integrity. For diagnostics, the unit can record and store up to 50 detailed flight logs. This data is vital for optimizing performance and troubleshooting field issues.

With a maximum horizontal speed of 10m/s, it covers large fields quickly. The hovering accuracy is impressively tight, especially when utilizing the RTK expansion. It also features a wind resistance rating of up to level 6. This allows you to maintain consistent spraying patterns even in breezy conditions.

Applications

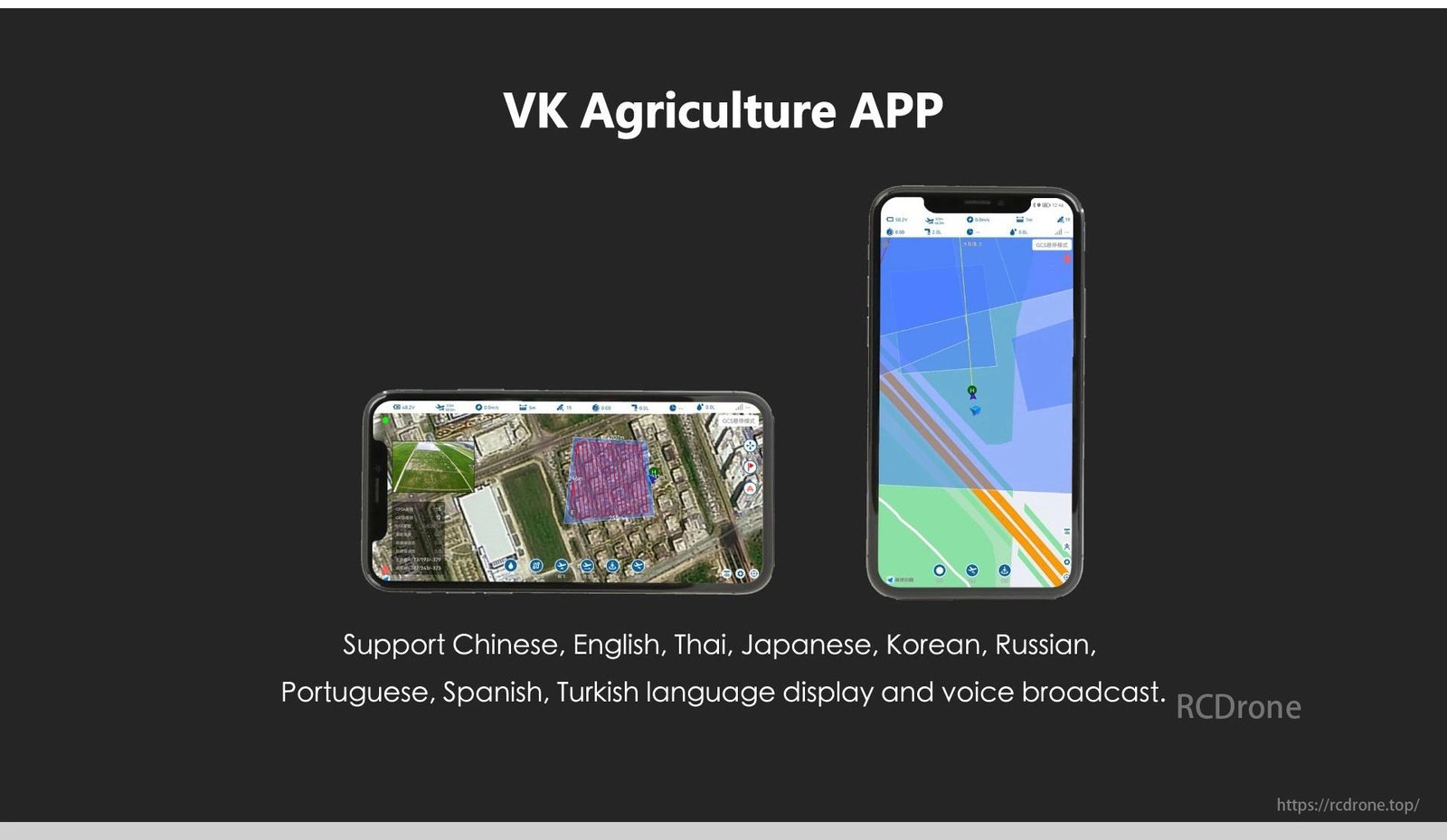

This flight controller is purpose-built for diverse agricultural UAVs. It powers specialized equipment like liquid sprayers, dusters, and solid seed spreaders. Many operators use the VK Agriculture App to plan autonomous fruit tree and “Skyway” missions. Because it is highly adaptable, it fits frames ranging from 4S to 24S LiPo configurations.

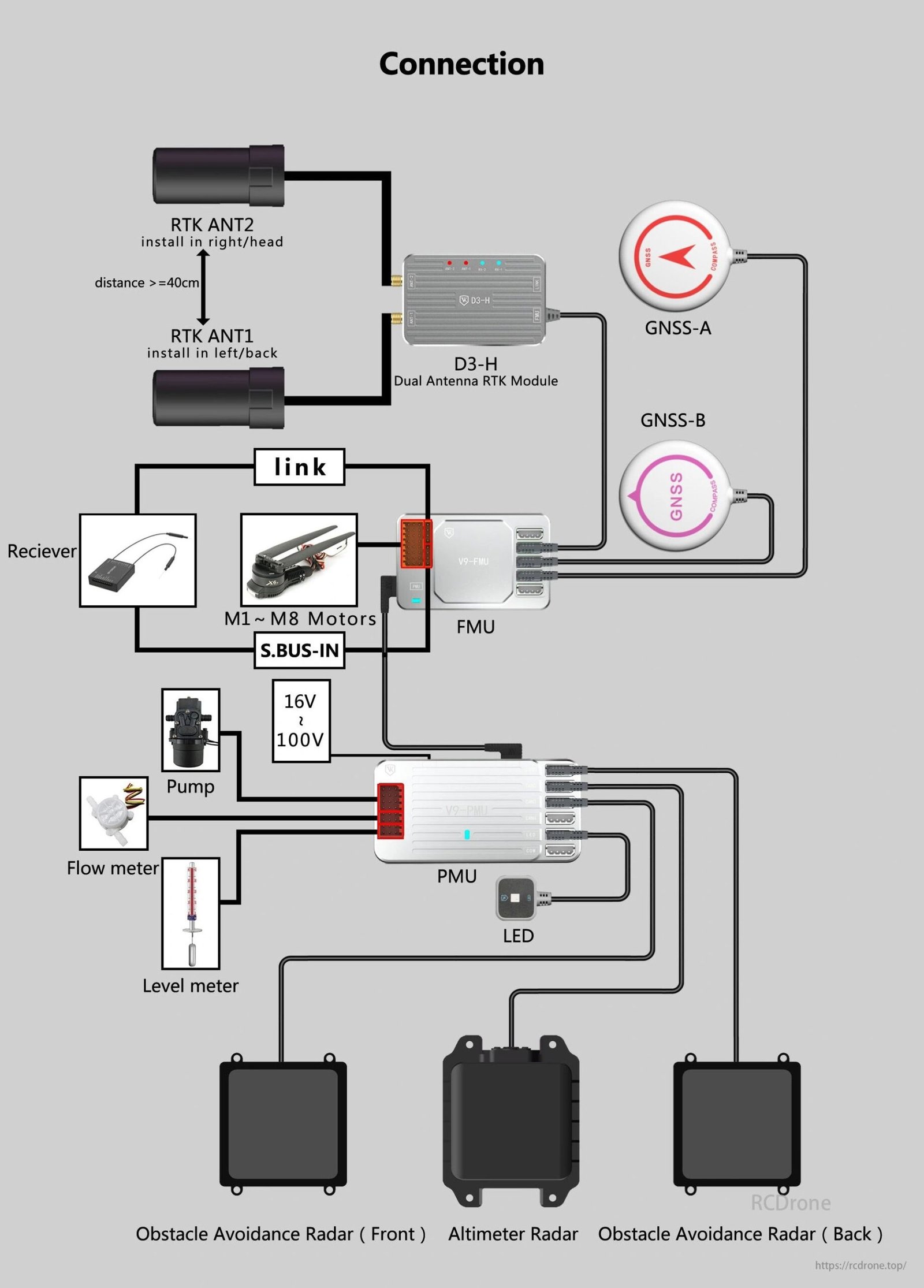

Additionally, the system is compatible with obstacle avoidance and terrain-following radars. This makes it perfect for low-altitude flights over uneven terrain. Whether you are managing a small farm or a large industrial fleet, this FC delivers. It provides the precision needed to reduce chemical waste and improve crop yields.
