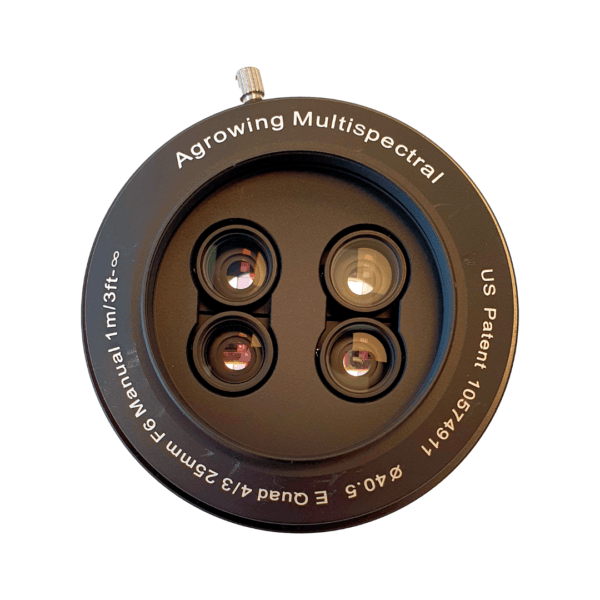

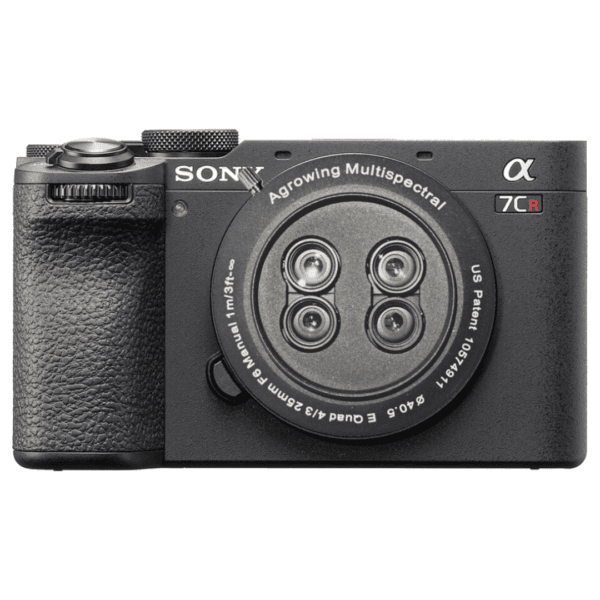

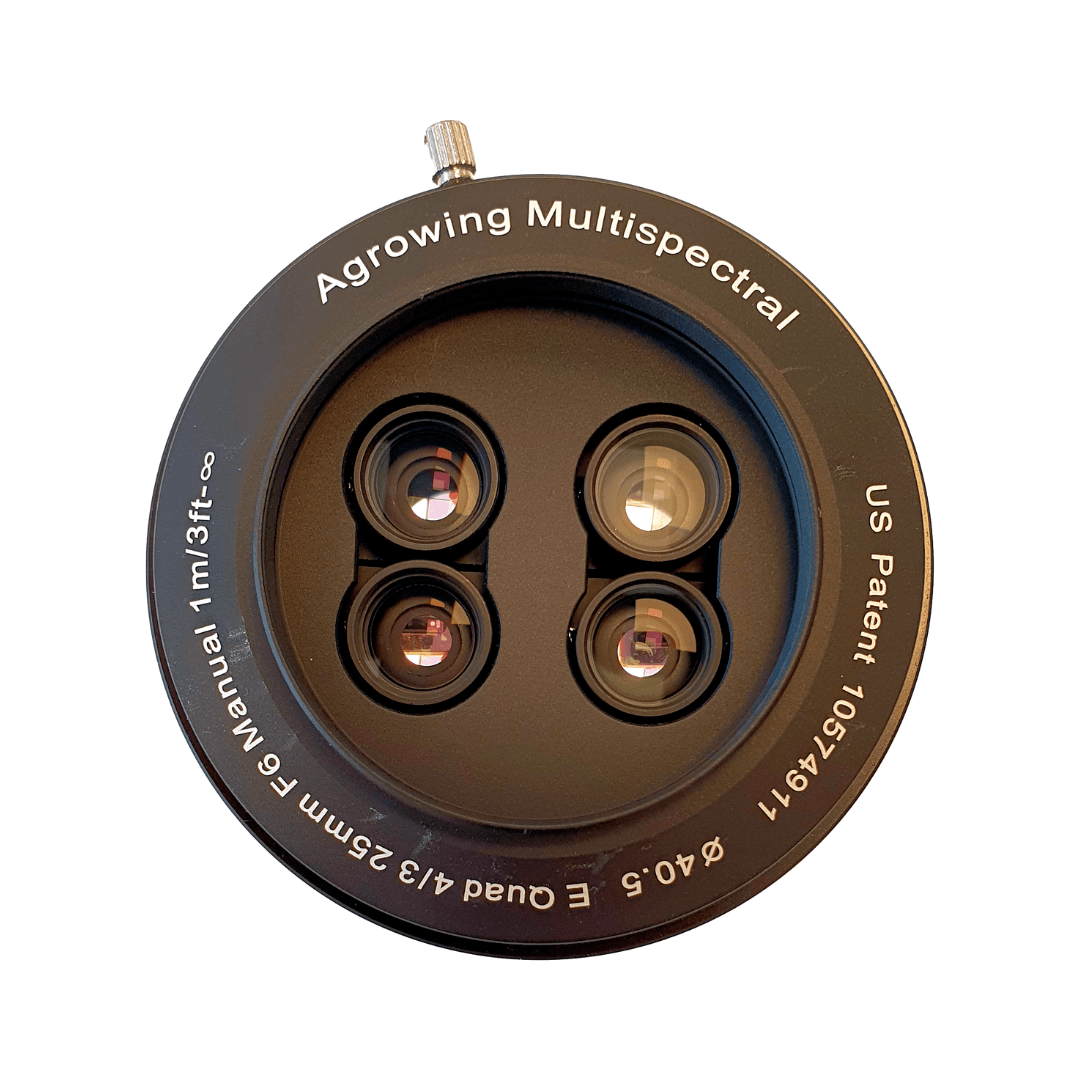

The AGROWING ZV-E10 Quad Lens is a highly affordable imaging solution. It expertly combines RGB and multispectral capabilities. This sensor is designed specifically for the popular APS-C Sony E-Mount cameras. Furthermore, it is based on modified Sony ZV-E10 or Alpha 6xxx bodies. It delivers a $10 Megapixel$ per channel multispectral image. This provides ultra-dynamic range and exceptional detail. The system is perfect for those needing high-quality data on a budget. Consequently, it’s a cost-effective dual-purpose camera.

Key Features

This dual-lens, single-mount system is extremely versatile. It offers both NDVI and Red-Edge configurations. The RGB image resolution is $24 Megapixels$ . The multispectral image resolution is $10 Megapixels$ per band. The AGROWING sensor provides detailed NDVI maps. This enables the early detection of abnormal or outlying areas in your field. This detailed mapping greatly assists precision agriculture. The total sensor weight is remarkably low, $at only$ $540 grams$ with the A6100.

Spectral Capabilities

The AGROWING Dual offers two distinct spectral configurations. The NDVI lens includes four narrow bands: $450, 550, 650, and 850 nm$ . Conversely, the Red-Edge lens utilizes $450, 550, 710, and 850 nm$ . Both configurations use $40 nm$ wide spectral bands. Specifically, the inclusion of the $710 nm$ Red-Edge band is vital for deeper vegetation analysis. Moreover, the ultra-dynamic range imagery allows for sub $0.5 mm$ per pixel detail from $3 m$ altitude.

Specifications

The effective focal length is $25 mm$ . The lens has a fixed $F -stop$ of $6.0$ . Focus is manual, ranging from $2 meters$ to infinity. $The field of view is$ $45.90$ degrees diagonal. $The relative illumination is$ $68%$ . $Lens dimensions are$ $60 mm \times 35.2 mm$ . Additionally, the lens is very light, $weighing$ $144 grams$ . $TV distortion is also kept below$ $1%$ . Therefore, the output images are accurate and geometrically sound.

Advanced Applications

This detailed multispectral imagery supports advanced AI techniques. These techniques allow for the isolation and classification of specific irregularities. For example, it helps identify issues like Blight, Alternaria, and the Colorado Beetle. Therefore, the AGROWING Dual is an invaluable tool for crop health monitoring. It significantly enhances your ability to manage field issues proactively.
