Agrowing ILX-LR1 61MP 25/55mm Quad lens

Name: Agrowing ILX-LR1 61MP 25/55mm Quad lens
SKU: 34443
Price: 1399999.00 INR
Availability: BackOrder

in Agrowing

₹1,399,999.00 excl. GST

On Preorder

₹1,469,998.96 Incl. GST

Features

Lightweight: Total weight of $424 gr$ (camera body + lens), based on modified Sony ILX-LR1.
Optics: Quad lens single mount, $25 mm$ effective focal length, fixed $F 6.0$ .
Spectral Bands: $10$ customized bands (e.g., $405 nm$ , $850 nm$ ) for deep agricultural analysis.
Award-Winning: Recognized as an Innovative Product Press Award Winner.

Warranty
Warranty Upto 1-Year

Delivery
Fast & Free Shipping

Bulk Orders
Contact for Discounts

Compare Wishlist

Check delivery availability:

Category: Cameras Tags: Camera, Payload

Description

Description

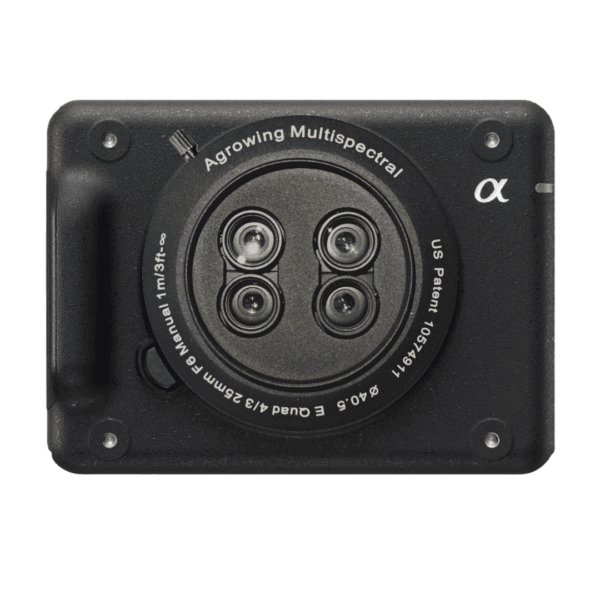

Agrowing’s ILX-LR1 Quad 25mm Multispectral Camera

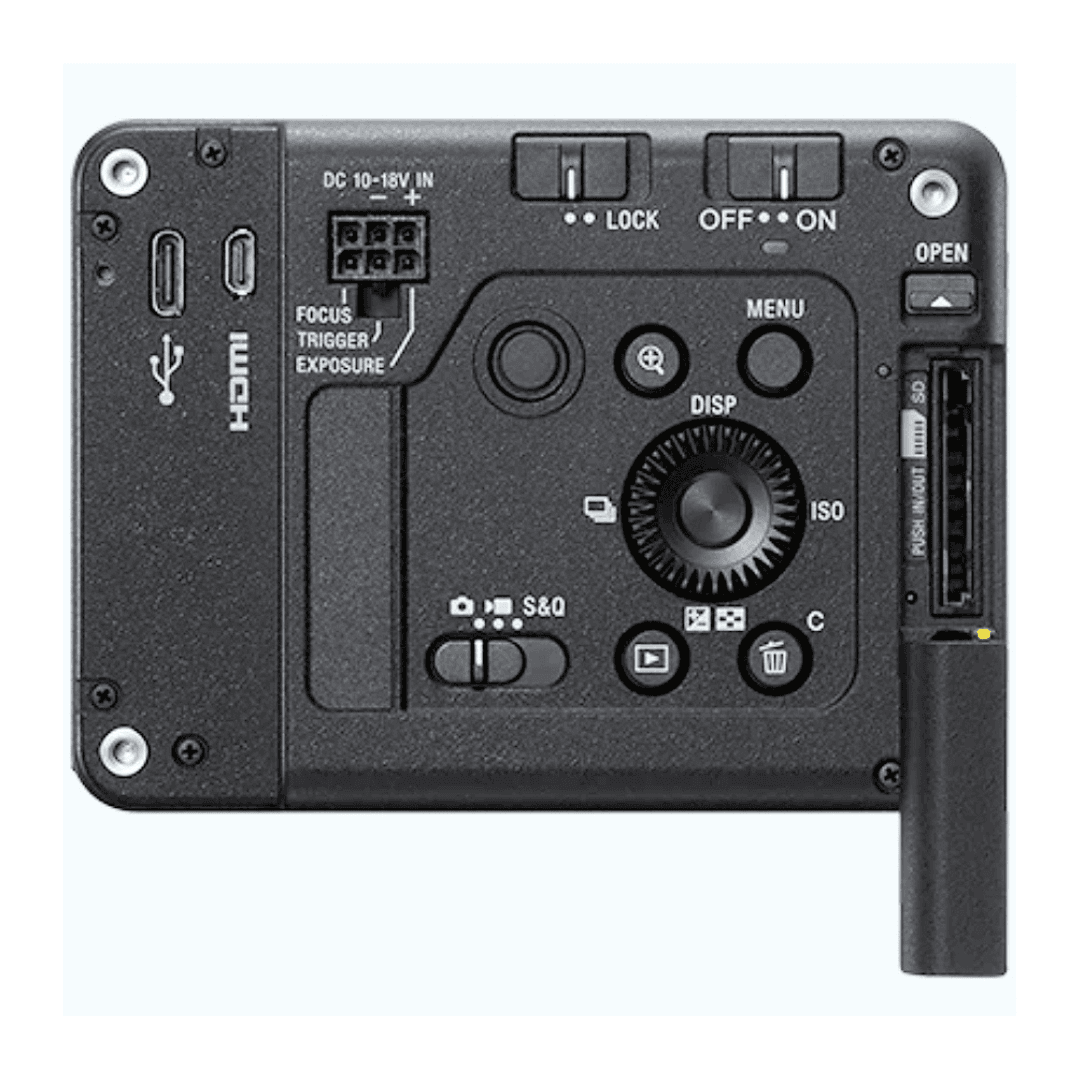

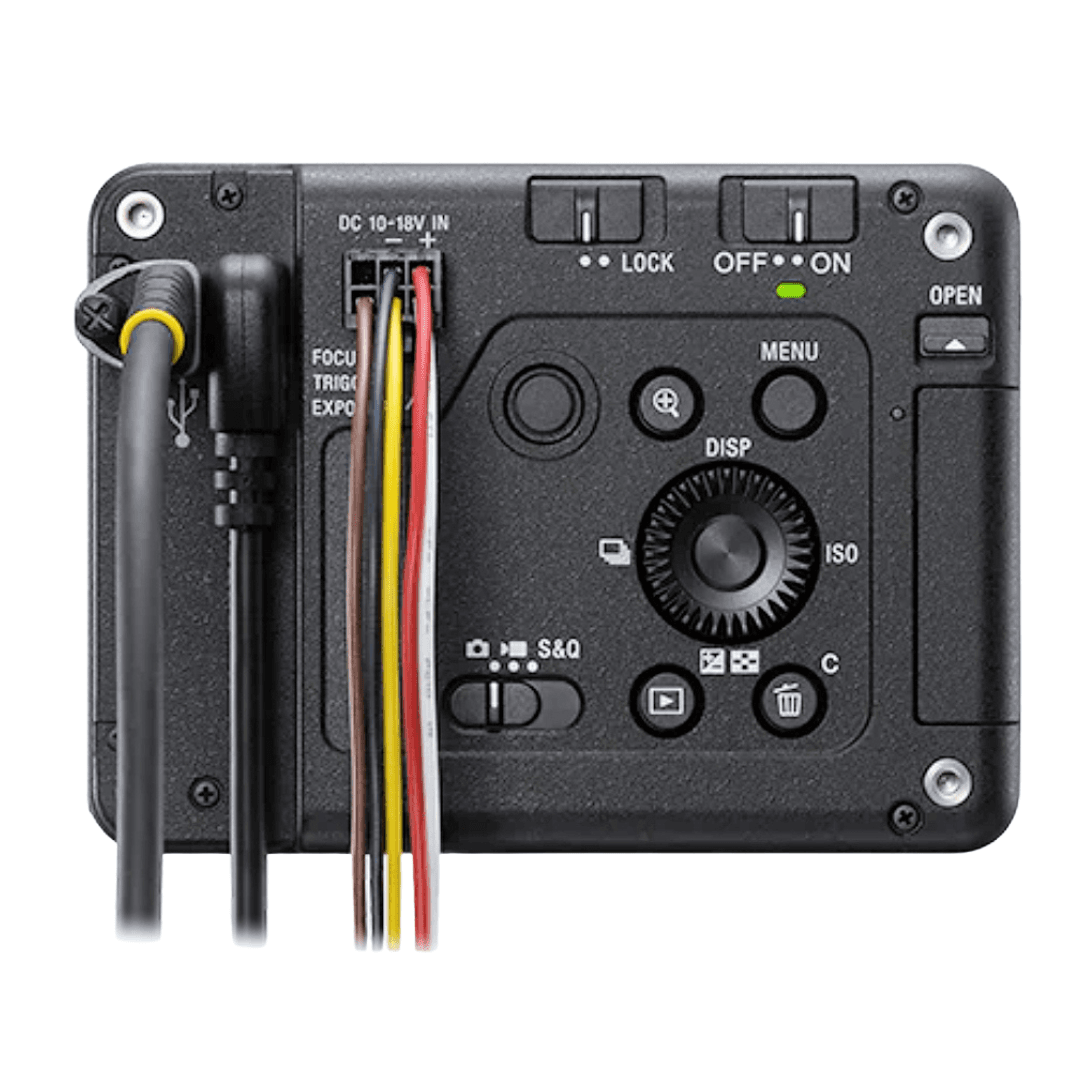

The Agrowing’s ILX-LR1 Quad 25mm (Product Code: ILXLR1025) is a state-of-the-art, dual-purpose mapping solution specifically engineered to be a lightweight payload for Unmanned Aerial Vehicles (UAVs). It combines the capability of a high-resolution RGB camera with advanced multispectral imaging in a single, compact unit. This camera is built upon a modified Sony ILX-LR1 Full-Frame E-Mount base, ensuring professional-grade image quality and robust performance.

Dual-Purpose Imaging Excellence

This camera is designed to offer two distinct, high-quality imaging modes in one lightweight package, making it exceptionally versatile for commercial drone operations:

High-Resolution RGB Mapping: It functions as a single 61 Megapixel (MP) RGB camera, utilizing the full resolution of the Sony sensor for detailed visual mapping and inspection. This mode is activated by using a clip-in IR-Cut filter.
High-Resolution Multispectral: It captures data across 10 Narrow Bands (or 9 Bands + Wide RGB). Each of the multispectral bands provides a high resolution of approximately 12.1 MP ( $4304 \times 2836$ pixels per chroma band), offering 11x the resolution of many competing solutions.

Imaging Mode	Max Resolution	Channels/Bands	Use Case
RGB Mapping	$61 MP$	$3 (RGB)$	Orthophoto generation, visual inspection
Multispectral	$12.1 MP$ per band	$10$	Crop health analysis, soil assessment

Advanced Multispectral Band Specifications

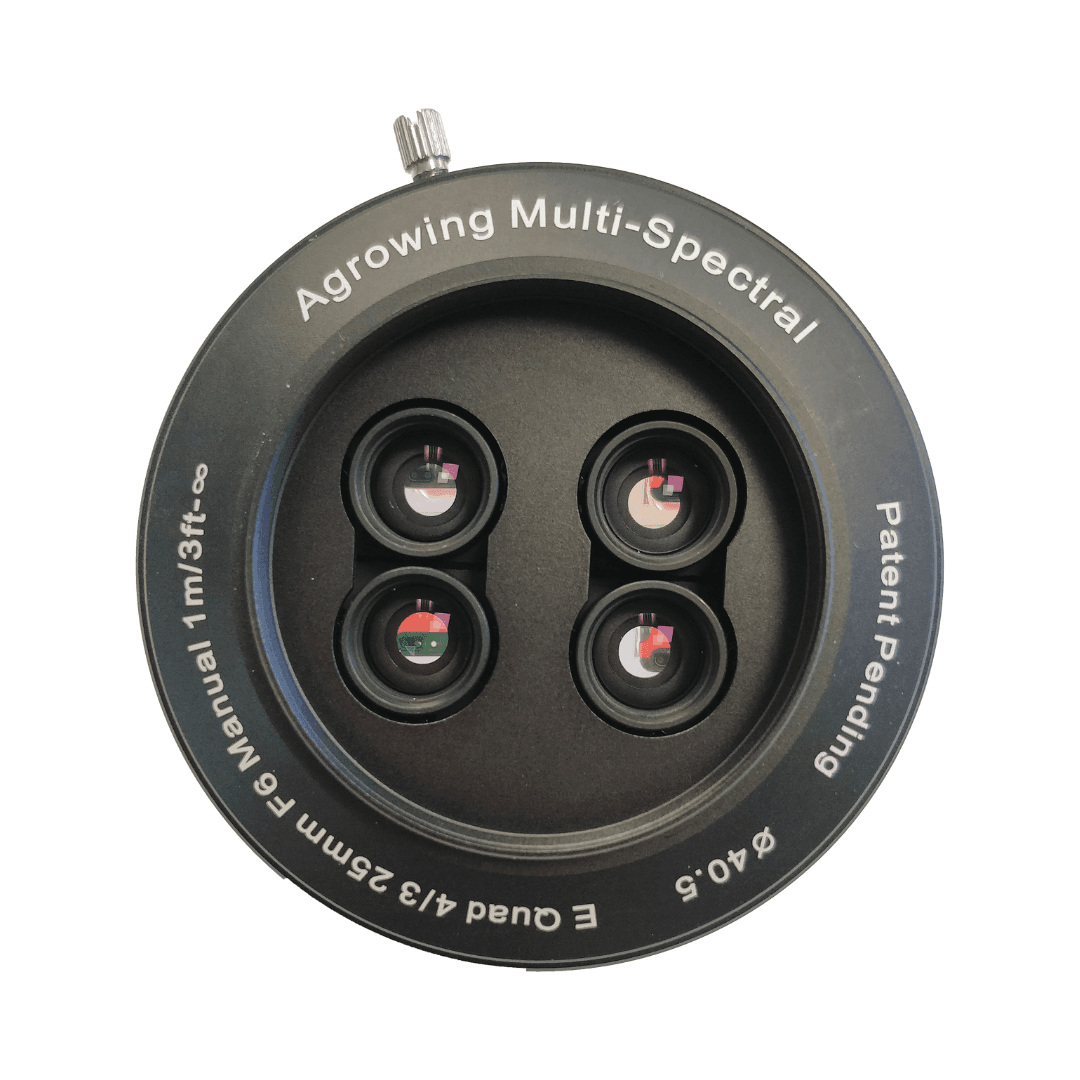

The multispectral capability is achieved using a Quad lens single mount system. The camera’s 10 customized spectral bands are crucial for detailed vegetation indices and analysis, spanning the visible and near-infrared spectrum:

Band Wavelengths ( $\pm 15 nm$ wide)	FWHM
Visible/Blue-Green-Yellow: $405 nm$ , $430 nm$ , $450 nm$ , $550 nm$ , $560 nm$ , $570 nm$	$30 nm$ wide
Red-Near-Infrared (NIR): $650 nm$ , $685 nm$ , $710 nm$ , $850 nm$

Optical and Physical Parameters

The ILX-LR1 Quad 25mm is engineered for minimal weight and maximum optical performance, earning it the Innovative Product Press Award Winner at the Commercial UAV Expo Americas.

Characteristic	Value	Notes
Effective Focal Length	$25 mm$	Optimized for the $55 mm$ High-Altitude Quad configuration (as noted in the prompt).
Aperture ( $F-Stop$ )	$6.0 (fixed)$
Field of View	Diagonal $46. 0^{\circ}$ , Horizontal $40. 7^{\circ}$ , Vertical $27.6 0^{\circ}$
Optical Distortion	$< 1%$	Very low TV distortion for accurate mapping.
Lens Dimension	$64.6 \times 31.5 mm (Ø \times L \times W)$
Total Weight	$424 gr$	$243 gr$ camera body $+ 181 gr$ multispectral lens.
Focus Range	Manual $0.5 m - infinity$
