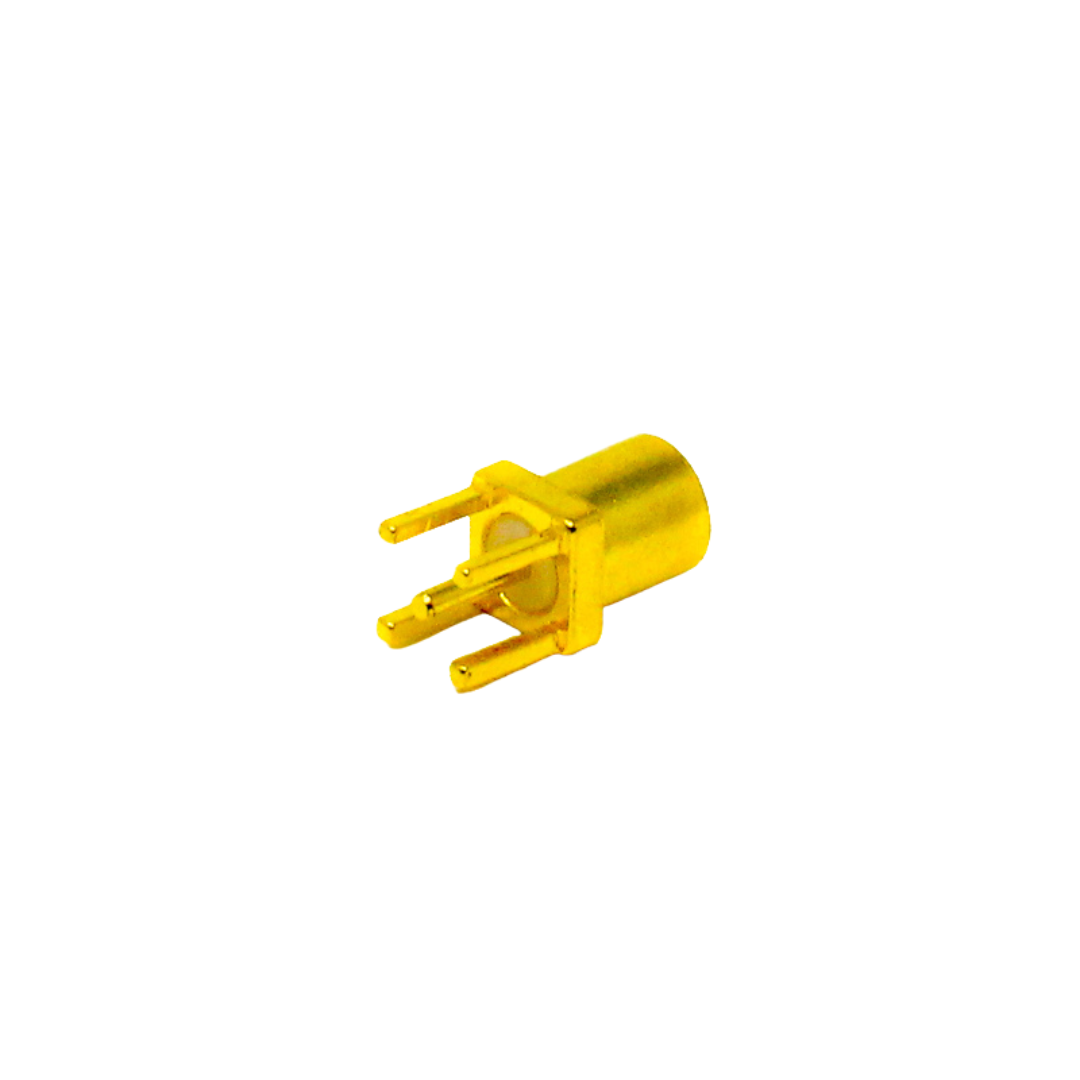

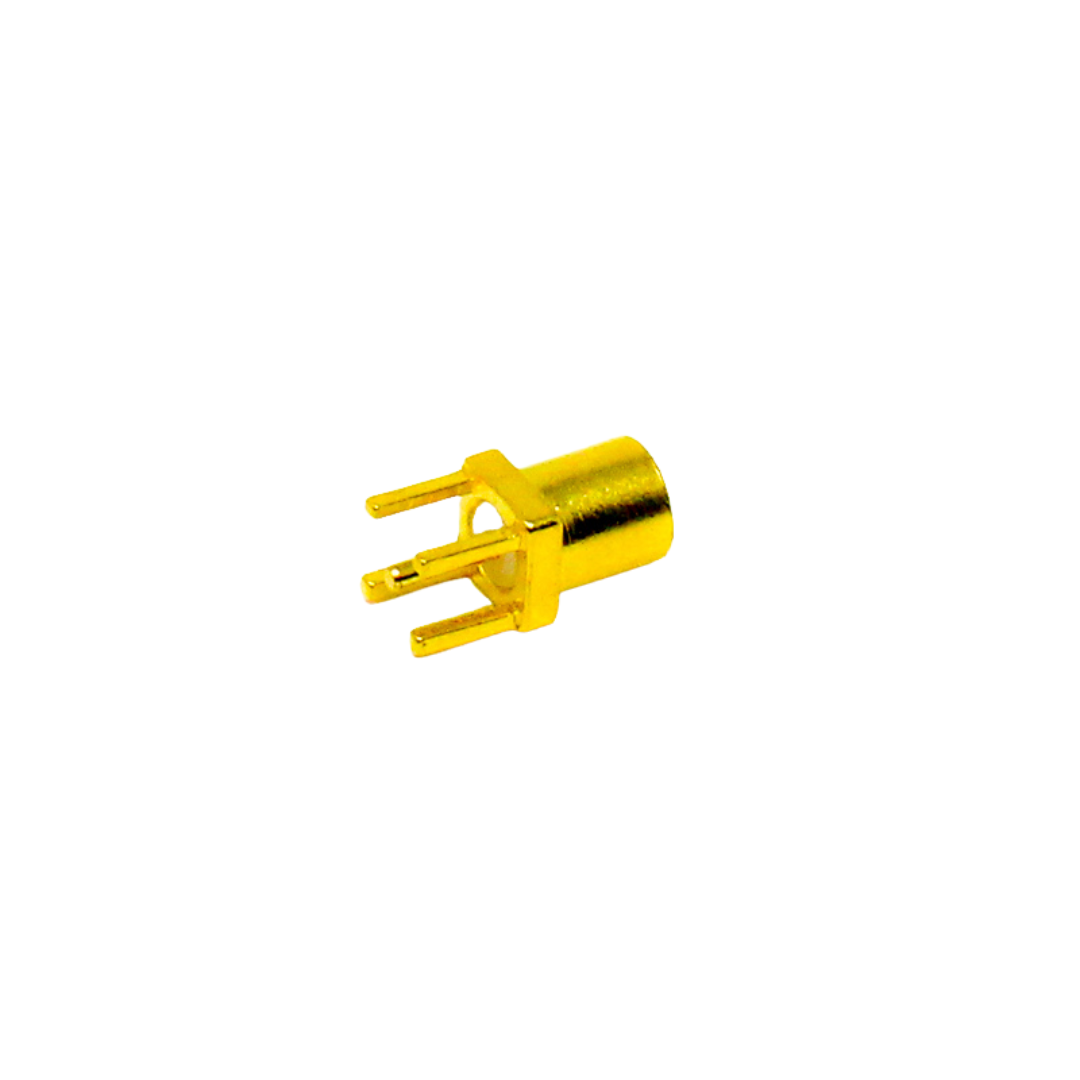

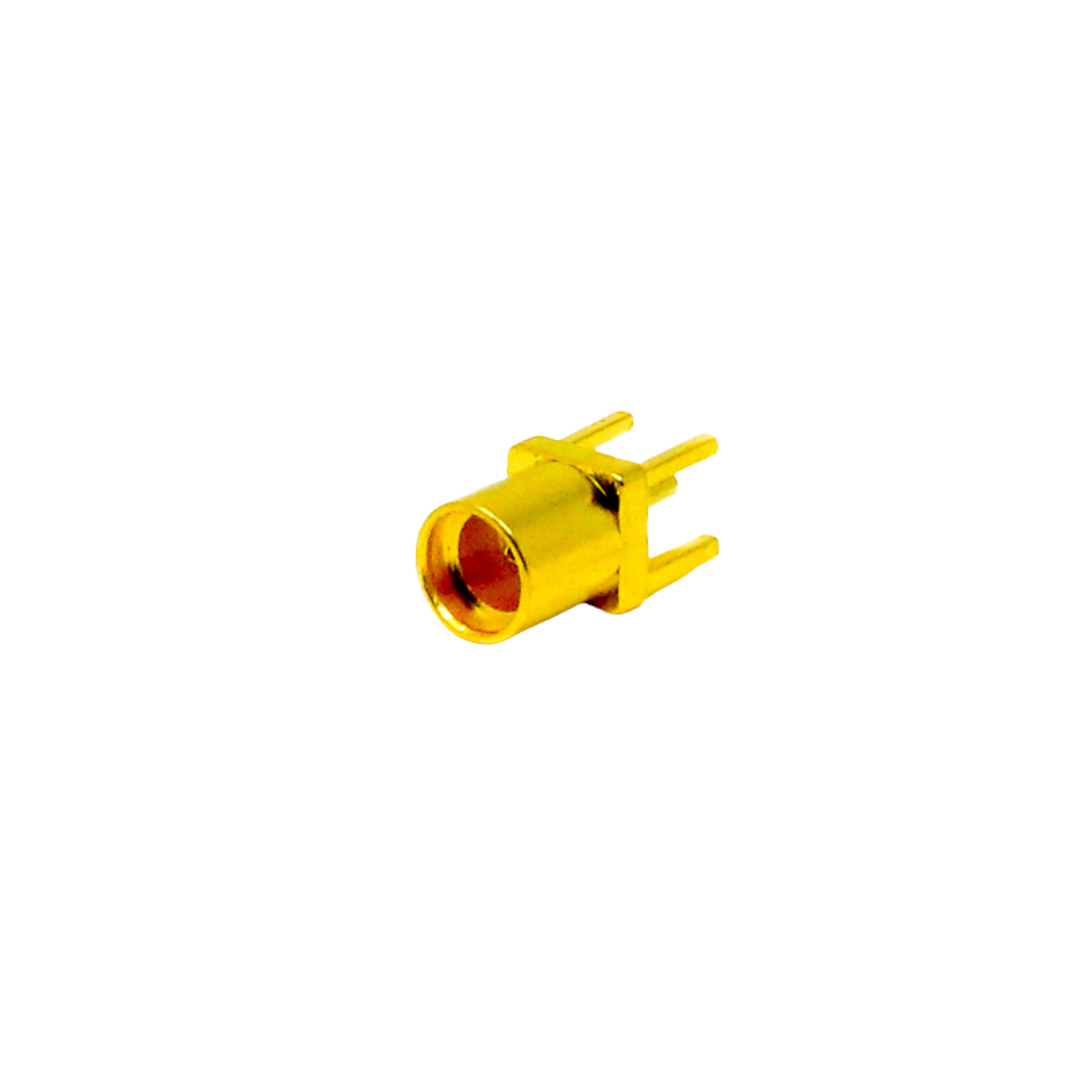

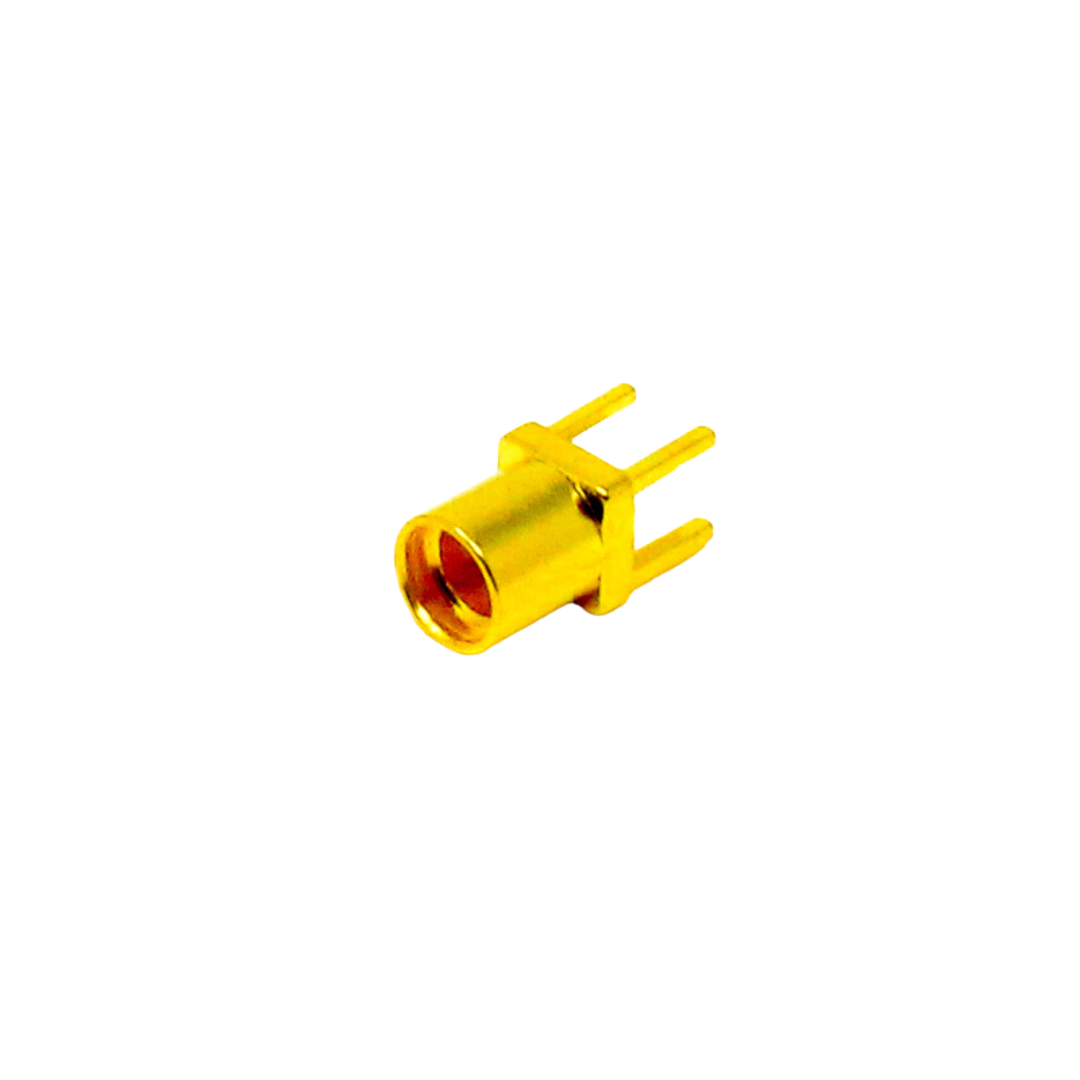

ElecBee MMCX PCB Connector Female Straight Through Hole for Mount

ElecBee MMCX PCB Connector Female Straight Through Hole for Mount

The ElecBee MMCX PCB Connector is a high-performance, micro-miniature RF solution designed for compact electronics. Functioning as a smaller, streamlined version of the MCX series, this female straight through-hole jack is engineered for high-density printed circuit boards where space is at a premium. It features a convenient snap-on interface, allowing for rapid mechanical connection and disconnection without the need for threading. With its reliable 50-ohm impedance and broad frequency range, the ElecBee MMCX PCB Connector is a go-to component for modern GPS, wireless LAN, and high-frequency communication modules.

Features

• Micro-Miniature Design: Offers a significantly smaller footprint than standard MCX connectors while maintaining full electrical performance.

• Snap-On Interface: Ideal for fast production environments, enabling quick, secure installation and tool-free removal.

• Excellent Broadband Stability: Delivers low reflections and high signal integrity across frequencies up to 6 GHz.

• Robust Mechanical Durability: Built with beryllium copper contacts, rated for at least 500 mating cycles without signal degradation.

• Through-Hole Mounting: Provides a mechanically strong physical connection to the PCB, ensuring it stays secure during snap-on/off events.

Key Points

• Fully compliant with industrial standards for vibration and corrosion, making it suitable for field-deployed sensors.

• Features a high-quality gold plating on the body and center contact for maximum conductivity and oxidation resistance.

• The Teflon (PTFE) insulator allows the connector to operate in extreme temperature environments from -65 to +155 degrees Celsius.

• Its low-profile 180-degree straight orientation is perfect for vertical antenna mounts on top-side board layouts.

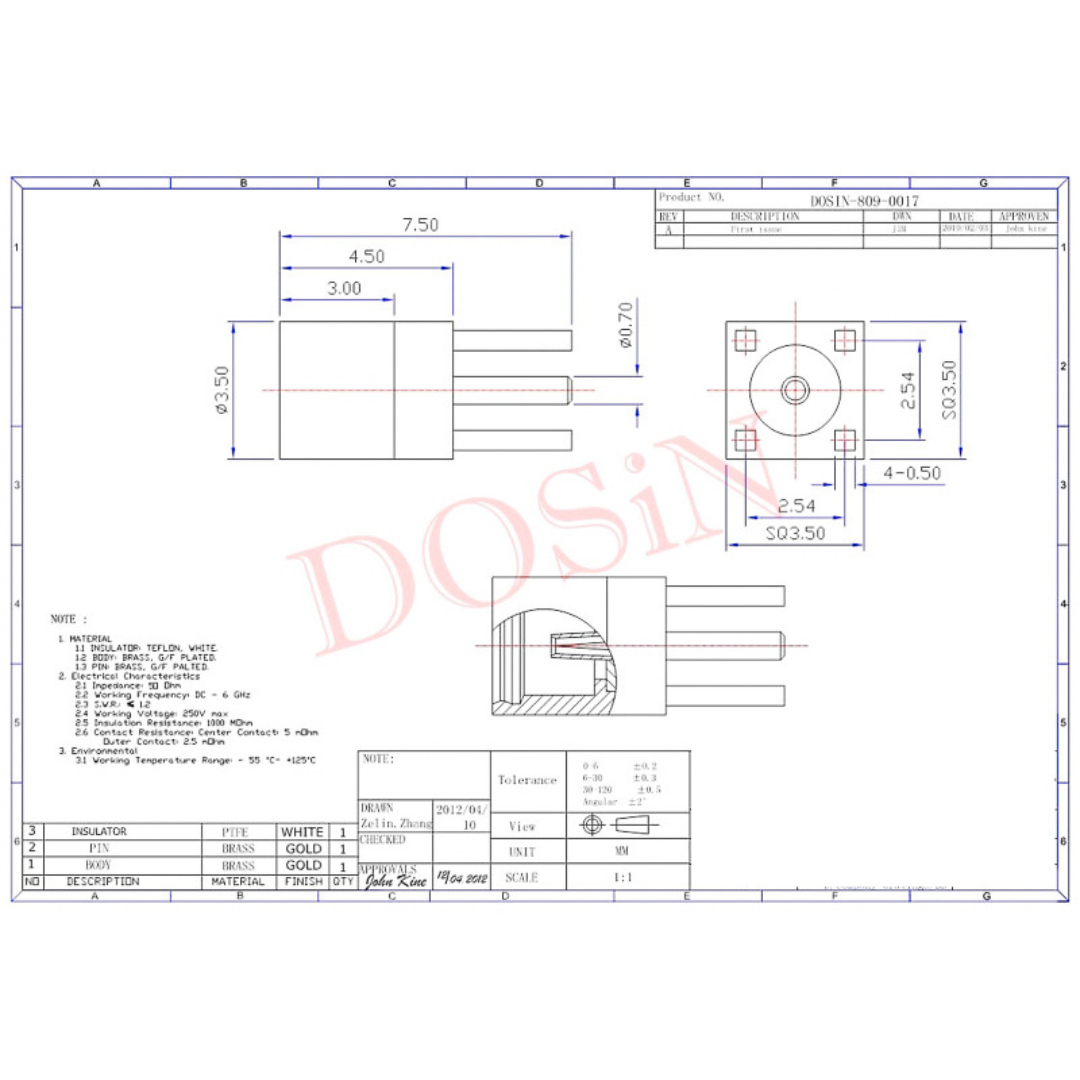

Specifications
