Hobbywing X6 Plus G2 CCW Motor with Prop

Hobbywing X6 Plus G2 CCW Motor with Prop

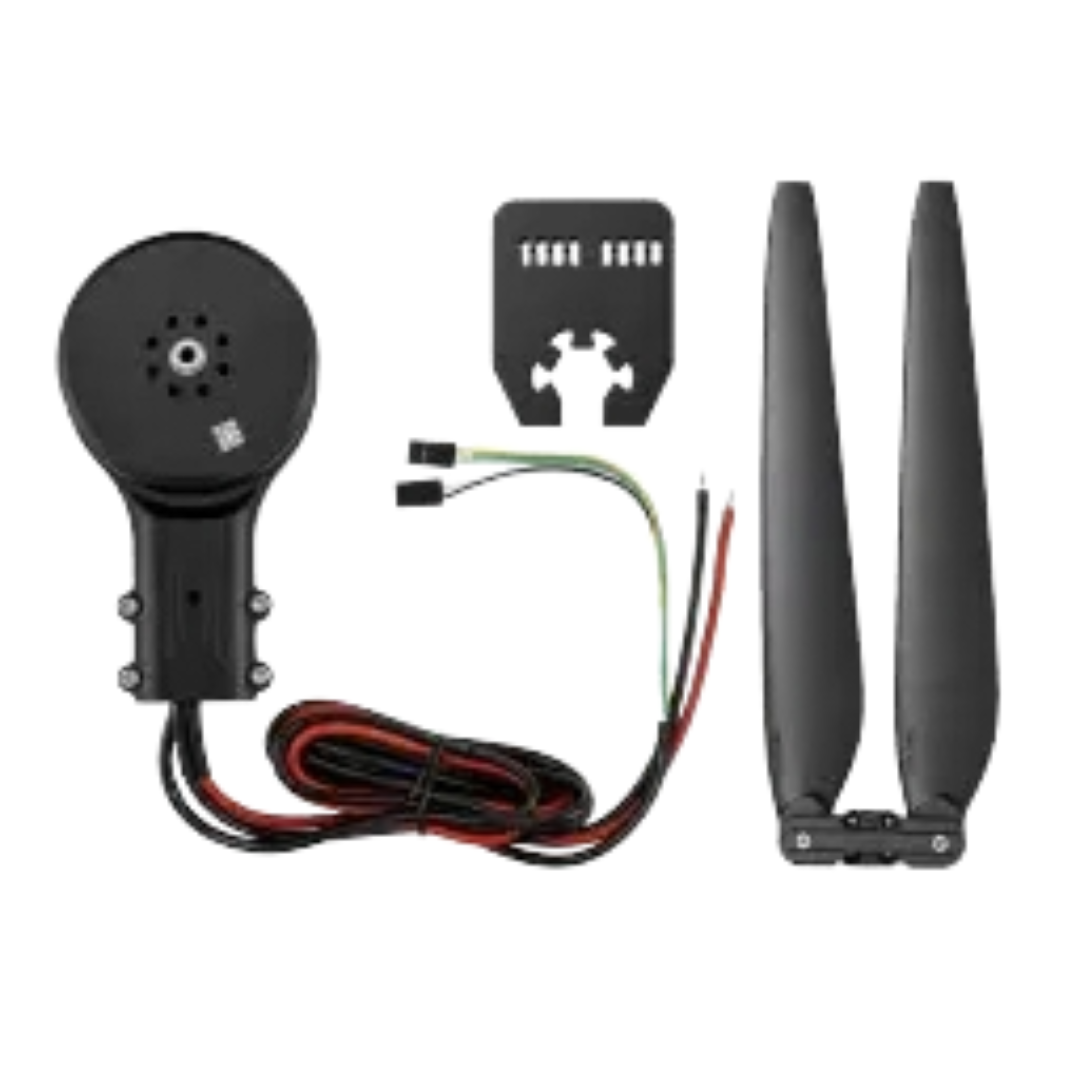

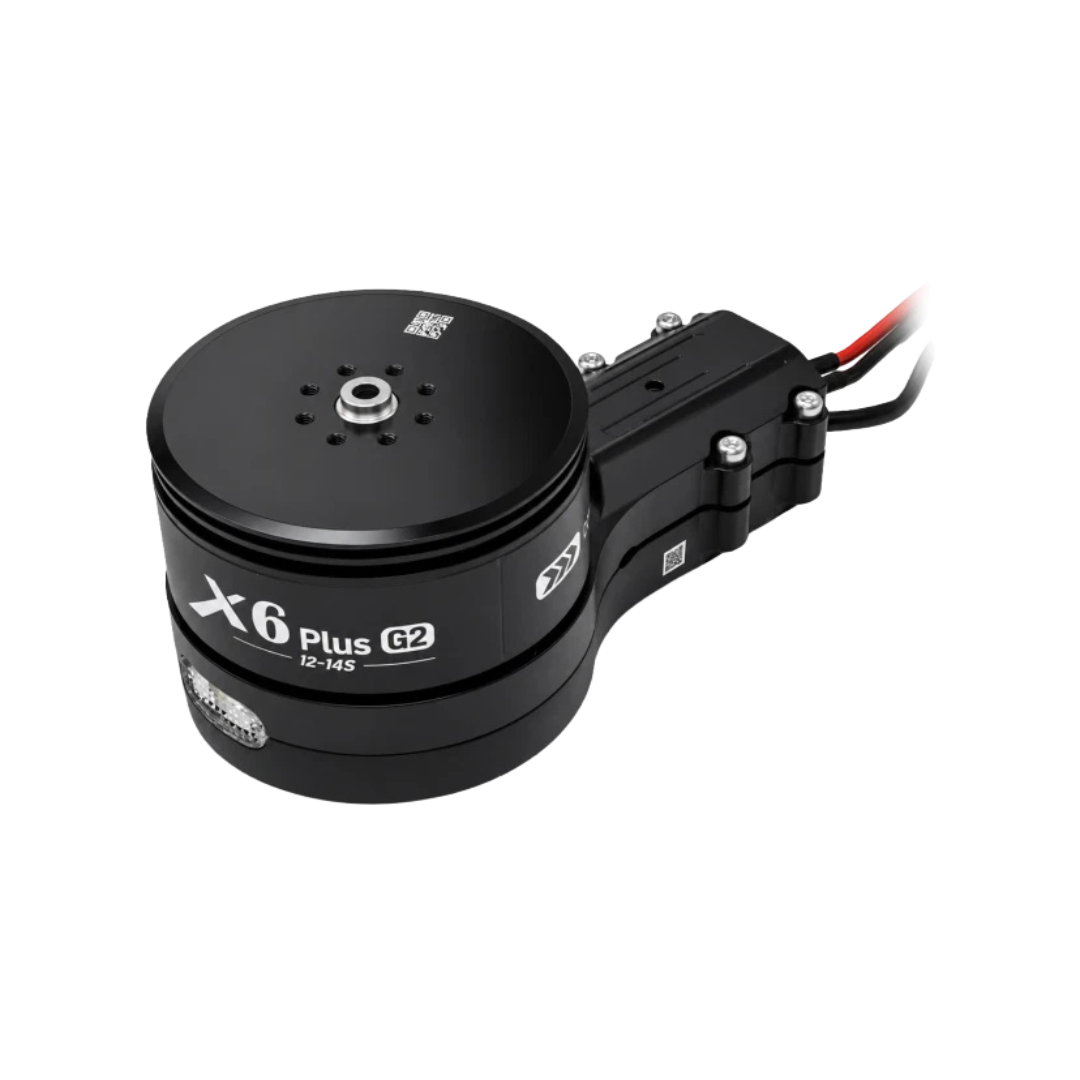

The Hobbywing X6 Plus G2 provides high performance for heavy-lift industrial drones. It combines a powerful 150KV motor, intelligent ESC, and carbon folding propeller into one assembly. Furthermore, this counter-clockwise propulsion unit delivers up to 12.5 kg of thrust per axis. UAV operators experience superior efficiency and continuous system stability during extended field operations. Consequently, your agricultural spraying or mapping platform operates longer on every battery charge.

Key Features

• The Hobbywing X6 Plus G2 features an integrated brushless motor and ESC system.

• It delivers maximum thrust up to 12.5 kg for demanding heavy-lift applications.

• An IPX6 waterproof rating protects internal electronics against harsh weather conditions.

• The system supports both PWM and Cyphal UAVCAN communication protocols seamlessly.

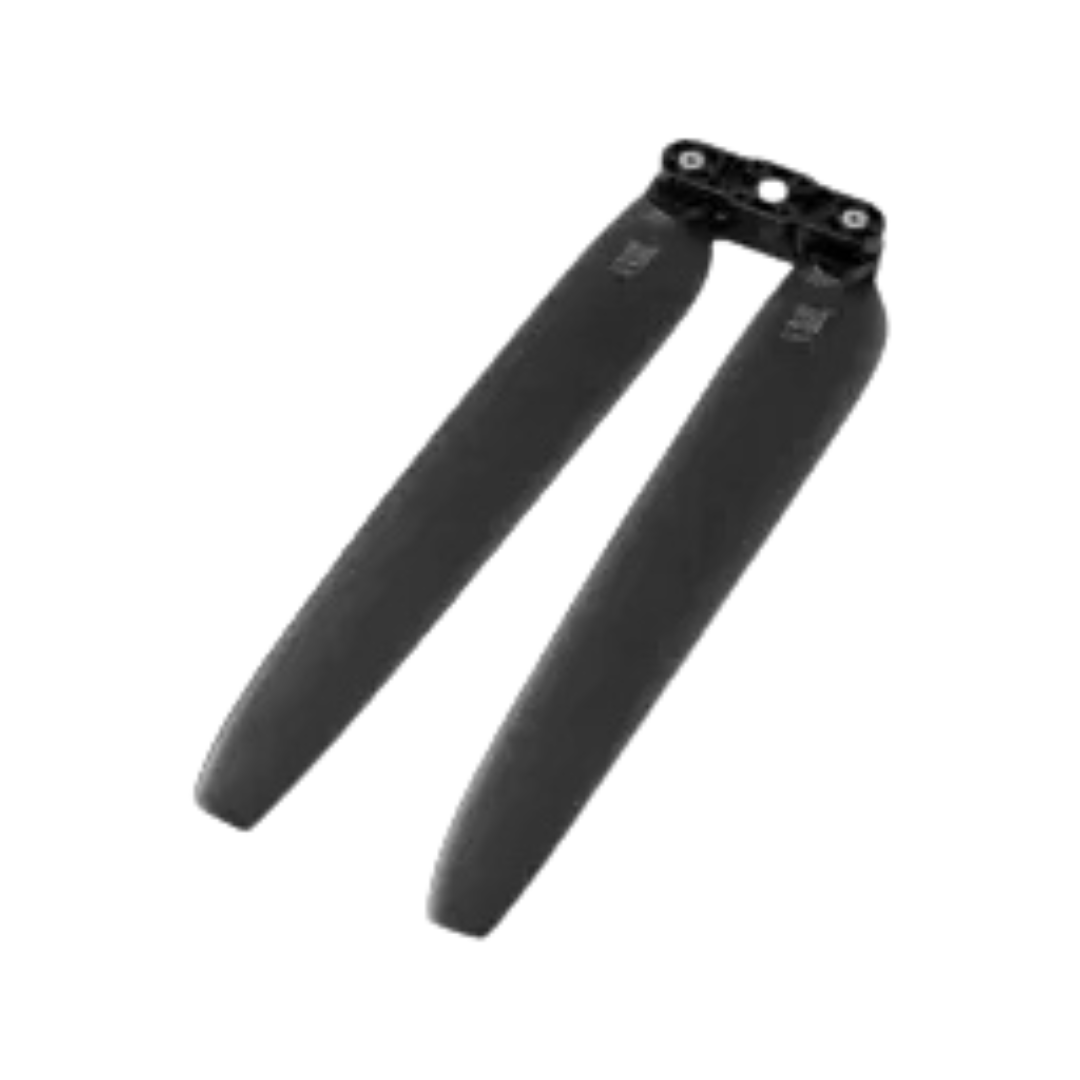

• Carbon fiber composite propellers maximize overall aerodynamic efficiency and durability.

• Built-in fault logging aids proactive routine maintenance and system diagnostics.

Applications

The Hobbywing X6 Plus G2 excels in agricultural plant protection and crop spraying missions. Additionally, commercial aerial mapping and environmental monitoring teams rely on its stable flight output. Industrial inspection platforms benefit from its high takeoff weight capacity and reliability. High efficiency keeps overall operating temperatures low during long missions. Therefore, your aerial platform performs smoothly under heavy payloads.

Integrated Power & ESC Systems

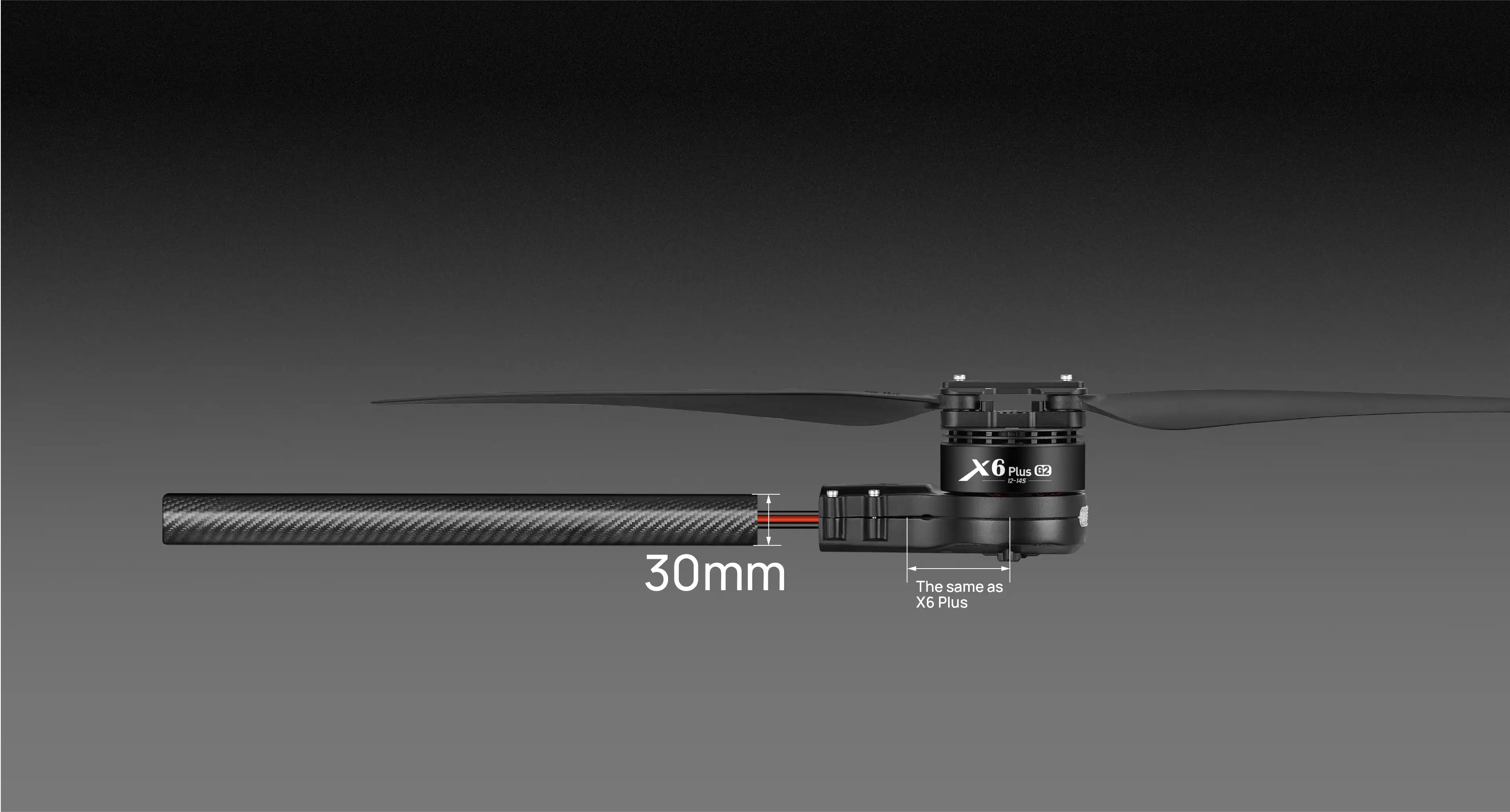

This propulsion kit supports 12S to 14S LiPo battery power sources easily. In addition, the integrated ESC maintains precise throttle control under changing flight conditions. The dual communication option ensures broad flight controller system compatibility. Moreover, high quality materials prevent thermal degradation during high power output demands. The direct tube mounting fits standard 30 mm outer diameter carbon arms.

Specifications

• The propulsion system operates within a voltage range of 18V to 63V DC.

• Recommended takeoff weight equals 6 kg per axis at sea level.

• Continuous output power reaches up to 705W during standard flight operations.

• Operating temperature range spans from minus 20 degrees to 50 degrees Celsius.

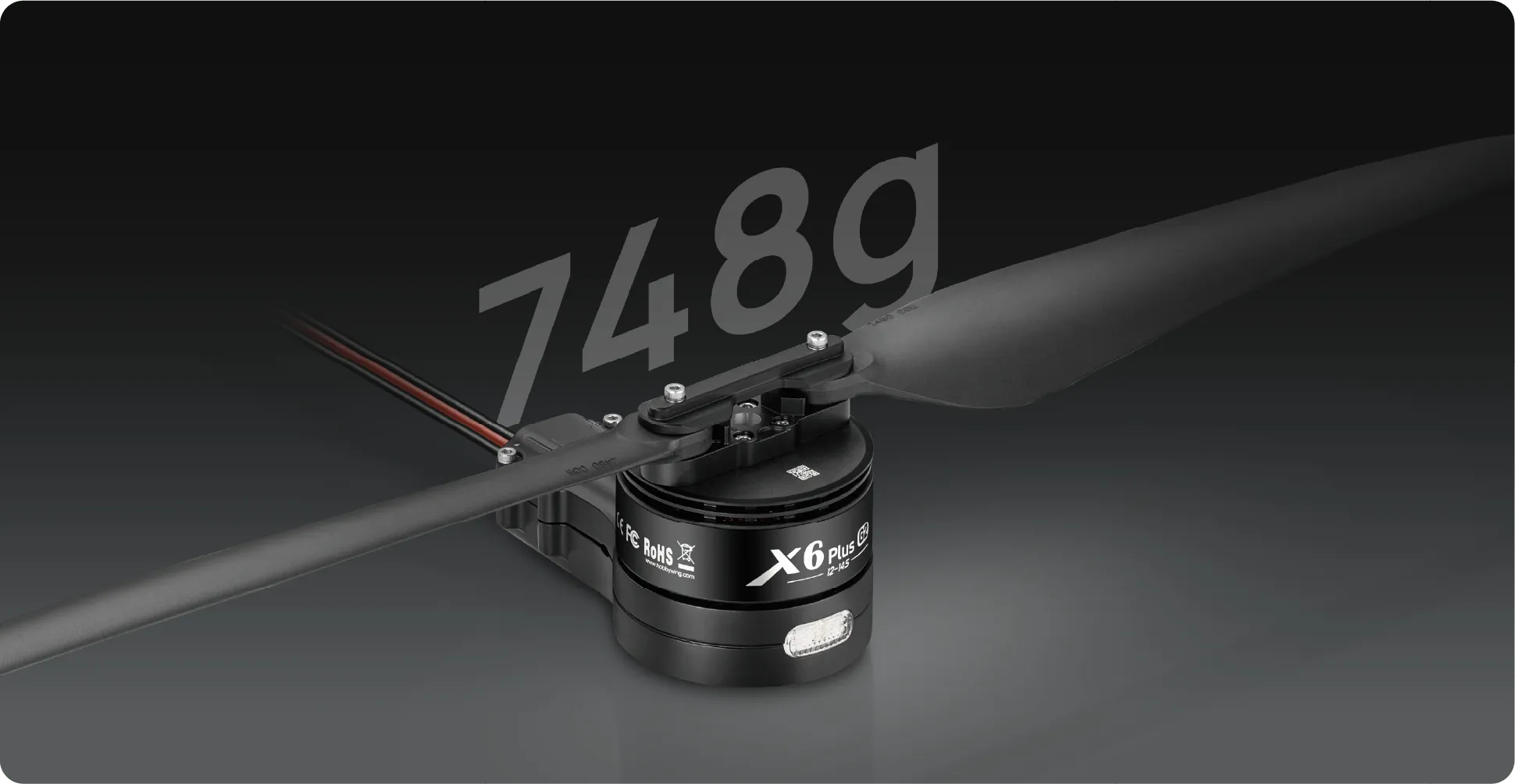

• Total unit weight measures 748 g including propellers and connection cables.

• The motor features a 28N24P stator configuration for high torque delivery.

Upgrade your commercial drone payload with the Hobbywing X6 Plus G2 today.
