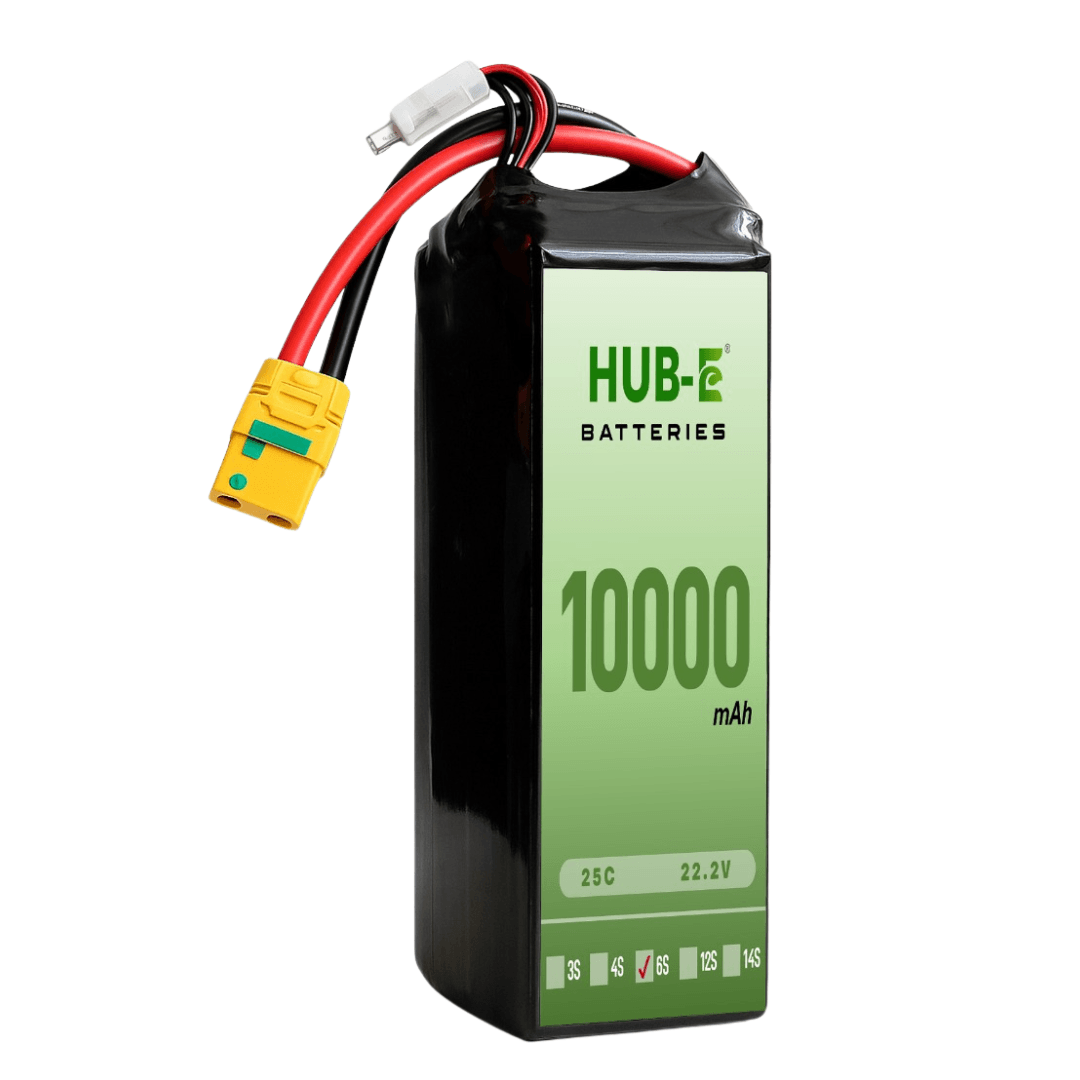

Hub-E 10000mAh-6S1P Lithium Polymer Battery

Hub-E 10000mAh-6S1P Li-Po Drone Battery

Powerful Performance for Agricultural and Industrial UAVs

The Hub-E 10000mAh-6S1P is engineered for high-efficiency agricultural drones and industrial UAV systems that require reliable and consistent power. Delivering 10,000mAh capacity at 23.1V, this 6S1P battery ensures smooth current flow, long-lasting energy, and exceptional performance during heavy-duty flight missions.

Built with advanced Lithium Polymer technology, it provides superior discharge stability, fast charging compatibility, and long-term durability. This makes it ideal for agriculture spraying drones, inspection UAVs, and professional aerial platforms.

High-Capacity and Efficient Output

With a nominal voltage of 23.1V and energy output of 231Wh, the HEBLP10000-6S delivers consistent power even in demanding flight conditions. It supports continuous discharge up to 40C (400A) and burst discharge up to 60C (600A) for 10 seconds, giving drones the torque and responsiveness needed for take-off and load-carrying operations.

Its low internal resistance (≤25mΩ) ensures minimal power loss, while the cycle life of over 500 cycles maintains long-term reliability and cost-effectiveness for regular field operations.

Compact, Lightweight, and Robust

Weighing only 1.2kg and sized at 168 × 61 × 54 mm, this battery provides excellent power-to-weight balance for agricultural drones and inspection UAVs. The 8 AWG or 6 AWG high-temperature silicone wire ensures stable current delivery, while XT90 or AS150 connectors guarantee secure connections even under high current draw.

Its robust construction meets UAV vibration standards and drop-resistance tests, ensuring safe performance in rugged outdoor environments.

Safety and Reliability Built-In

Designed with multiple protection systems, this battery prevents over-charging, over-discharging, and over-current damage. The charging process uses a CC/CV (Constant Current / Constant Voltage) method, optimizing battery life and safety. Tested against vibration, drop, and temperature extremes (-10°C to +60°C), the pack remains reliable under all weather conditions.

Key Specifications

• Nominal Voltage: 23.1V (6S1P)
• Capacity: 10,000mAh
• Discharge Rate: 40C continuous / 60C peak
• Cycle Life: ≥ 500 cycles
• Weight: 1.2kg
• Dimensions: 168 × 61 × 54 mm
• Connectors: XT90 / AS150
• Operating Temp: -10°C to +60°C
• Storage Temp: 0°C to +45°C

Ideal For

• Agricultural spraying drones (5–10L capacity)
• Industrial and mapping UAVs
• High-efficiency power systems
• Inspection and surveillance drones
• Custom drone projects
