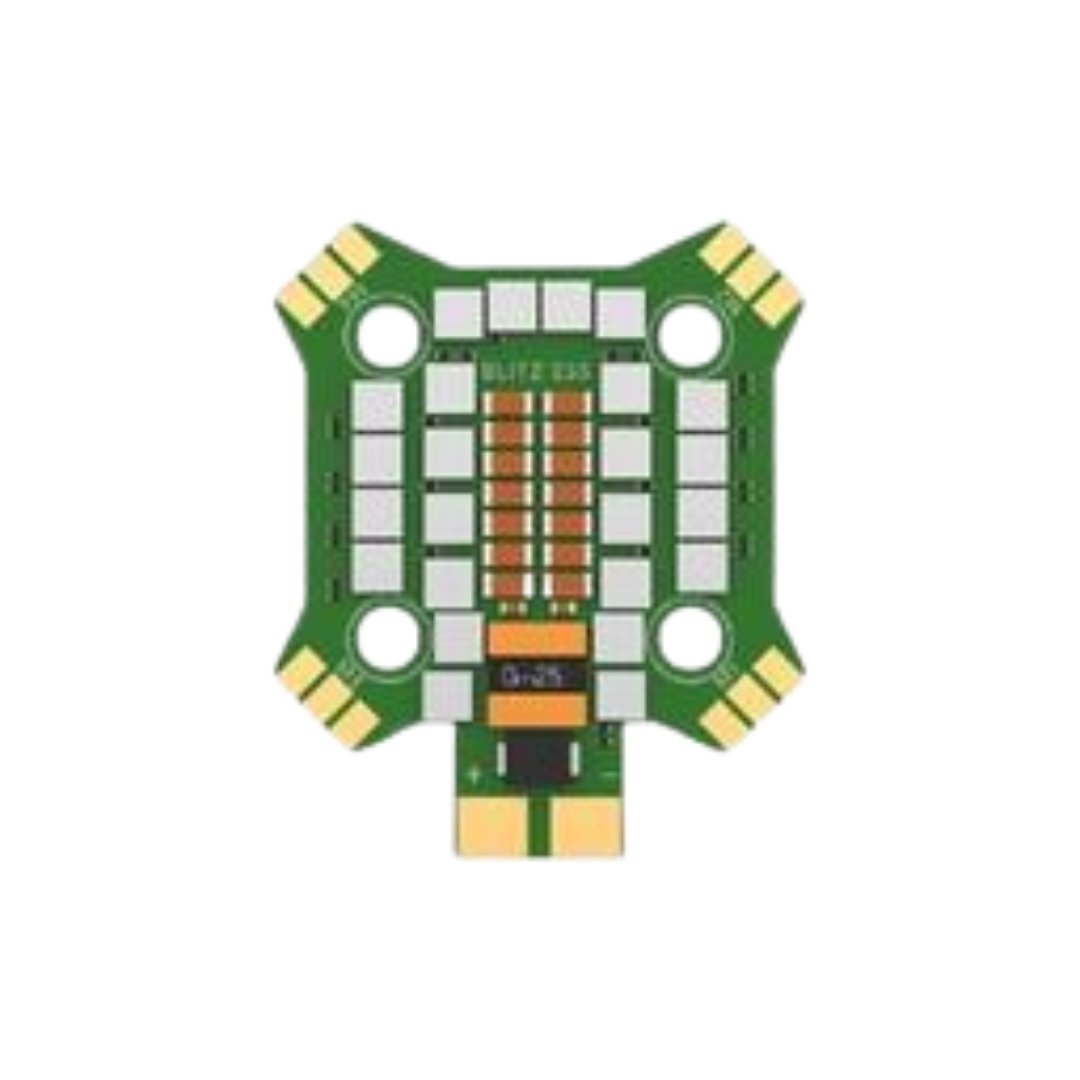

iFlight Blitz Mini E55 4 in 1 ESC

iFlight Blitz Mini E55 4 in 1 ESC

The iFlight Blitz Mini E55 4 in 1 ESC is a next-generation electronic speed controller engineered to deliver massive power within a highly compact form factor. Trusted by professional pilots, this high-performance ESC comes pre-installed in iFlight’s flagship Bind-and-Fly (BNF) aircraft, including the Nazgul F5 and F6 series. Built around a 20 x 20 mm micro-mounting layout, it pumps out a continuous 55A across four independent channels. Backed by the advanced G071 processing unit and premium BLHeli_32 architecture, this hardware easily handles amp-hungry motors on 2S to 6S LiPo battery arrays, making it ideal for aggressive freestyle maneuvers and high-speed racing tracks.

Key Features

• Massive Current Delivery: Delivers a continuous 55A per channel with a robust short-duration burst tolerance up to 60A.

• Advanced G071 MCU processing: High-speed 32-bit controller ensures ultra-smooth motor tracking and crisp throttle recovery.

• Premium BLHeli_32 Firmware: Grants deep customization over motor timing, PWM frequencies, and telemetry mapping.

• High-Definition Digital Protocol Suite: Supports modern ultra-low-latency protocols including DShot150, DShot300, and DShot600.

• Real-Time Onboard Current Sensor: High-precision sensor tracks battery amp draw instantly to protect components and manage flight time.

• Compact Micro-Stack Architecture: Features a standardized 20 x 20 mm mounting pattern to save space in tight racing drone cages.

• Versatile Voltage Inputs: Runs smoothly on voltage configurations ranging from 2S up to high-voltage 6S LiPo packs.

• Heavy-Duty Filtering Capacitors: Onboard multi-layer ceramic capacitors reduce electrical noise to provide a clean video signal feed.

Applications

FPV custom builders install the iFlight Blitz Mini E55 4 in 1 ESC into premium 3-inch cinewhoops, high-speed 5-inch freestyle setups, and 6-inch long-range mountain cruisers where interior stack space is highly limited. Its incredible current-handling overhead makes it a reliable asset for commercial cinematic tracking drones that carry action cameras and push high-KV power plants to their absolute limits. It is also an excellent drop-in replacement part for maintaining or upgrading the electronic components inside factory-built iFlight Nazgul multirotors.

Thermal Management and Electrical Safety

When managing extreme current output in miniature sub-frames, handling heat dispersion is critical to component safety. The BLITZ Mini E55 addresses this by utilizing thick, premium copper pathways inside its multi-layer circuit board to distribute heat evenly away from vital components. Additionally, the pre-installed aluminum heat sink shield protects the delicate internal transistors against physical prop strikes and debris impact. To ensure optimal performance and eliminate dangerous voltage spikes during rapid braking maneuvers, it is highly recommended to solder a low-ESR capacitor directly across the primary power lines.
