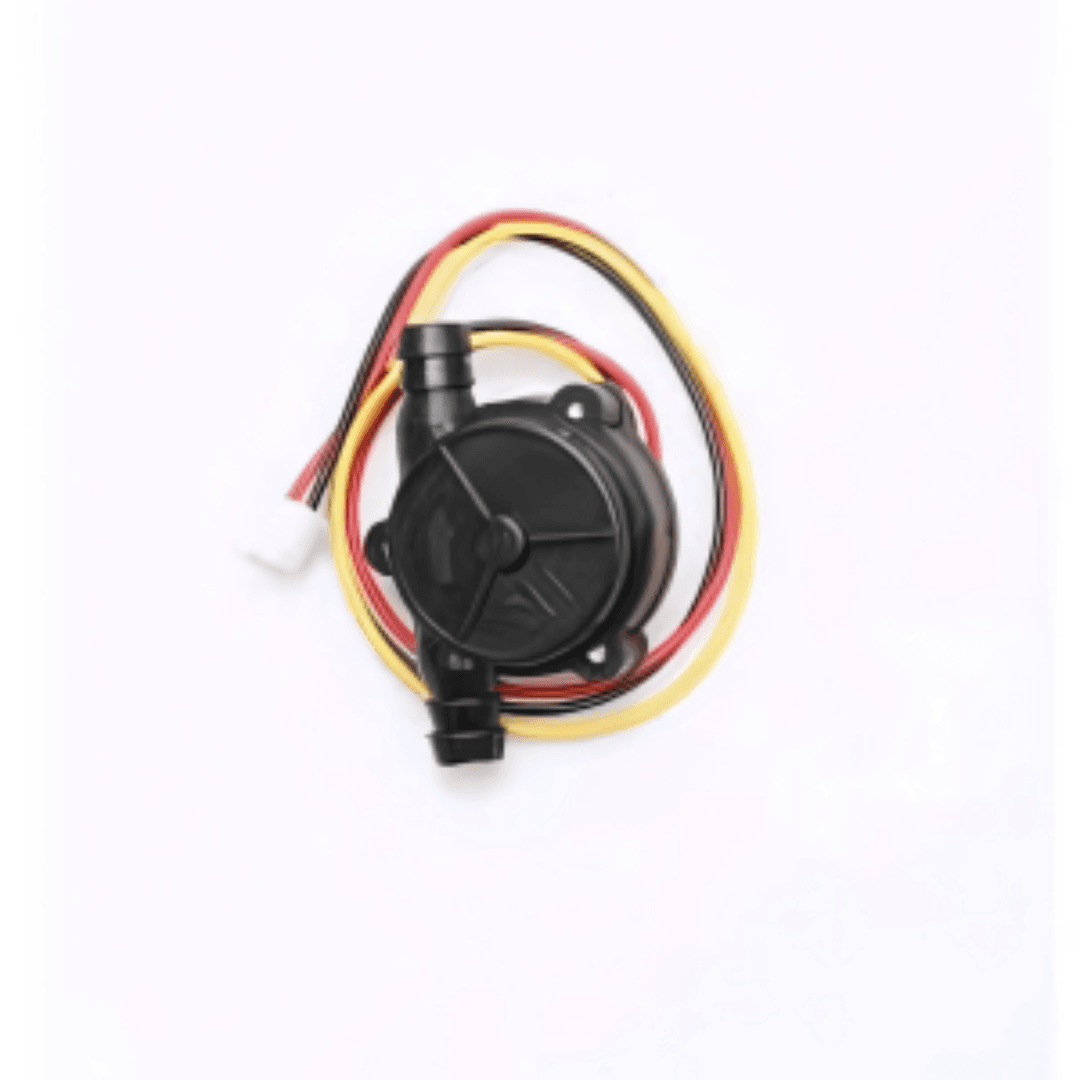

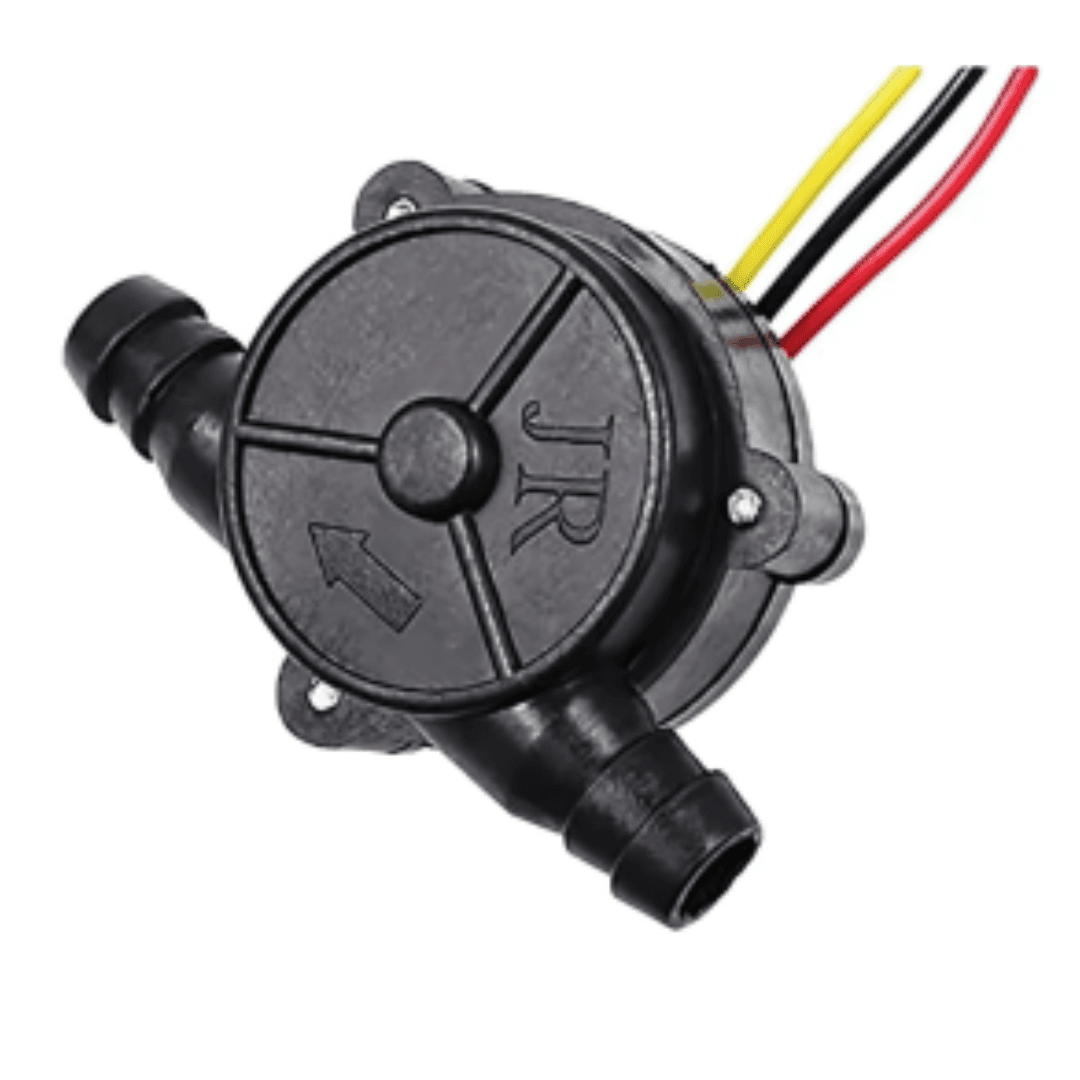

Jiyi Water Flow Sensor for Agriculture Drone

JIYI Water Flow Sensor – Accurate Liquid Flow Measurement for Agricultural Drones

Reliable Flow Monitoring for Precision Applications

The JIYI Water Flow Sensor is designed to accurately measure the flow rate of liquids in pipelines, making it an essential tool for agriculture drones, irrigation systems, and industrial liquid management. It delivers real-time flow data to ensure efficient use of resources, helping operators monitor spraying operations with confidence.

Durable and Versatile Design

Built to withstand water pressure up to 0.35 MPa without deformation or leaks, this sensor is ideal for long-term agricultural and industrial use. It operates with water and water-based solutions at temperatures up to 60°C, ensuring stable performance in varying field conditions.

Accurate Flow Range and Electrical Performance

The JIYI Water Flow Sensor measures flow rates between 0.2–6 L/min and operates within a voltage range of DC 4.5–18V with a maximum current of only 10 mA. The output pulse signal provides consistent data, though calibration is recommended for applications requiring greater than 10% precision.

Field-Proven Reliability

Engineered for outdoor drone applications, the sensor maintains accuracy after prolonged exposure to cold (-20°C) or heat (+80°C). Its insulating properties and robust electrical strength ensure safe and reliable performance in challenging environments.

Technical Specifications

• Flow Range: 0.2 – 6 L/min

• Working Medium: Water and water-based solutions

• Operating Voltage: DC 4.5 – 18V

• Max Operating Current: 10 mA

• Water Pressure Resistance: Up to 0.35 MPa

• Temperature Range: ≤ 60°C operating, tested to -20°C and +80°C

• Output Signal: Pulse signal, duty ratio 50% ± 10%

• Flow Pulse Formula: F = 25 × Q ± 10%

• Electrical Strength: AC500V 50Hz

• Insulation Resistance: > 100 MΩ

• Connections: Red (+), Black (-), Yellow (Pulse Signal)

Package Includes

• 1 × JIYI Water Flow Sensor for Agriculture Drone
