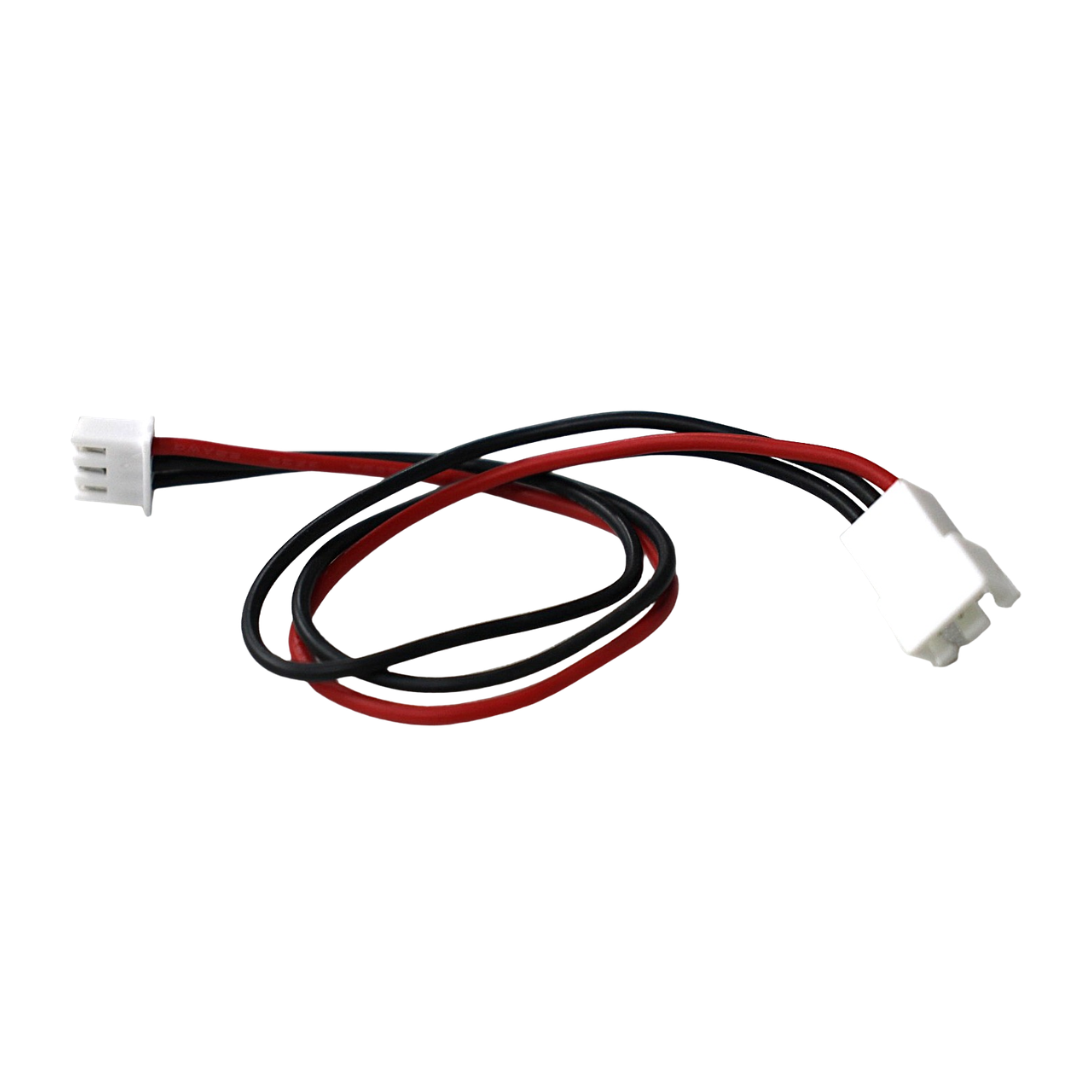

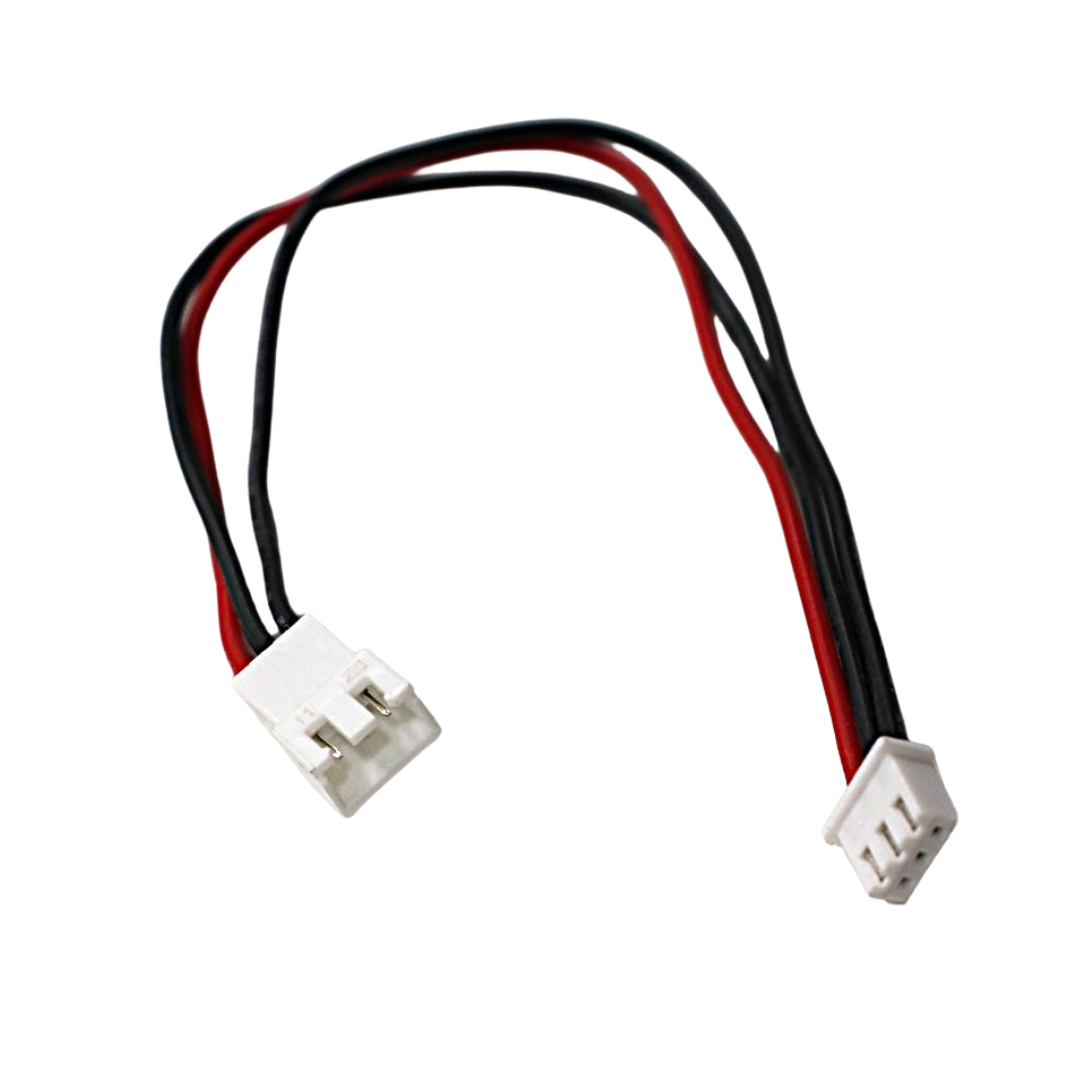

JST-XH 2S 20CM 22AWG Balance Charge Wire

JST-XH 2S 20CM 22AWG Balance Charge Wire

The JST-XH 2S 20CM Balance Charge Wire is a critical safety and convenience accessory for users of 2-cell (7.4V) Lithium Polymer (LiPo) batteries. Many high-capacity batteries come with extremely short balance leads that make it difficult to reach a charger, especially when the battery is tucked inside a fireproof LiPo safety bag. This 20cm extension provides the necessary reach while maintaining a high-quality electrical connection, ensuring your charger can accurately monitor and equalize the voltage of each individual cell during the charging process.

Features

• Silicon Wire Insulation: Built with 22AWG silicone-jacketed wire, which is highly flexible and resistant to high temperatures and soldering iron heat.

• Separated Insulation: Each pin is protected by individual heat shrink or deep-seated housing to prevent accidental short circuits between cells.

• Standard JST-XH Interface: Features the industry-standard 2.54mm pitch connector compatible with nearly all modern balance chargers (B6, HOTA, ISDT, etc.).

• Universal RC Compatibility: An essential upgrade for RC cars, drones, and aircraft where battery placement is far from the charging port.

Key Points

• 2S Configuration: The connector has 3 pins; one red wire (positive) and two black wires (negative/center tap) to monitor two battery cells.

• Safety First: Using a balance extension allows you to keep batteries safely inside a “LiPo Bag” while the charger sits securely on a workbench.

• High Conductivity: Uses tin-plated copper internals to minimize resistance and ensure accurate voltage readings by the charger’s logic.

• Durability: Rated for over 500 mating cycles, providing a long-lasting connection for daily charging routines.

Specifications
