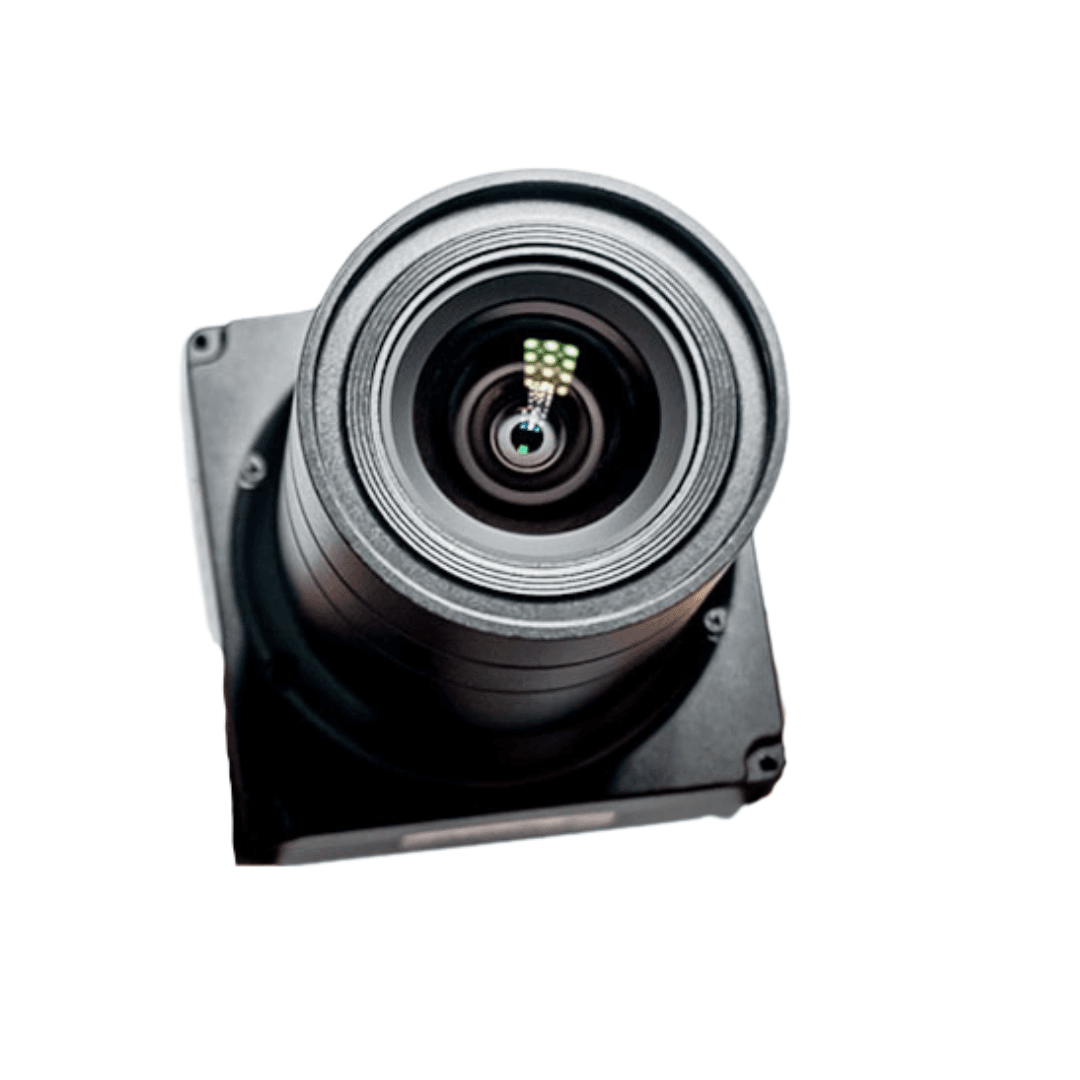

The R2 Full-Frame Mapping Camera is designed for professional aerial mapping and photogrammetry. With its 26MP sensor and full-frame optics, it captures high-quality images with sharp detail. Its lightweight 240g build and compact dimensions ensure smooth integration with a wide range of UAV platforms.

Fast and Reliable Imaging

Featuring a 0.5s exposure interval and shutter speed range of 1/100–1/2000s, the R2 enables quick image acquisition for large-scale surveys. Its 50μs exposure feedback accuracy ensures precise timing for consistent results in aerial triangulation and 3D modeling.

Ample Storage and Data Management

Equipped with dual 128GB memory cards, the R2 provides ample storage for long missions. Data transfer is supported through TF card or USB, while operators can conveniently adjust parameters using USB or serial port interfaces.

Advanced Optics for Versatile Applications

The R2 offers interchangeable focal lengths of 16mm, 25mm, 30mm, and 35mm, designed with high-quality lens structures for minimal distortion. With a 72.59° horizontal FOV and 51.98° vertical FOV, it delivers wide coverage and exceptional clarity, making it ideal for surveying, GIS, and inspection tasks.

Built for Harsh Environments

With an operating temperature range of -20℃ to 65℃, the R2 is built for challenging outdoor conditions. It supports multiple mounting modes, including downward hanging and upward lifting, with damping ball shock absorption for stable operation. Power input of 12V–27V DC ensures flexible compatibility with UAV power systems, while trigger options include low level, USB, and serial port for seamless integration.
