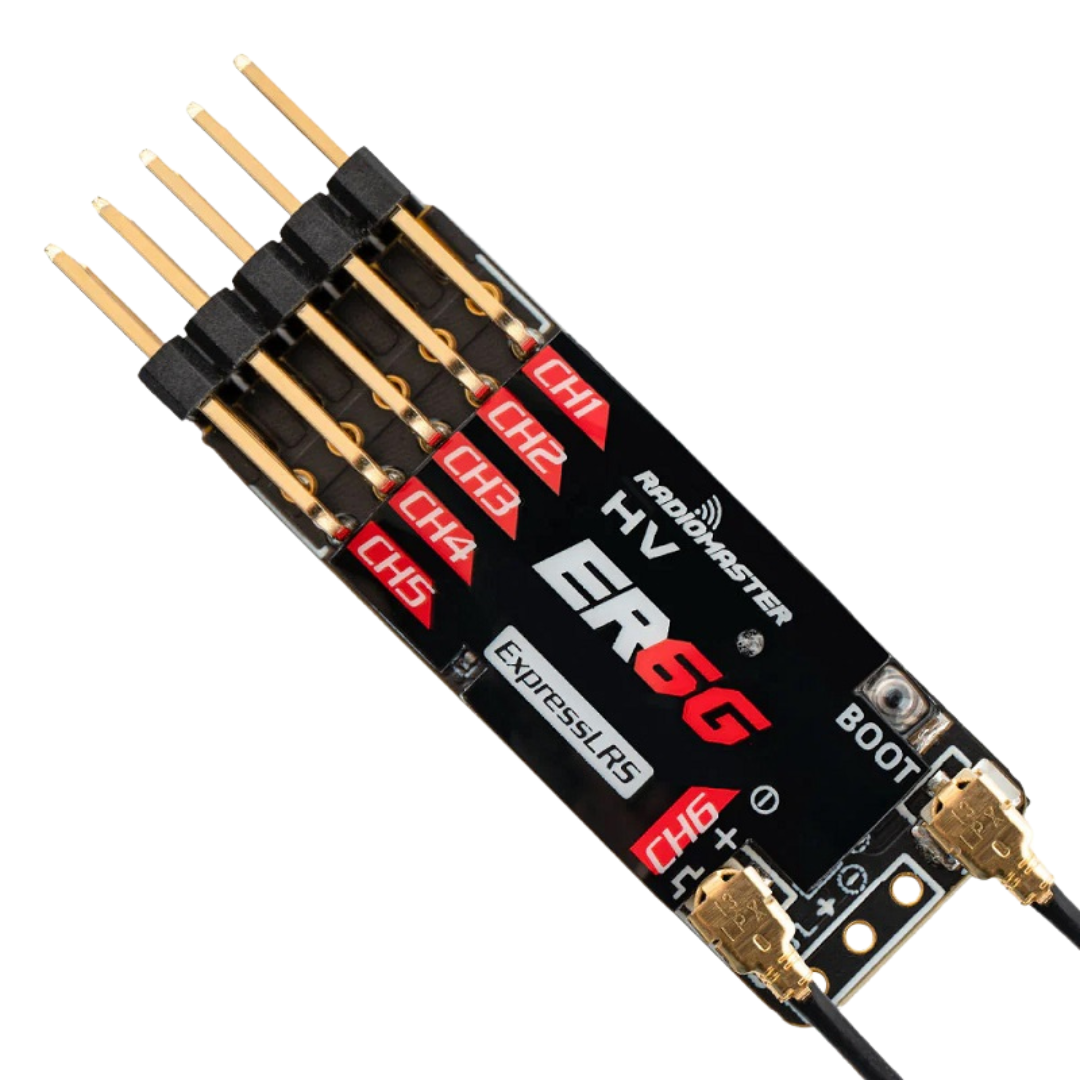

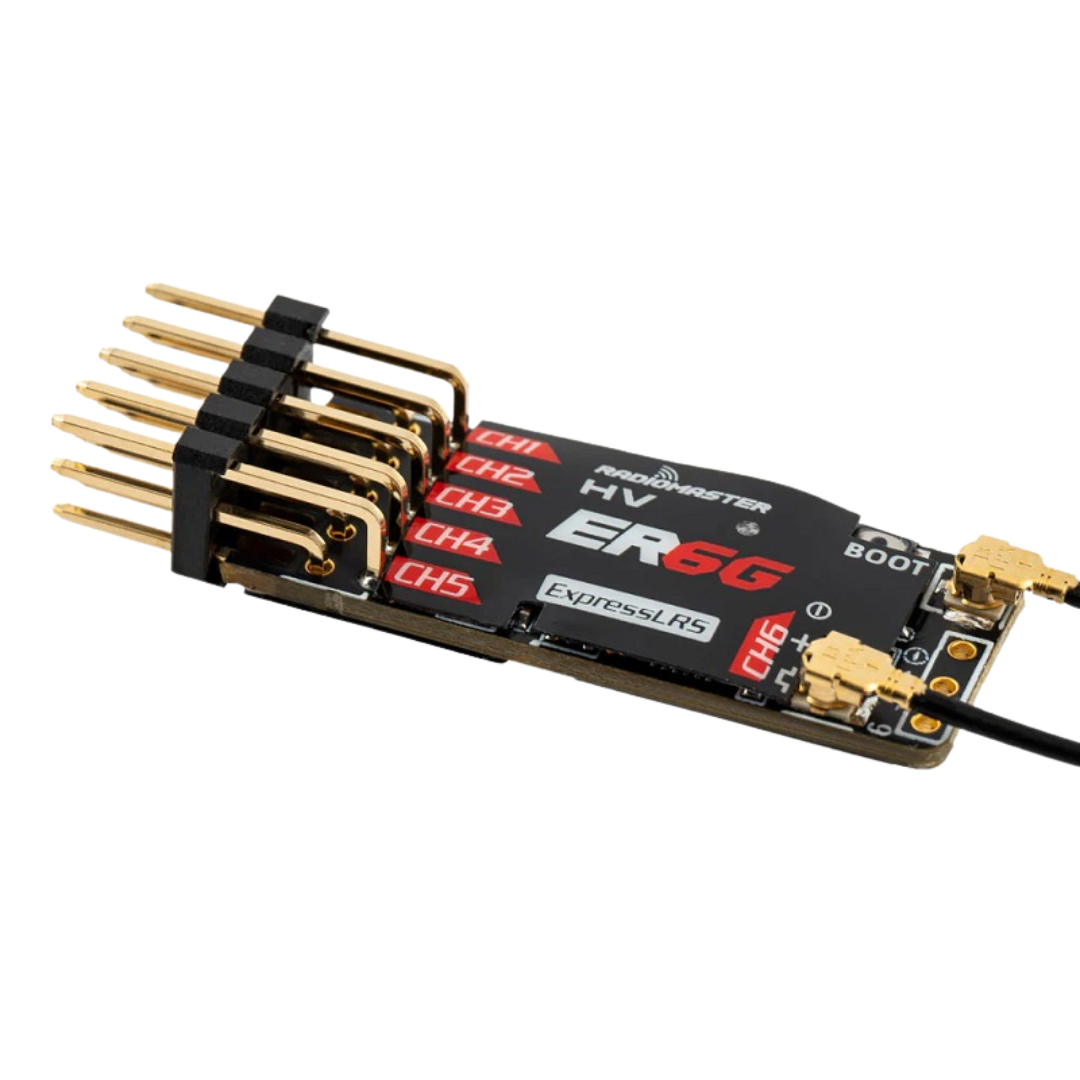

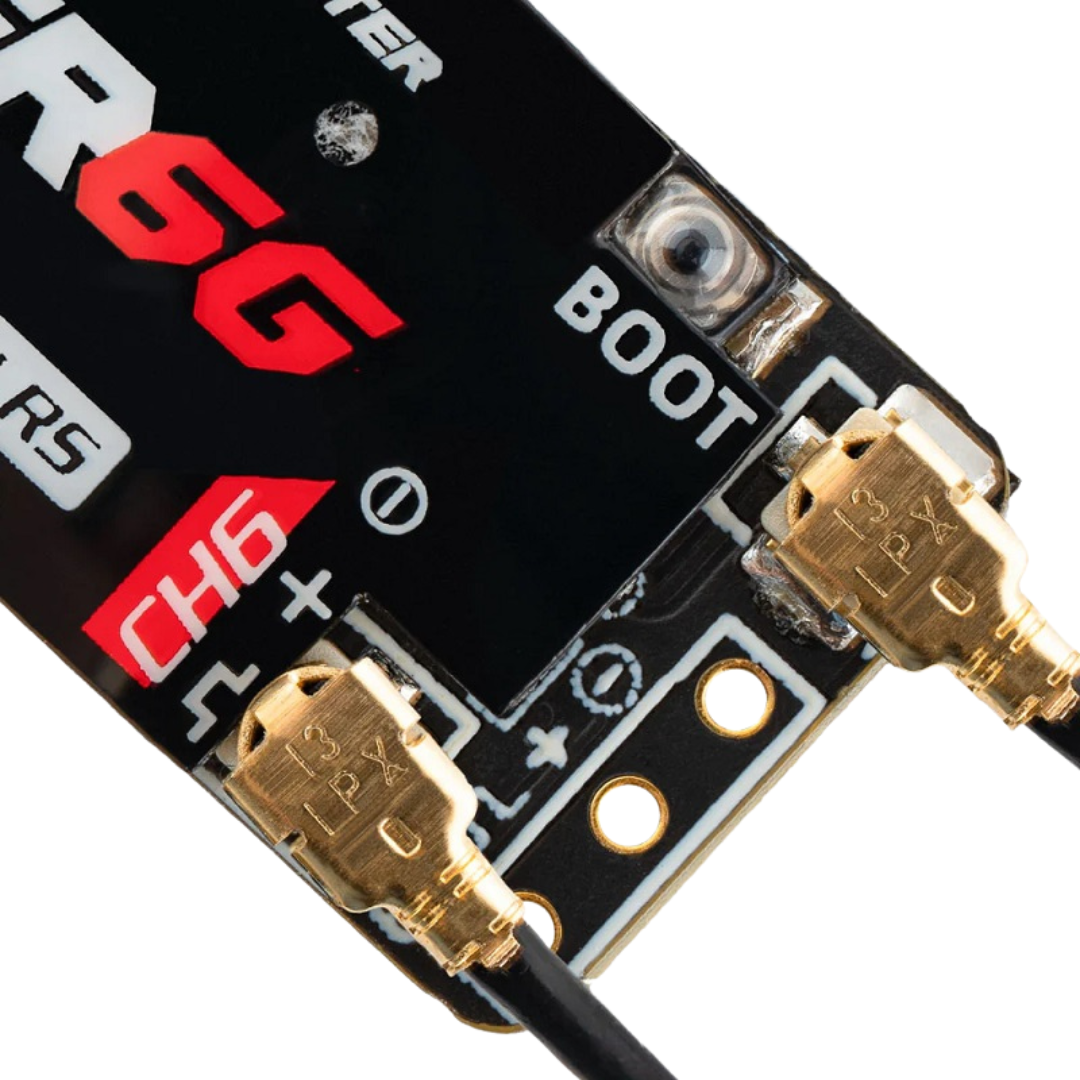

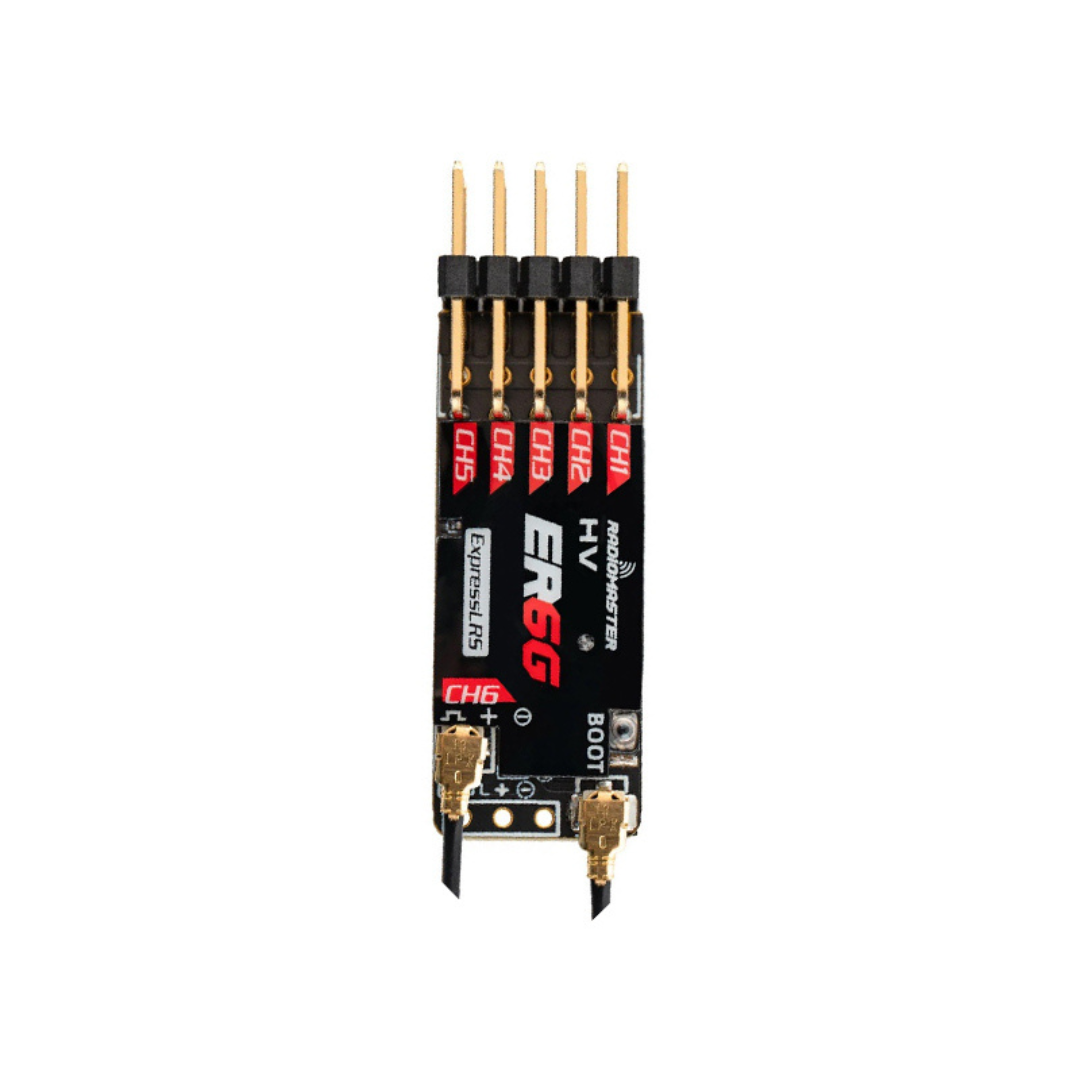

Radiomaster ER6G 2.4GHz ELRS PWM Receiver

Radiomaster ER6G 2.4GHz ELRS PWM Receiver

The RadioMaster ER6G Receiver is a high-performance PWM module built on the ExpressLRS system. It offers exceptional reliability and ultra-long range for dedicated pilots. This model is designed specifically for glider pilots needing a slim form factor. It can drive up to 6 servos simultaneously with high precision. Furthermore, it features built-in telemetry for both receiver and flight battery levels. The dual-antenna setup ensures a stable connection even in complex environments. Consequently, it provides a brand new experience for fixed-wing enthusiasts. The RadioMaster ER6G Receiver is a robust and flexible choice for any modern aircraft.

Key Features

• The RadioMaster ER6G Receiver supports 6 high-speed PWM channels.

• It features a dual-antenna design with up to 50mW telemetry power.

• Built-in voltage sensors automatically detect the correct battery input.

• It is fully compatible with all 2.4GHz ExpressLRS transmitters and modules.

• Support for Wi-Fi updates allows for easy firmware management via WebUI.

• The compact and slim PCB design fits easily into tight glider fuselages.

• High-quality 2.54mm connectors ensure secure and reliable servo wiring.

Specifications

The RadioMaster ER6G Receiver operates on a DC 3.5V to 8.4V power supply. It can work stably even with a simple 1S Lipo receiver battery. The unit comes with two standard 15cm high-sensitivity antennas. It supports a battery voltage detection range from 3.0V up to 26V. Additionally, the telemetry power is adjustable via the LUA script on your radio. The receiver weighs only 5.0g, making it ideal for lightweight models. Because of its 4.2cm length, it stays unobtrusive in your build. This makes the RadioMaster ER6G Receiver a top-tier component for competition.

Applications

This receiver is perfect for glider pilots who require a compact and lightweight setup. It works excellently for fixed-wing aircraft used in long-range soaring. Pilots use the RadioMaster ER6G Receiver in competitions where variometers are prohibited. The robust 6-channel output supports complex wing configurations with ease. Additionally, it serves as a reliable link for small-scale park flyers. The high telemetry power ensures you receive vital battery data during far-off flights. Whether for sport or professional gliding, it delivers consistent signal quality.

Connectivity

Integrating the RadioMaster ER6G Receiver into your model is very straightforward. You can connect up to 6 servos directly to the PWM pins. The included voltage telemetry wire allows for easy monitoring of the main flight pack. It supports effortless binding through the standard ExpressLRS passphrase method. Therefore, you can get your aircraft in the air with minimal configuration time. It is a comprehensive solution for pilots moving to the ExpressLRS ecosystem.
