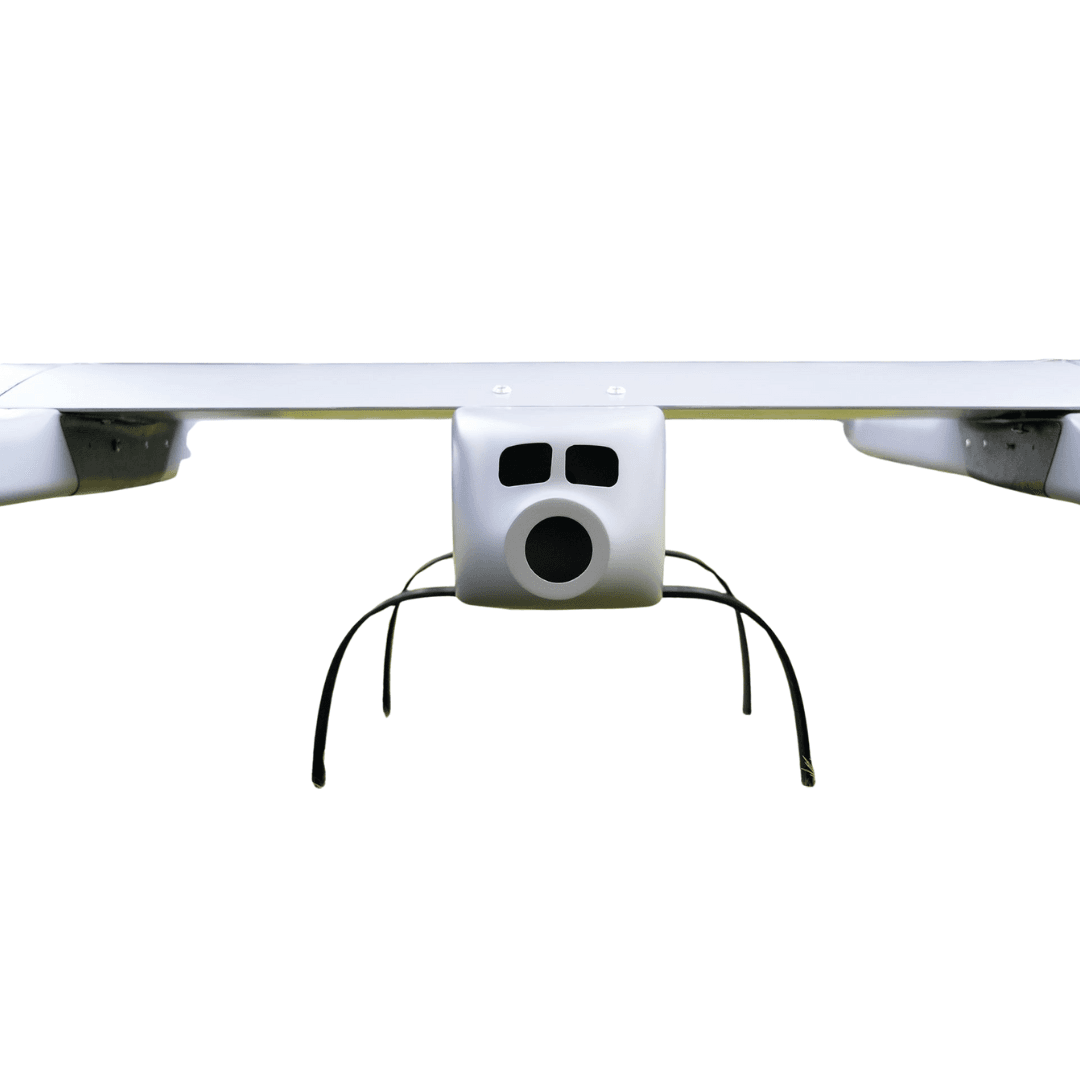

Skyeye 2930mm SV293 Plus Carbon Fiber UAV VTOL Drones Engine

Skyeye SV293 Plus 2930mm Carbon Fiber UAV VTOL Drone (Engine Version)

The Skyeye SV293 Plus VTOL UAV is a professional-grade vertical take-off and landing drone engineered for industrial, commercial, and research applications. With its 2930mm carbon fiber wingspan and optimized airframe design, it delivers long endurance, high payload capacity, and unmatched operational flexibility. Ideal for environmental surveys, logistics, monitoring, and large-scale aerial missions, this drone combines rugged build quality with advanced aviation technology.

Carbon Fiber Build with High Payload Capacity

Constructed from full carbon fiber, the SV293 Plus is 1kg lighter than standard fiberglass versions while maintaining the same takeoff weight. This allows for heavier payloads and advanced sensor integration without compromising efficiency. The 560 ? 210 ? 185mm payload bay ensures compatibility with a wide range of industrial equipment.

Hybrid VTOL Efficiency

The SV293 integrates vertical take-off and landing motors with fixed-wing performance for seamless transitions:

• 4 VTOL motors with ESCs

• 2 VTOL propellers

• 7 high-precision servos

• Tail-thrust engine with propeller

This configuration ensures hovering, smooth vertical operations, and efficient forward cruising, making it suitable for diverse terrain and mission profiles.

Extended Flight Endurance

With its 5.5L fuel tank and lightweight frame, the SV293 Engine Version supports:

• Up to 3 hours endurance with gasoline

• 1.5 hours endurance with electric power

• Cruising speeds of 23?25m/s and max speed of 30m/s

This extended endurance makes it ideal for long-range surveillance, mapping, and cargo missions.

Optimized for Industrial & Research Applications

The SV293 Plus caters to:

• Environmental monitoring & forestry surveys

• Pipeline, oil, and utility inspections

• Aerial logistics & shipment delivery

• Defense and border surveillance

• University & commercial research projects

Its modular payload system and rugged VTOL capabilities allow deployment in remote or challenging environments with ease.

Key Specifications

• Wingspan: 2930mm

• Length: 2030mm

• Payload Bay: 560 ? 210 ? 185mm

• Empty Weight: 7.1kg

• Max Takeoff Weight: 25kg

• Flight Time: 1.5?3 hours (based on fuel/electric)

• Fuel Tank: 5.5L

• Cruising Speed: 23?25m/s

• Stall Speed: 18m/s

• Material: Full carbon fiberf
