Skyeye UAV Little SRV260 Fixed Wing Drone Motor Kit V-Tail

Skyeye UAV Little SRV260 Fixed Wing Drone Motor V-Tail

Advanced 2600mm Fixed-Wing UAV for Long-Range Industrial Missions

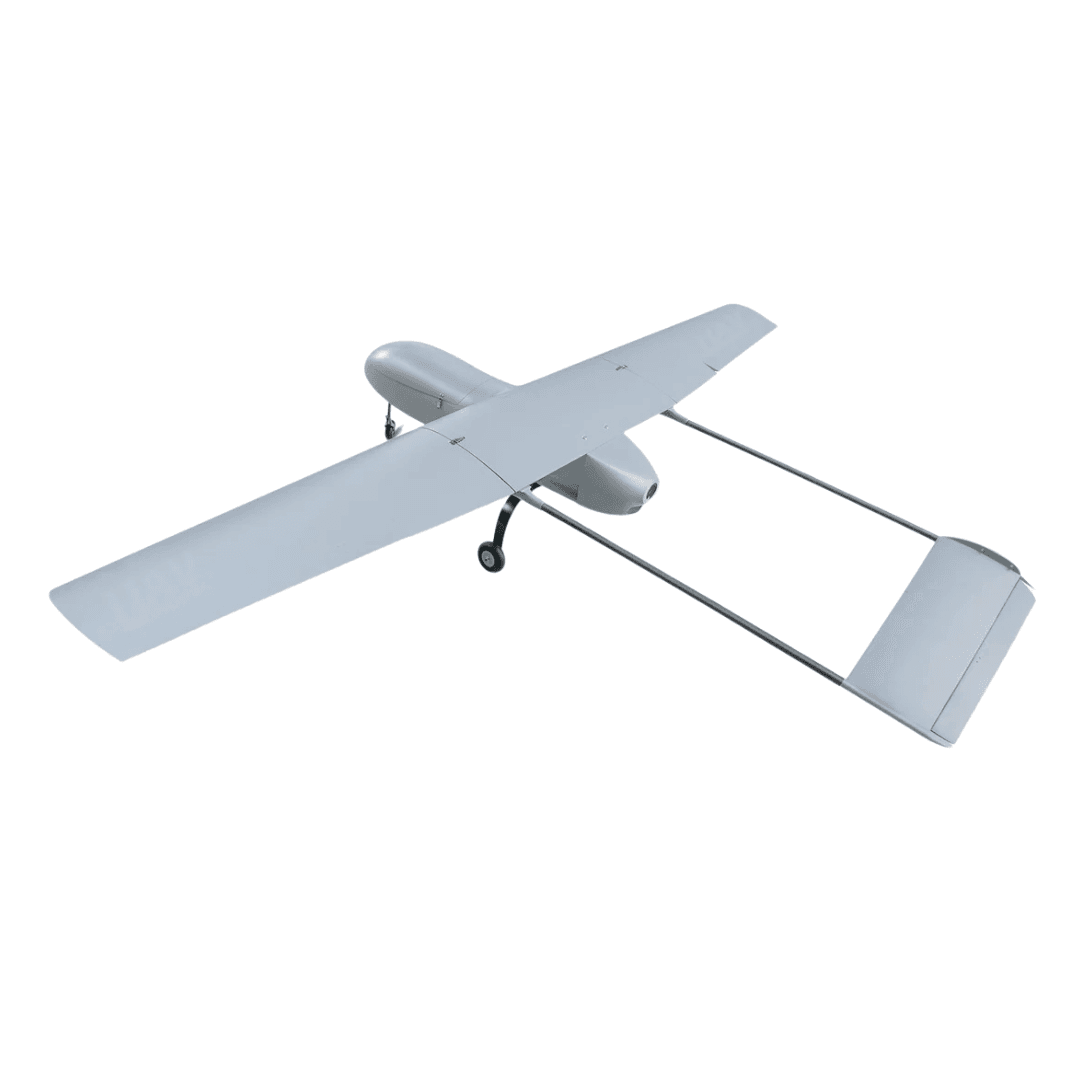

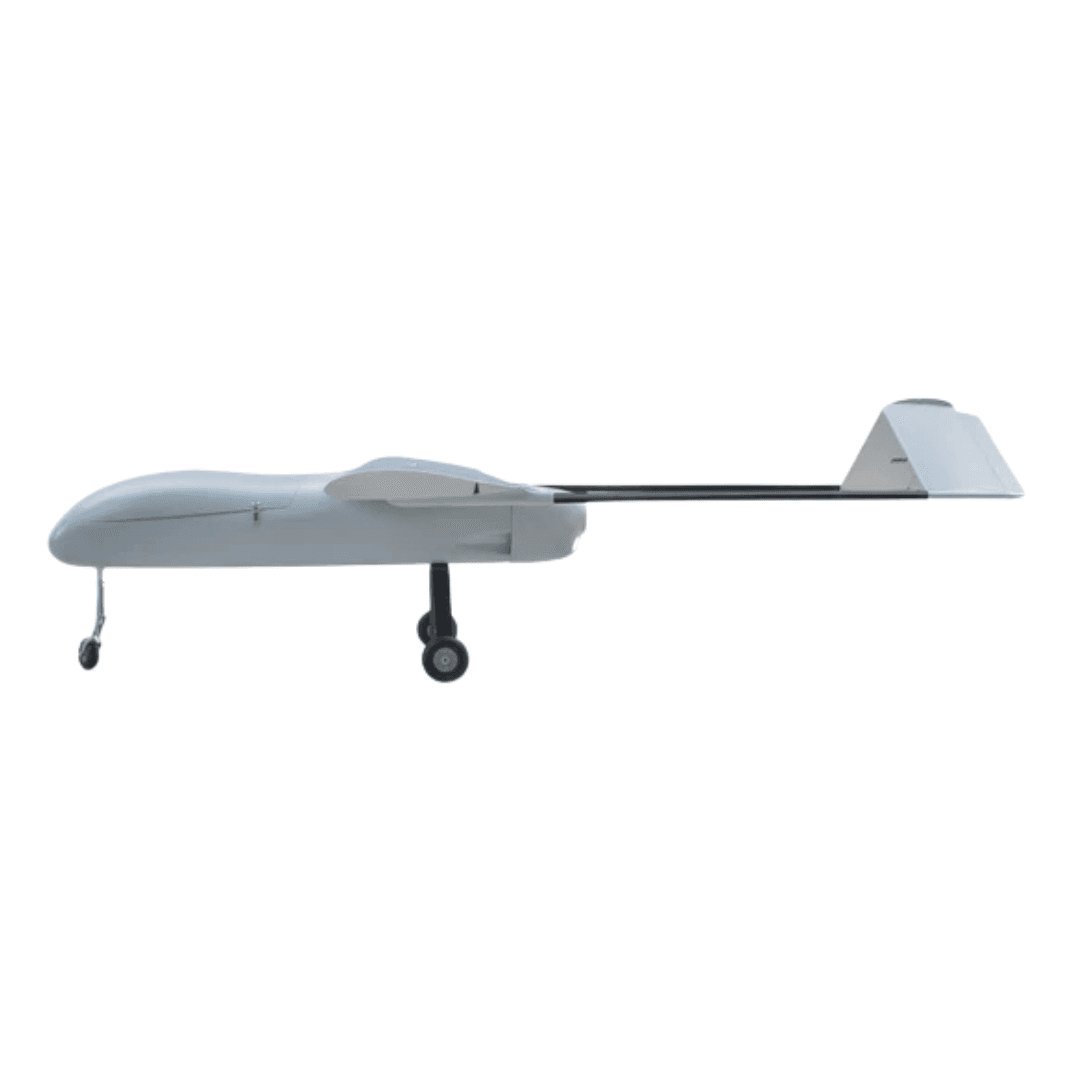

The Skyeye UAV Little SRV260 Fixed Wing Drone (Motor V-Tail Version) is a professional-grade, high-endurance UAV engineered for aerial mapping, surveying, and industrial inspection. With its 2600mm wingspan, lightweight glass fiber frame, and efficient V-tail aerodynamic design, this drone delivers superior balance, flight efficiency, and precision in every mission.

Built to meet the demands of professionals in the UAV industry, the SRV260 V-Tail variant combines smooth maneuverability, aerodynamic stability, and reliable endurance — making it an ideal platform for both commercial and research-based applications.

Aerodynamic V-Tail Design for Superior Stability

The V-tail configuration enhances aerodynamic performance by reducing drag and improving stability during high-speed and crosswind flights. This design also minimizes structural vibration, offering smoother and more efficient operations.

Operating at a cruise speed of 30m/s and reaching a maximum speed of 33m/s, the SRV260 ensures exceptional control and endurance. It supports a payload capacity of up to 4kg, ideal for LiDAR sensors, high-resolution cameras, or mapping equipment, while maintaining consistent stability even in windy conditions.

Efficient Motor Power System for Smooth Performance

The motorized version of the SRV260 is equipped with a tail-thrust propulsion system, including a high-efficiency motor, ESC, and precision propeller assembly. This setup ensures optimal power output, silent operation, and energy-efficient performance across long-range missions.

With a maximum flight endurance of 2 hours, this UAV delivers reliability and consistent thrust while maintaining flight balance and energy efficiency. The 5 integrated servos and pitot tube enable accurate flight control feedback and precise altitude monitoring for safe, stable operation.

Lightweight Glass Fiber Build with Modular Design

Crafted from aerospace-grade glass fiber, the SRV260 achieves the perfect balance between strength, weight, and aerodynamics. Its modular structure allows for quick, tool-free disassembly and reassembly, simplifying transport and field deployment.

The payload bay (560 × 220 × 220 mm) offers flexible space for professional sensors, mapping cameras, or specialized equipment. This modularity and adaptability make it an ideal platform for multi-purpose aerial operations.

Applications

The Skyeye SRV260 Fixed Wing UAV (Motor V-Tail Version) is designed for a broad range of applications, including:

• Aerial Mapping and Surveying: Precision data collection for GIS and terrain modeling.

• Agriculture and Forestry: Crop health monitoring and resource assessment.

• Infrastructure Inspection: Powerlines, pipelines, and communication tower monitoring.

• Environmental Research: Long-range data collection and aerial documentation.

• Training and Development: Perfect for UAV training and field-testing programs.
