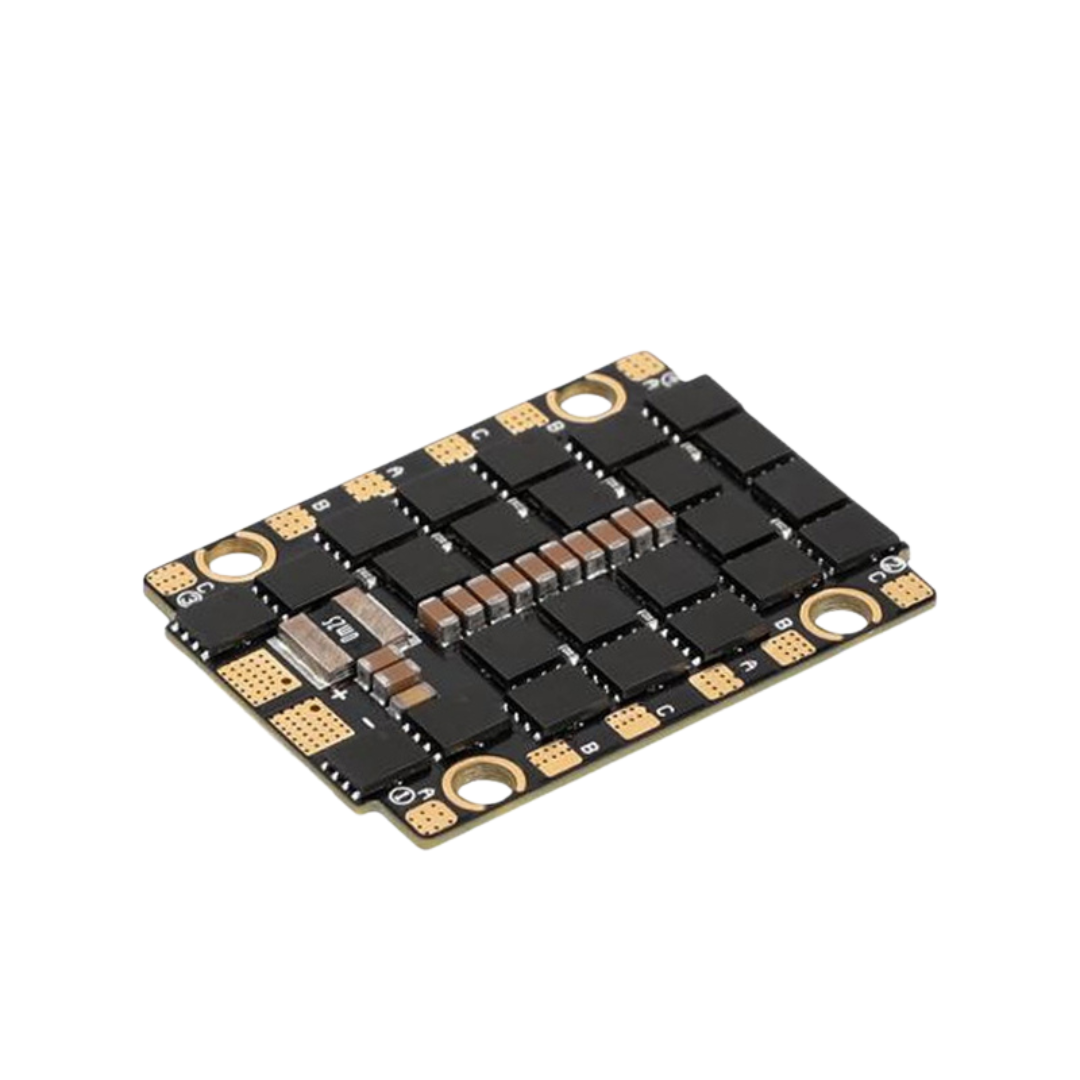

T-Motor V45A LITE 6S 4IN1 ESC 45A

T-Motor V45A LITE 6S 4IN1 ESC 45A

The T-Motor V45A LITE ESC is a high-performance and budget-friendly electronic speed controller. It handles a 45A continuous current rating with a massive 55A burst threshold. Weighing just 13.0g, this unit drops heavy aluminum heatsinks to ensure minimal weight impact on your frame. It is tailored heavily for pilots who are looking to save physical grams on agile freestyle or racing builds. It supports input voltages ranging from 3S to 6S for maximum power layout flexibility. Consequently, the T-Motor V45A LITE ESC delivers ultra-precise motor control without breaking your bank. It is a reliable and highly cost-effective energy router for modern flight.

Key Features

• The T-Motor V45A LITE ESC handles 45A continuous current reliably.

• It features a 55A burst current threshold (for up to 10 seconds).

• An incredibly light 13.0g net weight serves elite weight-saving goals.

• Pre-flashed BLHeli_S firmware delivers incredibly smooth throttle response curves.

• Double-sided, large-pitch pads make thick motor wire soldering a breeze.

• Standard 30.5cm by 30.5cm mounting holes drop straight into common stacks.

• It supports active dshot motor protocols natively without required modifications.

Specifications

The T-Motor V45A LITE ESC manages battery cells ranging between 3S and 6S LiPo. It uses a standard 30.5mm by 30.5mm mounting pattern with M3 rubber grommets. The overall perimeter dimensions stay highly compact at approximately 4.1cm squared. It features standard current meter scaling rated right at 200 for your flight controller OSD. Furthermore, it operates highly efficiently without heavy external cooling plates. This makes the T-Motor V45A LITE ESC an exceptional powerhouse for standard 5-inch frames.

Applications

This speed controller is perfect for budget-minded pilots building standard 5-inch FPV drones. It works excellently for lightweight racing rigs where every single gram directly affects cornering speed. Freestyle pilots use the T-Motor V45A LITE ESC due to the wide, easy-to-solder copper pads. The 6S voltage ceiling makes it perfect for aggressive high-KV motor setups. Additionally, it serves as a great, cost-effective replacement for blown stack ESCs. Whether you are practicing proximity maneuvers or entering a track, it pumps clean current.

Connectivity

Integrating the T-Motor V45A LITE ESC into your stack is heavily streamlined. The package comes with a 10-pin silicone wiring harness to connect straight to matching flight controllers. You should solder the included high-capacity electrolytic capacitor directly to the main battery pads. This actively absorbs dangerous voltage spikes during active braking. Therefore, managing clean electrical flow throughout your stack becomes a guaranteed process. It is a comprehensive and ready-to-solder solution for the global FPV community.
