VECROS- JetCore FC
⚠️ Due to an increase in USD prices, product prices may change. Order now to avail special discounts.
Available in stock
● Module Compatibility- NVIDIA Jetson Nano, Xavier NX, Orin Nano, Orin NX processors
● Integrated Flight Controller (PX4 and ArduPilot supported)
● Up to 7 USB ports for peripheral connectivity
● Dimensions- 136 x 67 x 18 mm
Description
VECROS- JetCore FC

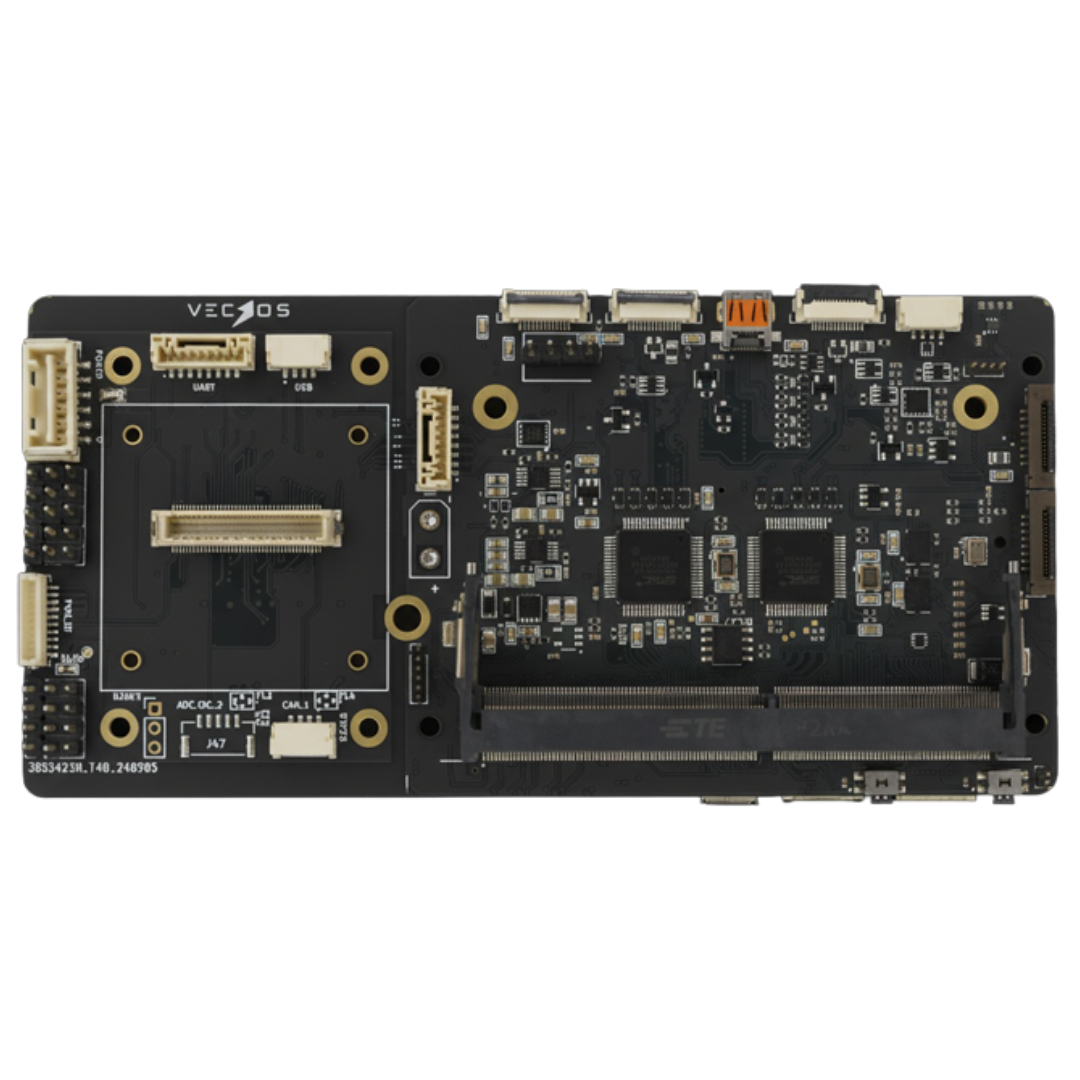

The VECROS- JetCore FC is an integrated edge-computing and flight-control board designed for advanced drone and robotics applications. It combines NVIDIA Jetson compute capability with a
built-in flight controller, enabling seamless execution of AI, navigation, and control on a single platform. This reduces system complexity, wiring, and latency while improving reliability in real-world deployments.
Key Features of JETCORE-FC
NVIDIA Jetson Compatibility
The JETCORE-FC supports multiple Jetson modules, including NVIDIA Jetson Nano, Xavier NX, Orin Nano and Orin NX processors. This allows flexibility across different performance and power requirements for autonomous systems.
Integrated Flight Control
JETCORE-FC includes a built-in flight controller with native support for PX4 and ArduPilot. This enables direct control of UAVs without requiring a separate autopilot, reducing latency and improving system synchronization between AI and flight operations.
Connectivity and Expansion
This board provides diverse interfaces for connectivity. It includes seven USB ports, consisting of six USB 2.0 ports (five FPC type and one dedicated for debugging) and one USB 3.0 port. It also features Ethernet, UART, CAN, and GPIO interfaces. Additionally, there is a Micro HDMI port that supports Full HD resolution. For expanded storage, the board includes an M.2 Key M interface for an NVMe SSD.
Environmental and Security Features
The board integrates multiple IMUs for accurate motion sensing and flight stability. It also includes a Crypto Auth IC for secure data handling and system protection. These features make it suitable for mission-critical and industrial applications.
Power Supply and Durability
The JETCORE-FC operates on a stable 12–18V DC input, managed through an XT30 connector for reliable power delivery. It is designed for harsh environments and can operate in temperatures ranging from -40°C to +85°C.
Dimensions and Setup
The board measures 136 x 67 x 18 mm and weighs only 55 g. Its compact and integrated design significantly reduces setup complexity, eliminating the need for separate compute and flight controller units.
Conclusion
The JETCORE-FC offers a fully integrated solution for autonomous drones and robotics. By combining AI compute and flight control into a single board, it enables faster development, reduced hardware complexity, and improved system reliability. It is ideal for applications in UAVs, defense, industrial inspection, and advanced robotics.
