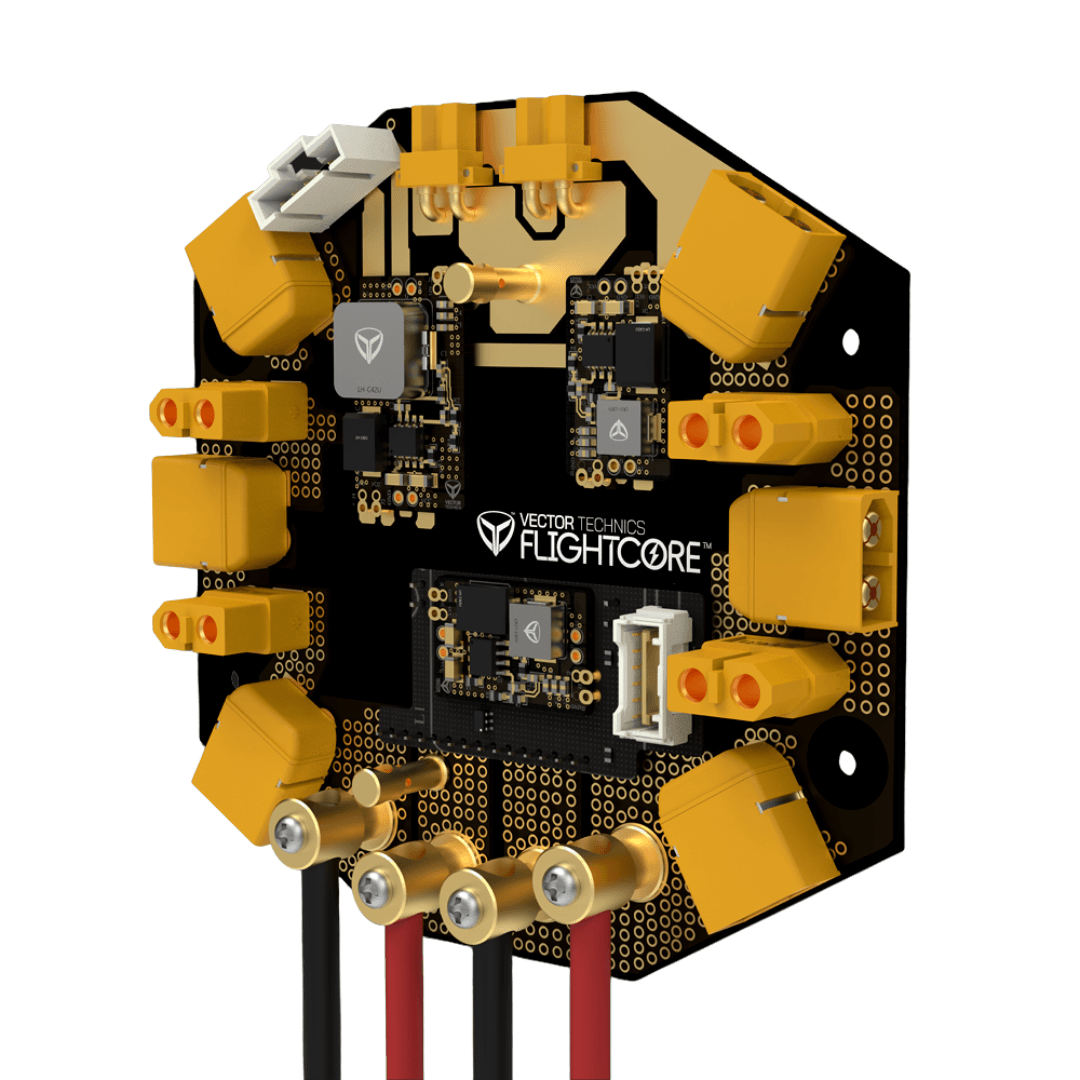

Vector Technics PDB Flightcore MK2 6S -14S

Vector Technics PDB Flightcore MK2 6S -14S

Precision Power for Professional UAV Systems

The Vector Technics Flightcore MK2 is a next-generation Power Distribution Board (PDB) engineered for reliability, safety, and performance in professional Unmanned Aerial Systems (UAS). Designed to handle high-power configurations (6S–14S LiPo), this PDB ensures efficient and safe power management for both propulsion and payload systems.

Built to withstand extreme environments, the Flightcore MK2 delivers stable power regulation, modular outputs, and robust protection, making it ideal for industrial, mapping, and surveillance UAV platforms.

High-Performance Design and Build

Crafted with a 4-layer high-temperature PCB, rated for 180°C continuous operation, the Flightcore MK2 guarantees long-term stability under demanding flight conditions. The 22.2V–58.8V voltage range provides compatibility with 6S to 14S LiPo batteries, ensuring flexibility for a wide range of UAV power setups.

Smart Power Management System

Equipped with multiple XT60 and XT30 outputs, the Flightcore MK2 simplifies wiring and enhances power distribution efficiency:

• 6× XT60 connectors for ESC/motor outputs

• 4× XT60 for payload systems

• 2× XT30 for auxiliary or custom applications

The integrated 5V and 12V modular BEC regulators provide 2A continuous current, protecting sensitive electronics like flight controllers and sensors.

Integrated Power Module for Real-Time Monitoring

The built-in Power Module enables precise voltage and current measurement (0–100V / 0–100A) with analog output, ensuring accurate telemetry data for flight control systems. This allows operators to monitor energy consumption, battery status, and system health during missions.

Advanced Protection and Safety

Designed with overcurrent and short-circuit protection on both 5V and 12V outputs, the Flightcore MK2 ensures safety for connected components. The robust PCB layout and temperature resistance make it dependable even in high-load UAV operations.

Compact and Easy Integration

With its compact dimensions (110×116×25mm) and mounting footprint of 102×49mm, the Flightcore MK2 fits seamlessly into almost any UAV frame. At just 156g, it adds minimal weight while delivering exceptional power handling capability.

Key Features

• Supports 6S–14S LiPo systems (22.2V–58.8V)

• 4-layer PCB rated for 180°C continuous operation

• Integrated Power Module for voltage and current monitoring

• Overcurrent and short-circuit protection on 5V & 12V regulators

• Multiple XT60/XT30 outputs for flexible power distribution

• Compact, lightweight, and easy to mount design

• Designed and manufactured in India
