Description

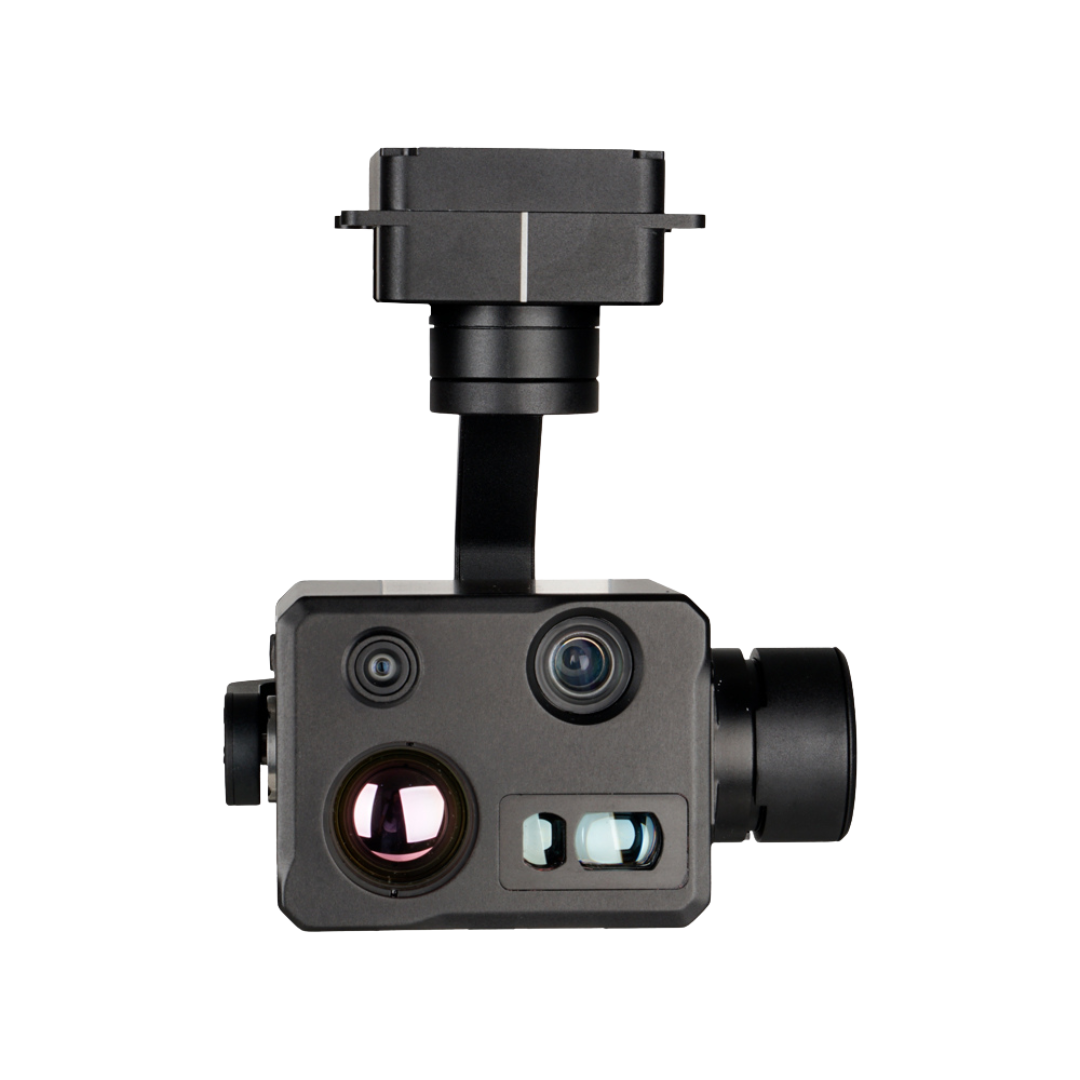

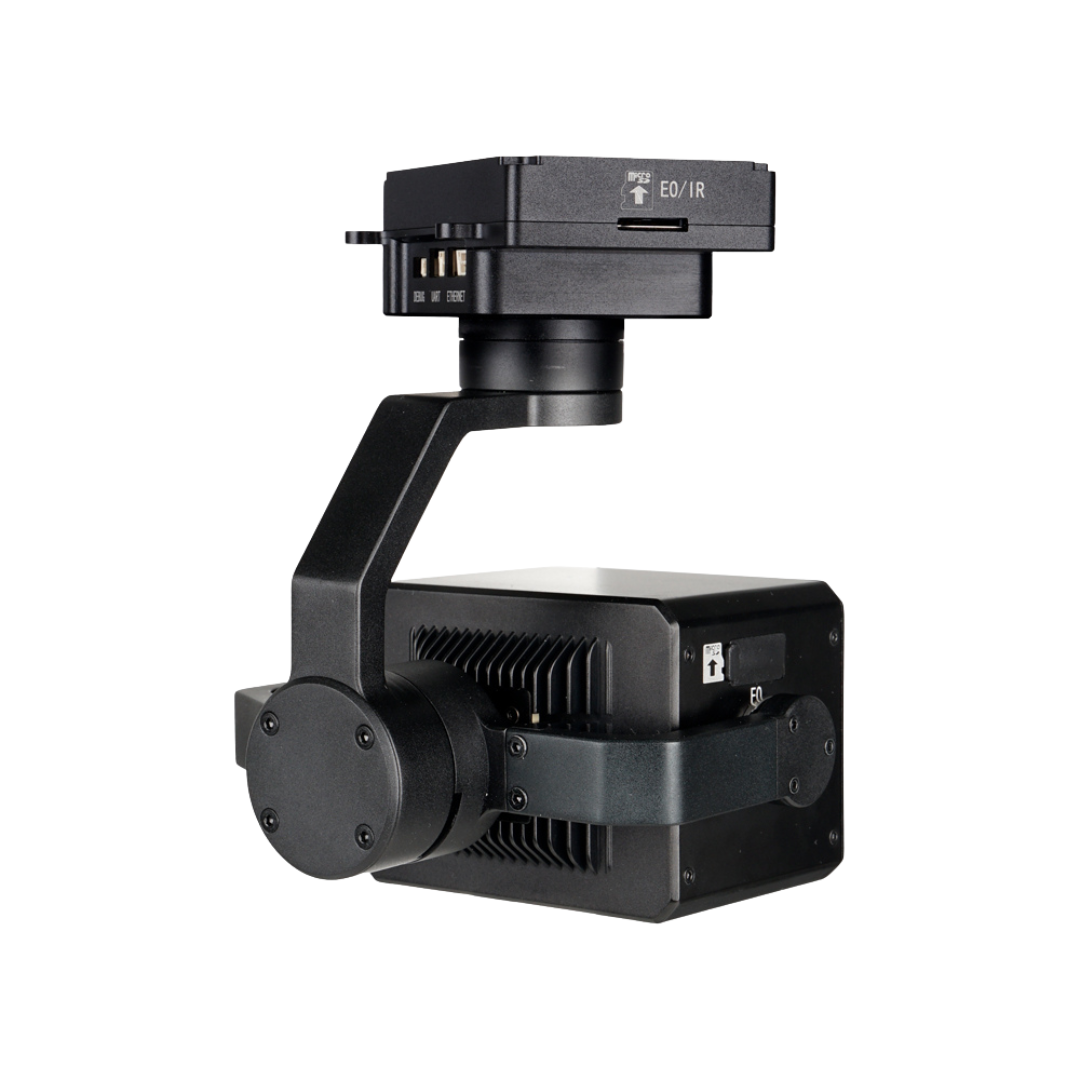

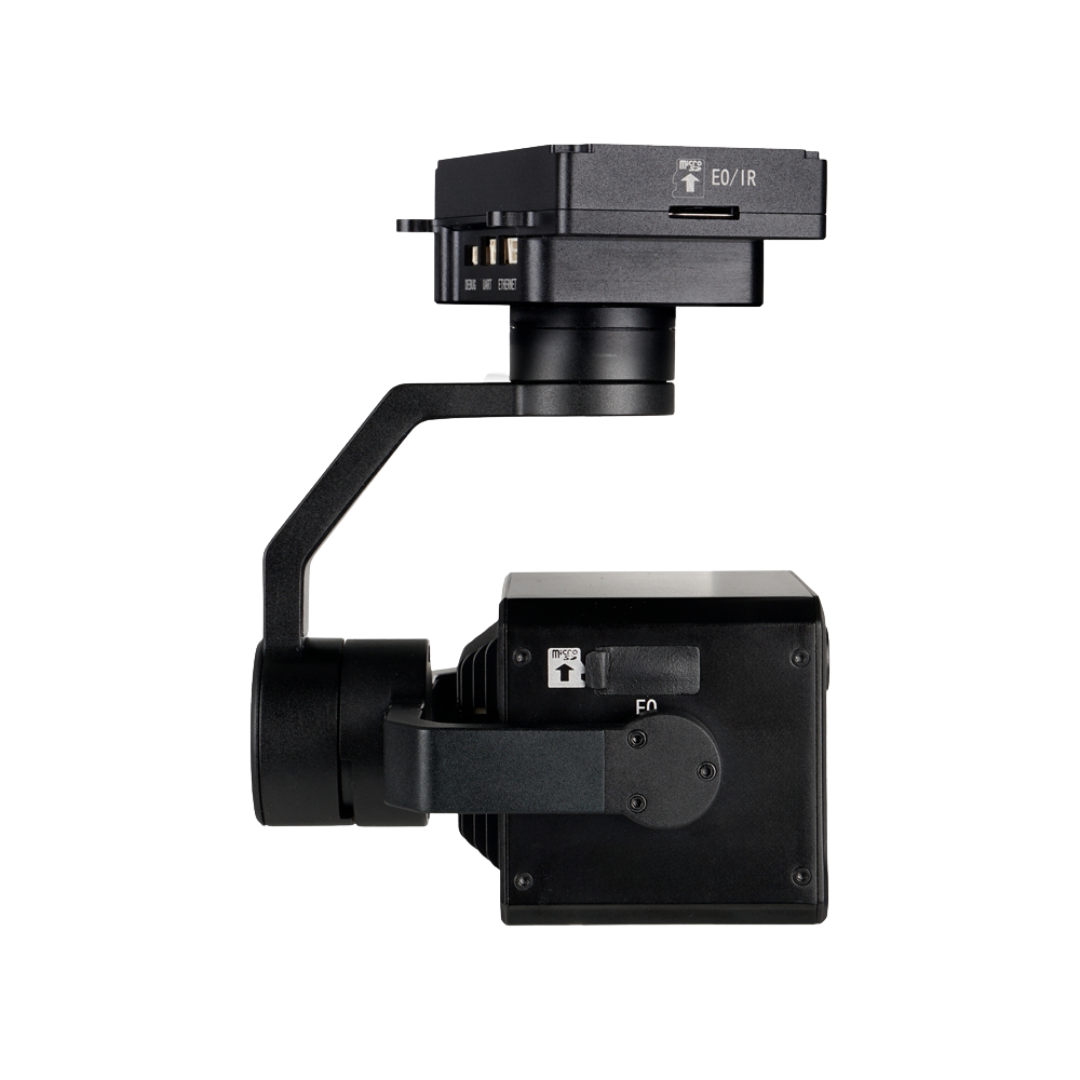

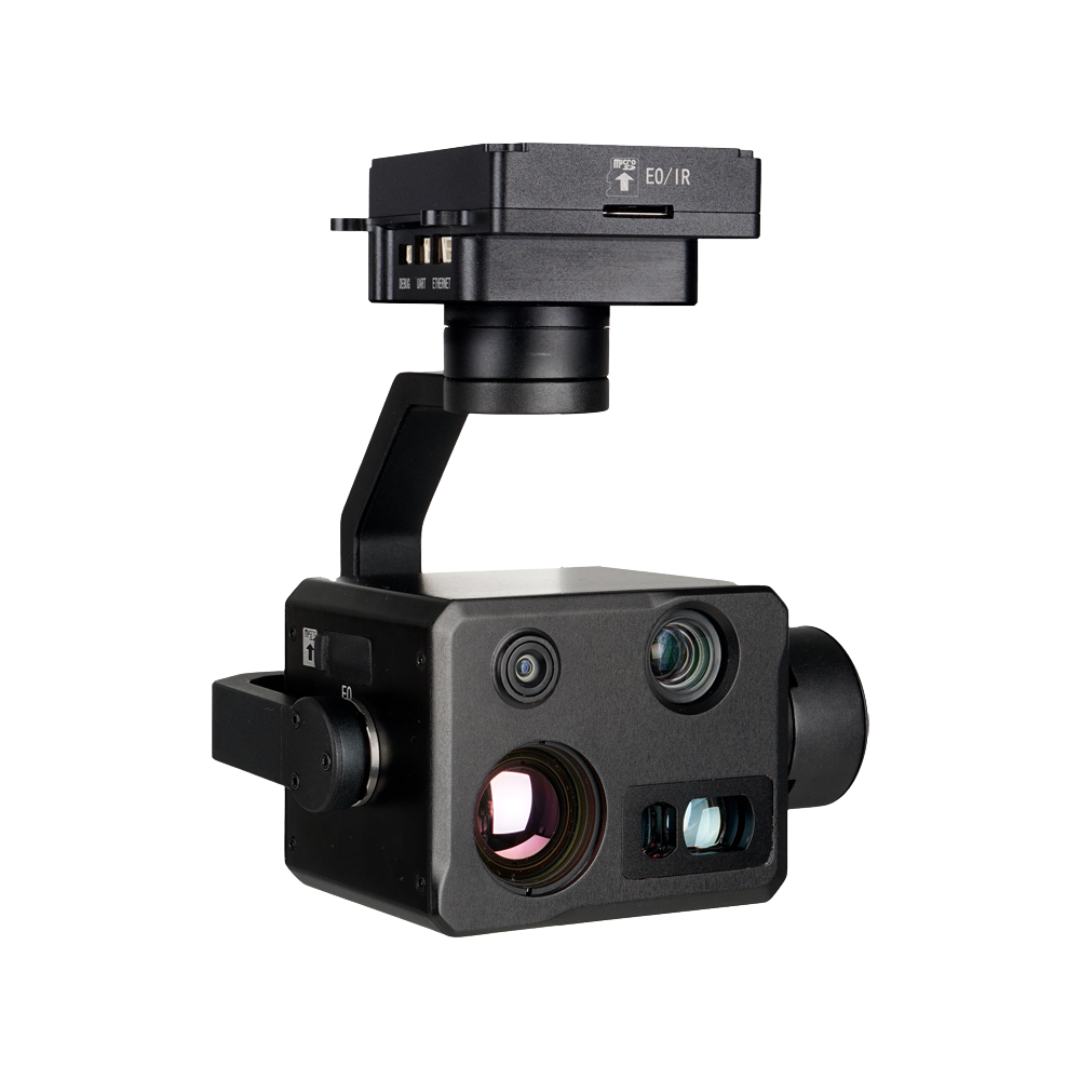

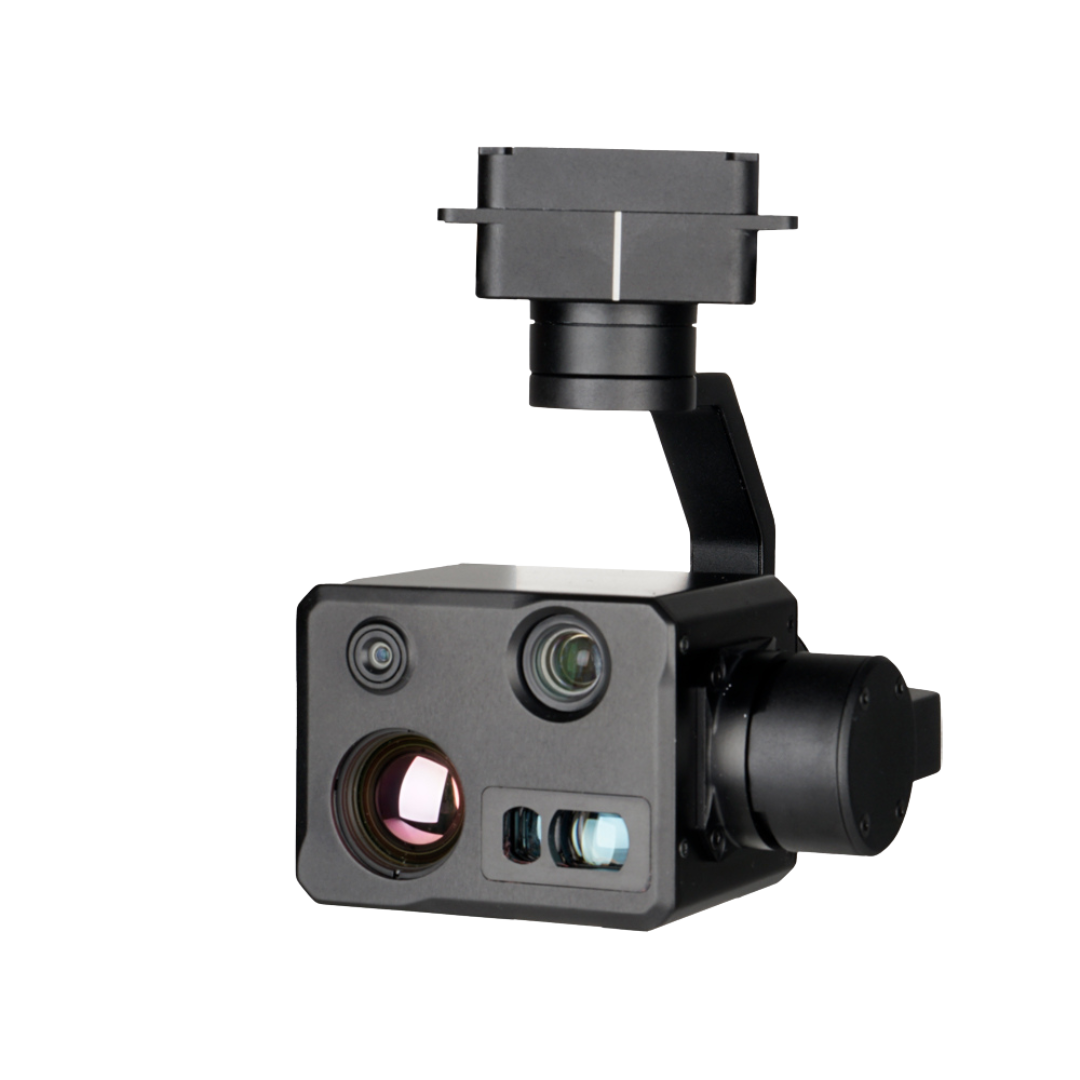

ViewPro H4T-25/H4T-19 Mini 3-Axis 8K Quad-Sensor Al Gimbal Camera
The ViewPro H4T series represents a breakthrough in miniaturized aerial intelligence. This 3-axis gimbal integrates four high-performance sensors into one compact payload. It features 8K wide-angle and zoom cameras for unmatched visual clarity. Consequently, it provides operators with comprehensive situational awareness for complex missions. The lightweight design makes it compatible with many small UAV platforms. Whether for security or inspection, this gimbal delivers professional-grade results.
Quad-Sensor Capabilities
This advanced system combines four vital modules to maximize operational efficiency. First, the 48MP wide-angle camera captures broad vistas in stunning 8K resolution. Second, the 10x optical zoom camera allows for detailed inspections from a safe distance. Third, the uncooled VOx thermal imager provides clear 640×512 heat signatures. Finally, an integrated laser rangefinder accurately measures target distances up to 1500 meters. These sensors work together to provide a complete data set in real-time.
AI-Powered Tracking
Intelligence is at the core of the H4T series. The gimbal features advanced AI algorithms for automatic target identification. It can detect and lock onto humans and vehicles simultaneously. Furthermore, the tracking system maintains a lock even if the target is briefly obscured. This automation reduces the pilot’s workload during high-stakes search and rescue operations. You can switch between visible and thermal views while maintaining track. This ensures you never lose sight of your objective.
Industrial Applications
The H4T-25 and H4T-19 are built for demanding industrial environments. They excel in power line inspections where high resolution is mandatory. Additionally, the thermal sensor is perfect for identifying hotspots in firefighting missions. The laser rangefinder helps in mapping and disaster management by providing precise coordinates. Because it supports multiple control protocols like S.BUS and UART, integration is seamless. It is truly a versatile tool for modern drone professionals.
Specifications
| H4T-25 Overall Specifications | |
| N.W. | 420g |

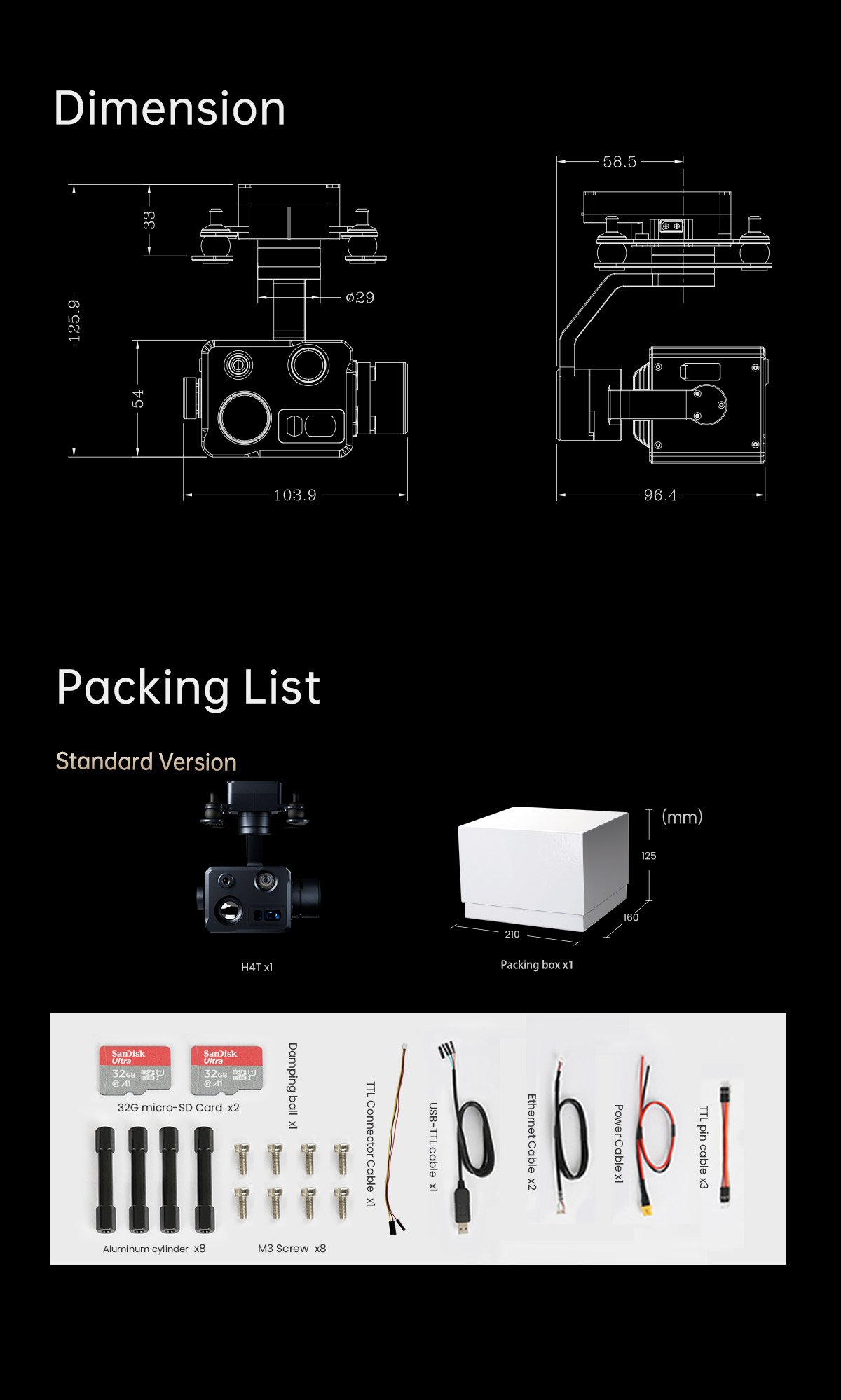

| Product meas. | 102.5*97.5*124.9mm |
| Input Voltage | 14.8V~25.2V |
| Dynamic current | 1250~1650mA @ 16V |
| Power consumption | Average 20W, Max 26.4W |
| Working environment temp. | -20℃~+50℃ |
| IP rate | IP4X |
| EO camera zoom capability | 10x optical zoom, hybrid zoom 160x |
| Output | IP (RTSP/UDP 720p/1080p@25fps H264/H265) |
| Storage | TF card 1 (top slot)(Up to 256G,class 10, FAT32 format) TF card 2 (camera slot) (storage capacity within 512G, read and write speed A2 V30) |
| Picture in TF Card | TF card 1 (top slot): EO 1920*1080, IR 640*512 TF card 2 (camera slot): wide-angle camera 4000*3000, zoom camera 4000*3000 |
| Video in TF Card | TF card 1 (top slot): 1920×1080 @ 25 fps TF card 2 (camera slot): Wide-angle camera 4K@30fps, Zoom camera 4K@30fps |
| Control method | S.BUS or TTL(either one, default is TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～135°(Down), Roll angle:±50°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±140° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Wide angle EO Camera Spec | |
| Imager Sensor | 1/2″ CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 4.49mm |
| Equivalent focal length | 24.29mm |
| Aperture | F2.8 |
| Field of View | D:84° H:70.2° V:54.9° |
| Optical distortion | 2.50% |
| Optical zoom EO Camera Spec | |
| Imager Sensor | 1/2 inch CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 15.3~49.7mm±5% |
| Equivalent focal length | 82.77-268.88mm, Aperture F3.7(W)~F4.6(T) |
| Field of View | D: 28.3°(W)~8.9°(T) H: 23.2°(W)~7.2°(T) V: 17.6°(W)~5.4°(T) |
| Optical distortion | 1.6%(Wide)~1.4% (Tele)， @∅8mm |
| IR Thermal Imager Spec | |
| Focus Length | 25mm |
| Aperture | F1.2 |
| Horizontal FOV | 17.5° |
| Vertical FOV | 14° |

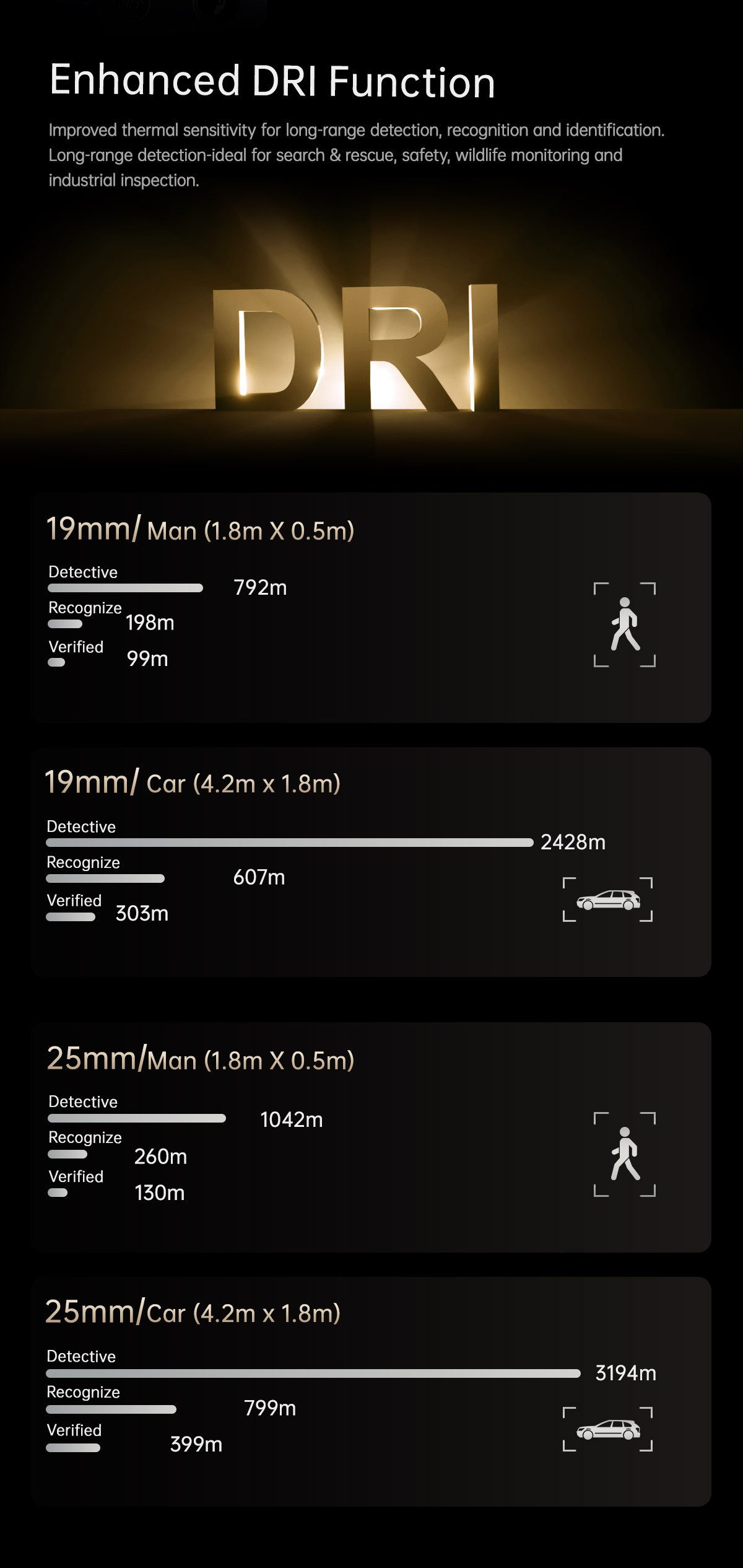

| Detective Distance (Man: 1.8×0.5m) | 1042 meters |
| Recognize Distance (Man: 1.8×0.5m) | 260 meters |
| Identification Distance (Man: 1.8×0.5m) | 130 meters |
| Detective Distance (Car: 4.2×1.8m) | 3194 meters |
| Recognize Distance (Car: 4.2×1.8m) | 799 meters |
| Identification Distance (Car: 4.2×1.8m) | 399 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Optional range -20℃~+150℃, +100℃~+650℃ |
| Temperature measurement accuracy ±3℃ or ±3%(take larger value) | |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| Minimum signal-to-noise ratio | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| EO/IR Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| IR Laser Rangefinder | |
| Range | 5~1200m |
| Accuracy | ±1m |
| Frequency | 1~20Hz(5 40m);1~4Hz(40~1200m) |
| Light Beam | 905±5nm pulse laser |
| Divergent Angle | ~6 mrad |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Eye safety level | Class 3R(IEC 60825-1) |
| Working power | ≤1.5W |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, ranging value, TF card status, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging (POS) | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video stitching | EO+IR /IR+EO /EO /IR |
| Dual-channel video stream output (optional) | Support (one EO output, one IR output, video recording is not supported after it is enabled) |
| H4T-19 Overall Specifications | |
| N.W. | 424g |
| Product meas. | 102.5*97.5*124.9mm |
| Input Voltage | 14.8V~25.2V |
| Dynamic current | 1120~1600mA @ 16V |
| Power consumption | Average 17.9W, Max 25.6W |
| Working environment temp. | -20℃~+50℃ |
| IP rate | IP4X |
| EO camera zoom capability | 10x optical zoom, hybrid zoom 160x |
| Output | IP (RTSP/UDP 720p/1080p@25fps H264/H265) |
| Storage | TF card 1 (top slot)(Up to 256G,class 10, FAT32 format) TF card 2 (camera slot) (storage capacity within 512G, read and write speed A2 V30) |
| Picture in TF Card | TF card 1 (top slot): EO 1920*1080, IR 640*512 TF card 2 (camera slot): wide-angle camera 4000*3000, zoom camera 4000*3000 |
| Video in TF Card | TF card 1 (top slot): 1920×1080 @ 25 fps TF card 2 (camera slot): Wide-angle camera 4K@30fps, Zoom camera 4K@30fps |
| Control method | S.BUS or TTL(either one, default is TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -65°(Up)～135°(Down), Roll angle:±50°, Yaw/Pan: ±150° |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±140° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Wide angle EO Camera Spec | |
| Imager Sensor | 1/2″ CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 4.49mm |
| Equivalent focal length | 24.29mm |
| Aperture | F2.8 |
| Field of View | D:84° H:70.2° V:54.9° |
| Min illumination | Color 0.1 lux |
| Optical distortion | 2.50% |
| Optical zoom EO Camera Spec | |
| Imager Sensor | 1/2 inch CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 15.3~49.7mm±5% |
| Equivalent focal length | 82.77-268.88mm, Aperture F3.7(W)~F4.6(T) |
| Field of View | D: 28.3°(W)~8.9°(T) H: 23.2°(W)~7.2°(T) V: 17.6°(W)~5.4°(T) |
| Min illumination | Color 5 lux |
| Optical distortion | 1.6%(Wide)~1.4% (Tele)， @∅8mm |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |
| Detective Distance (Man: 1.8×0.5m) | 792 meters |
| Recognize Distance (Man: 1.8×0.5m) | 198 meters |
| Identification Distance (Man: 1.8×0.5m) | 99 meters |
| Detective Distance (Car: 4.2×1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2×1.8m) | 607 meters |
| Identification Distance (Car: 4.2×1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@25℃, F#1.0 |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Thermometry range optional：-20℃~+150℃, +100℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3% of reading (whichever is greater) @ ambient temperature -20℃~60℃ | |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| Minimum signal-to-noise ratio | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| EO/IR Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Laser Rangefinder | |
| Range | 5~1200 meters |
| Accuracy | ±1m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~4Hz |
| Eye safety level | Class1 |
| Working power | ≤2W |
| Location Resolving | Latitude and longitude of target |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Advanced Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, ranging value, TF card status, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging (POS) | Display time and GPS coordinate in picture exif |
| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual-channel video stream output (optional) | Support (one EO output, one IR output, video recording is not supported after it is enabled) |
