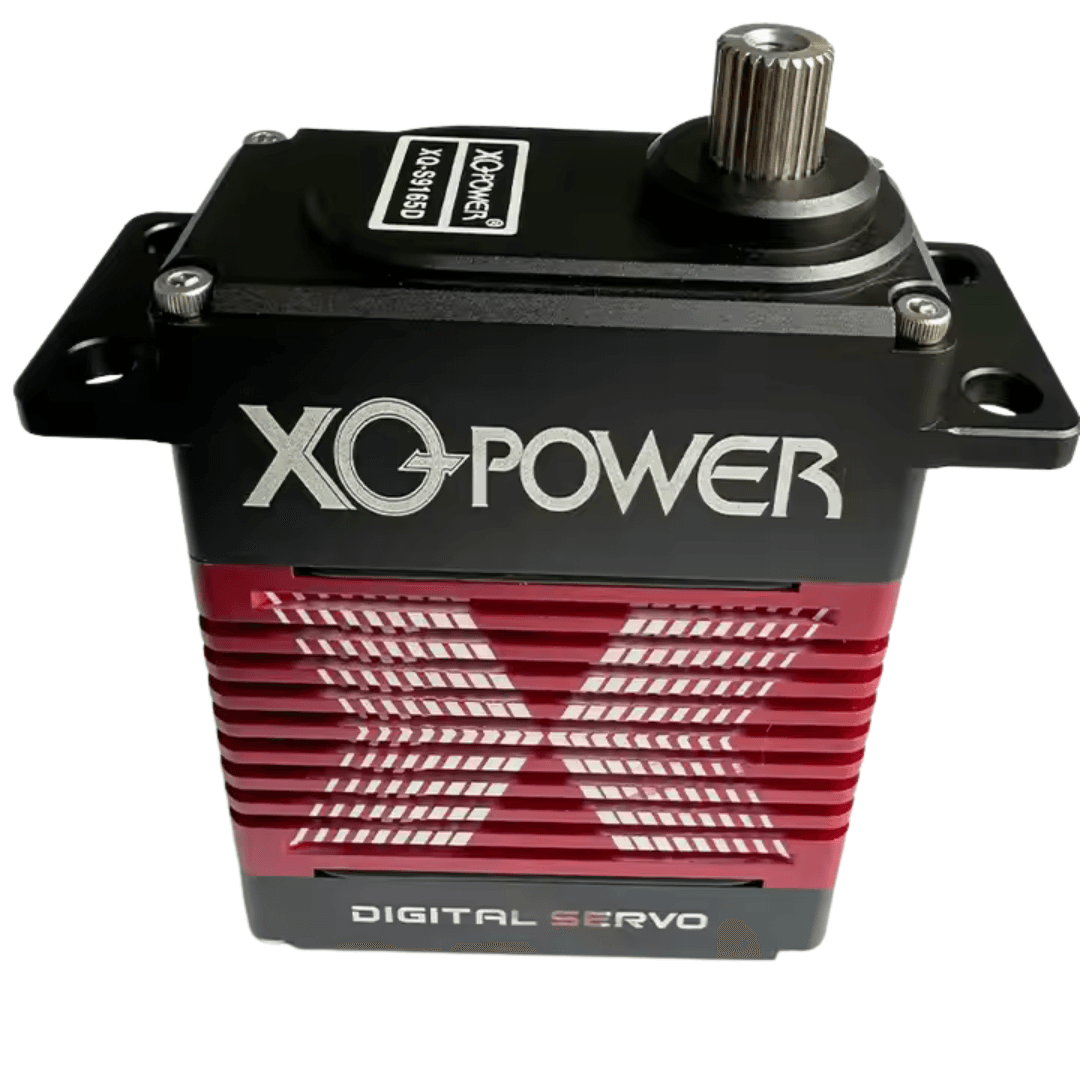

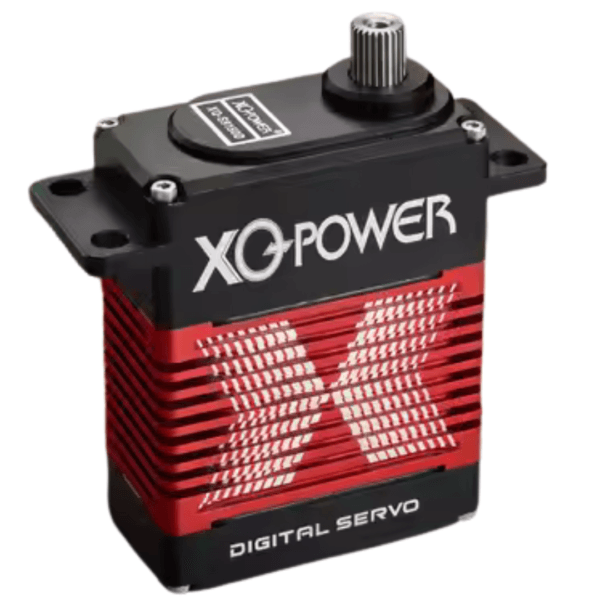

XQ Power XQ-S9150D High Torque Digital Servo

XQ Power XQ-S9150D High Torque Digital Servo

Precision. Strength. Performance.

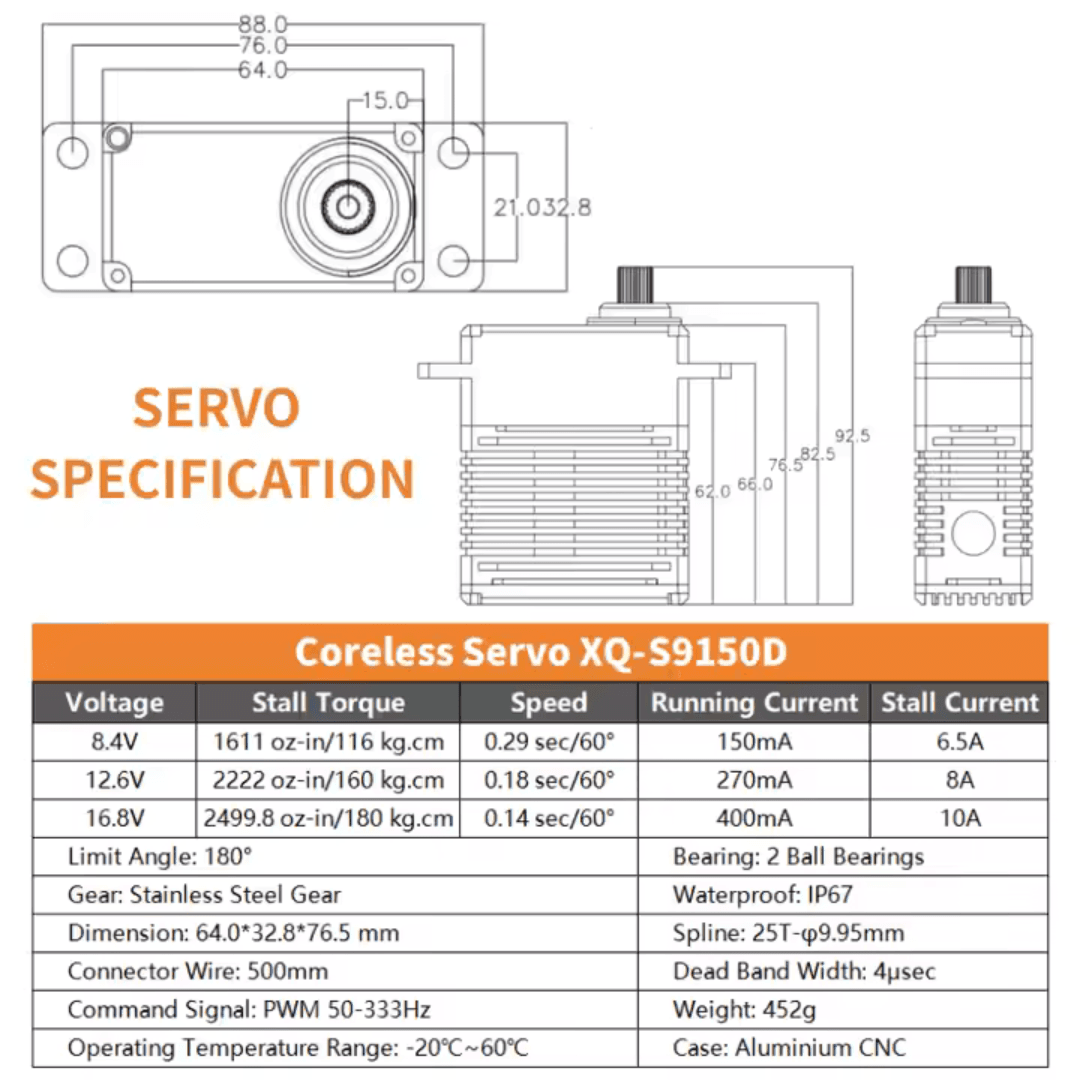

The XQ-Power S9150D is a high-performance digital servo engineered for demanding applications requiring maximum torque, accuracy, and durability. Designed with an industrial-grade CNC-machined aluminum case, this servo includes an integrated heat sink for efficient thermal management, reducing the risk of overheating during extended use. Its compact form factor (64.0×32.8×76.5 mm) and weight (452g) make it a powerful yet manageable addition to high-stress robotic or RC systems.

High Torque and Speed Performance

Delivering up to 180 kg.cm torque at 16.8V, the XQ-S9150D stands out for applications that demand precise and forceful movement. It supports:

• 0.29 sec/60° at 8.4V
• 0.18 sec/60° at 12.6V
• 0.14 sec/60° at 16.8V

These specifications allow for fast and smooth actuation without compromising control, making it suitable for robotics, UAV control surfaces, and industrial automation.

Rugged Construction for Harsh Environments

Built with tough steel gears and housed in a waterproof IP67-rated casing, this servo is capable of withstanding water exposure, dust, and heavy-duty field conditions. The combination of stainless steel gearing and a high-quality brushless motor ensures reliable, long-term performance with minimal wear and tear.

Materials and Motor Technology

• Gear Type: Stainless Steel
• Housing: CNC All-Aluminium with integrated cooling fins
• Motor: High-quality Brushless Motor
• Torque Output:
  • 1611 oz-in (8.4V)
  • 2222 oz-in (12.6V)
  • 2499.8 oz-in (16.8V)
