T Motor Flame 100A 14S ESC ₹11,539.00 excl. GST
Share
FLAME 100A
Compare Wishlist

T Motor Flame 100A 14S ESC

in T-Motor

₹11,539.00 excl. GST

Available in stock

  1. Input Voltage: 6~14S Lipo
  2. Continuous Current: 100A
  3. Peak Current: 120A
  4. BEC: No
Compare Wishlist
Category:
5 days replacement policy on manufacturing defects Know More
Upto one year warranty Know More
Description

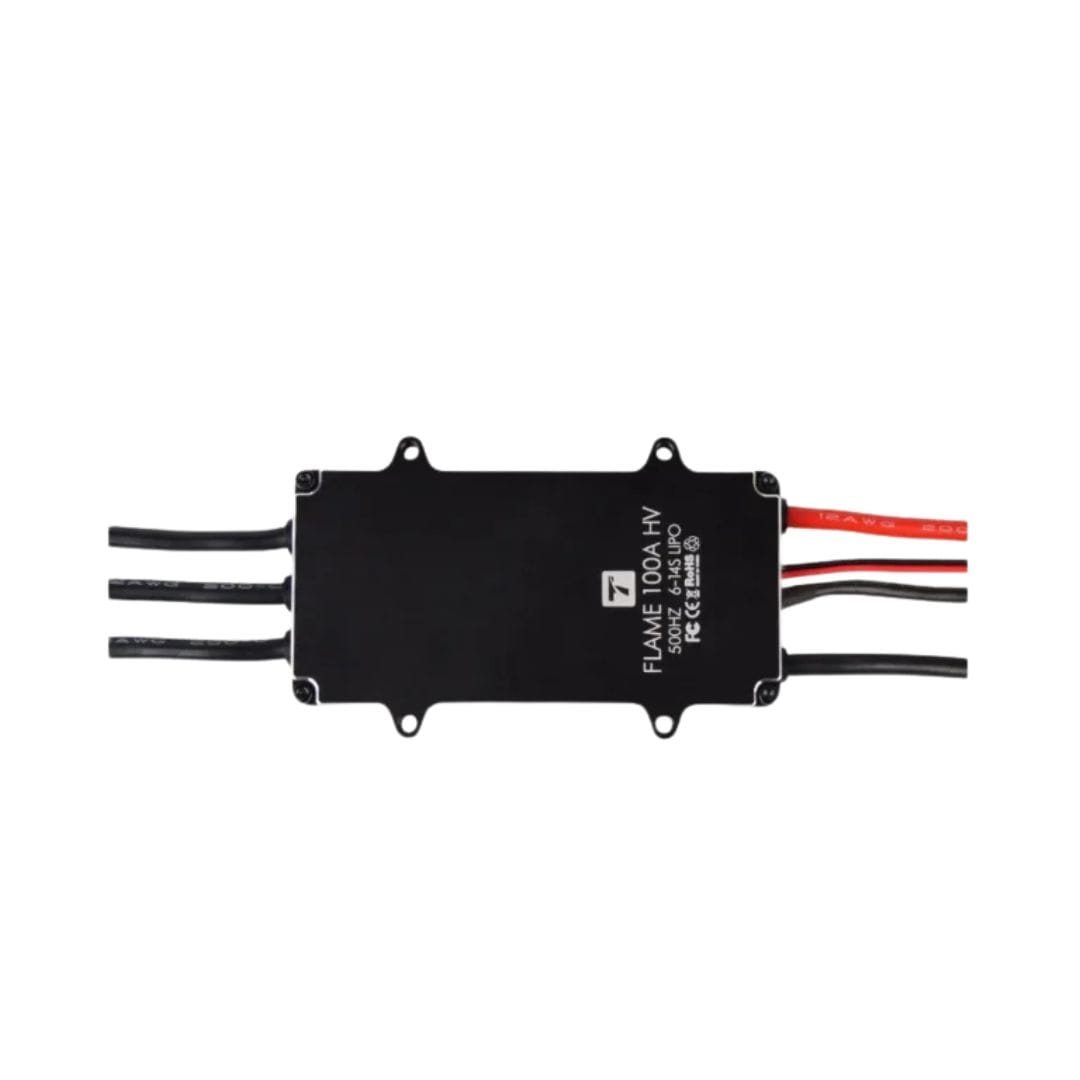

T Motor Flame 100A
T Motor Flame 100A 500Hz 6-14S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Waterproof and Dustproof with IP55 Industrial Standard. This motor is Compatible with U12 Motors and is specially designed for multi-rotors. Tiger Flame ESC can give a continuous current of 100A, and a peak current of up to 120A (10S).

T-Motor Wiring Steps

Features:

  1. Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
  2. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters.
  3. The throttle range can be configured and is fully compatible with all transmitters currently available on market.
  4. Smooth, linear, and precise throttle response.
  5. Our pocket-sized Program Card can be purchased separately for extremely easy programming the ESC in the field.
  6. With a program card, you can activate the music-playing function of the ESC, and totally there are 15 songs that can be selected

Package Includes :

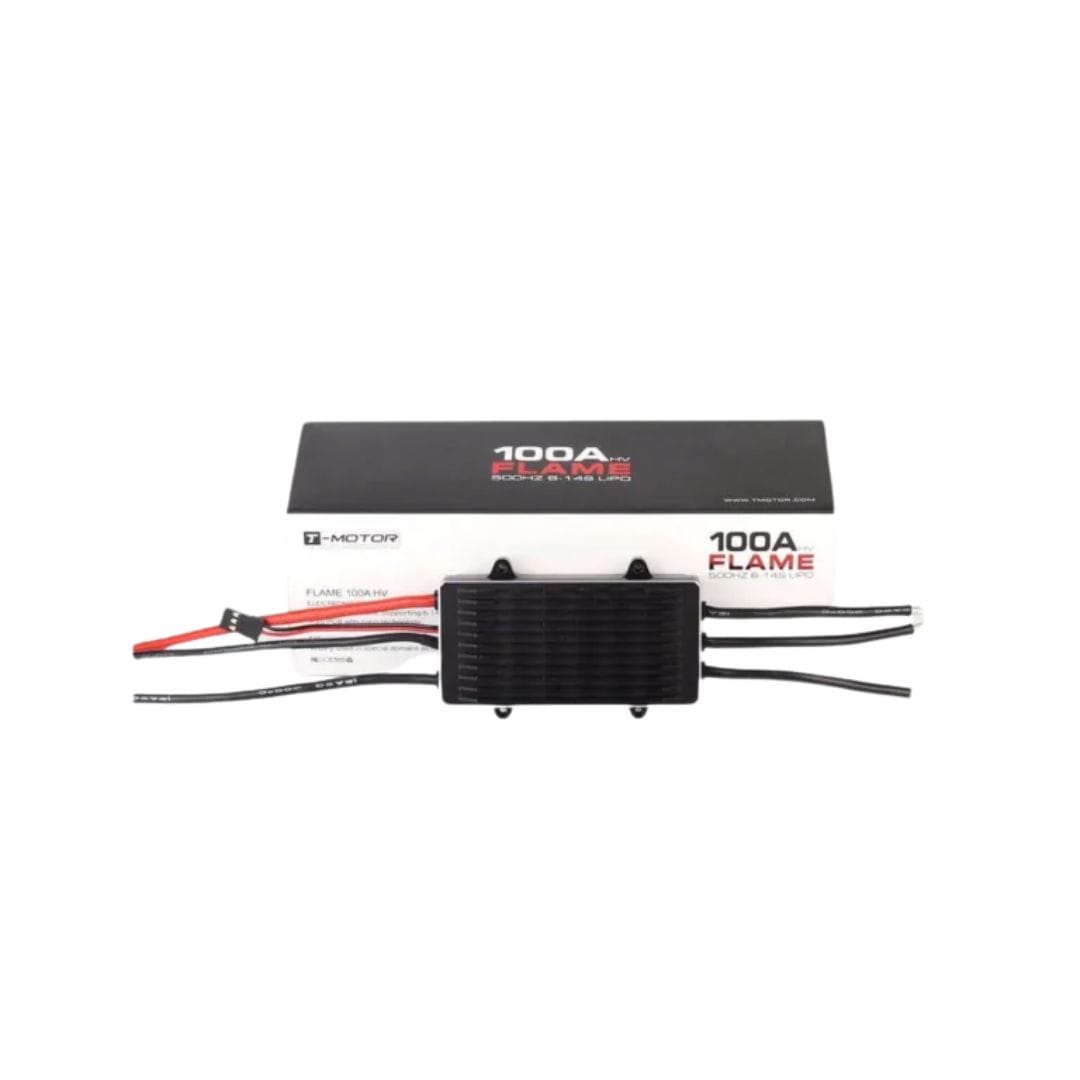

1 x T Motor Flame 100A 14S ESC

Additional Information
Weight 250 g
Dimensions 20 × 7 × 7 cm
