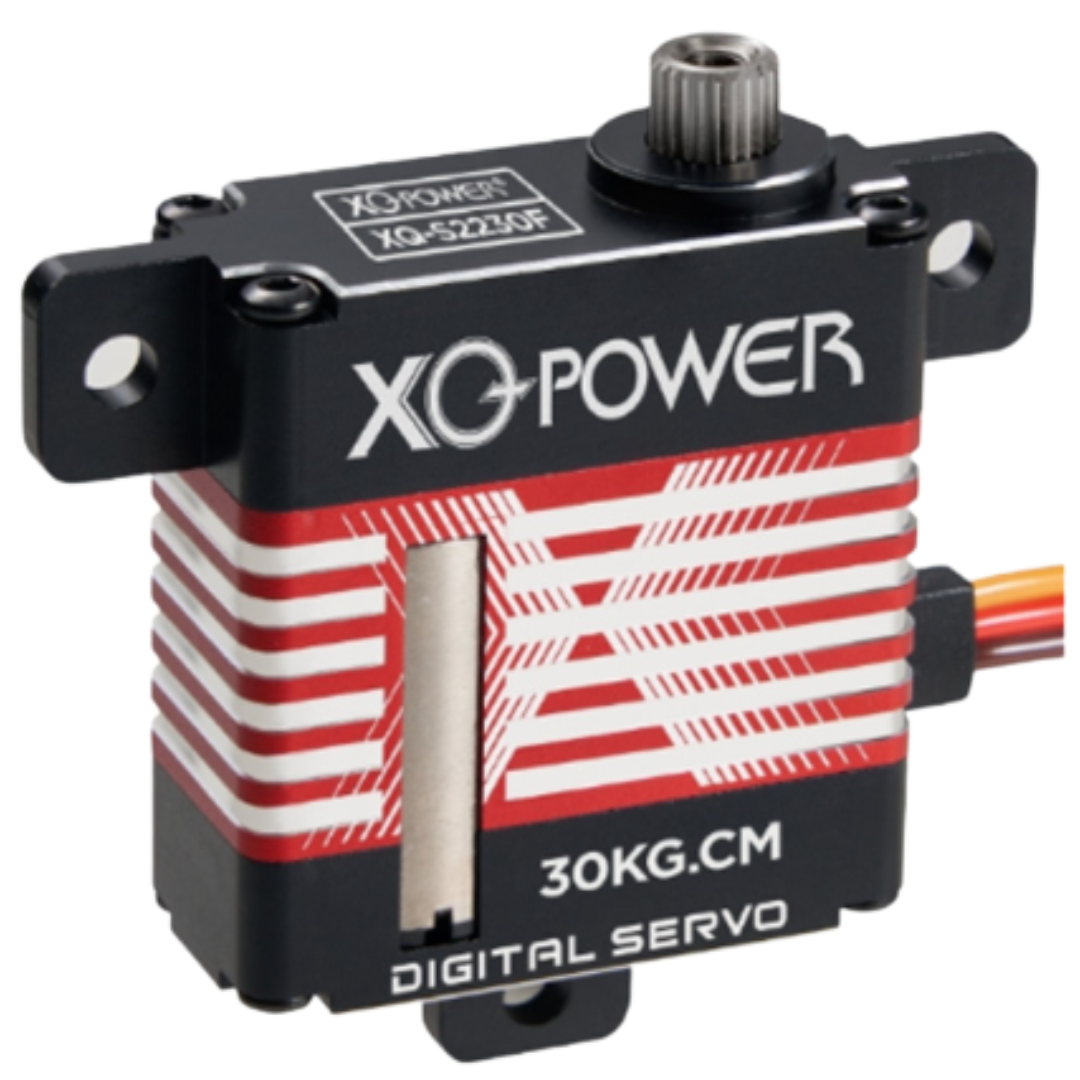

XQ POWER XQ-S2230F Digital Servo

XQ POWER XQ-S2230F Digital Servo

The XQ POWER XQ-S2230F is a high-performance digital servo designed to deliver consistent power, speed, and control precision in compact, demanding applications. Whether you’re building drones, robotic arms, or high-speed RC systems, this servo ensures remarkable efficiency in a lightweight body. Engineered with a CNC-machined all-aluminium case and stainless steel gear system, it balances strength with portability for users seeking both durability and maneuverability.

Voltage-Based Performance Specs

The XQ-S2230F offers reliable voltage compatibility across 6.0V, 7.4V, and 8.4V systems, with performance optimized for high-speed response and torque output.

• At 6.0V: The servo delivers a speed of 0.12 sec/60° with a torque rating of 22 kg.cm (305 oz.in).
• At 7.4V: The speed improves to 0.10 sec/60°, while torque rises to 28 kg.cm (389 oz.in).
• At 8.4V: It peaks with an ultra-responsive 0.09 sec/60° rotation and a maximum torque of 32 kg.cm (445 oz.in).

This versatile range ensures smooth control under diverse load conditions, making it ideal for mission-critical drone maneuvers and responsive mechanical systems.

Build and Material Excellence

Built with stainless steel gears, the XQ-S2230F provides enhanced resistance to wear and mechanical stress. Its CNC all-aluminium housing not only improves durability but also boosts heat dissipation during high-load operations. These material choices extend operational life and maintain performance over long-term use. Moreover, the coreless motor used in this model reduces internal friction, delivering faster response time and smoother motion compared to conventional motors.

Dimensions and Compatibility

With dimensions of 12×30×35.5 mm and weighing under 50g, the XQ-S2230F fits easily into lightweight or compact builds without adding bulk. It’s a top choice for UAV platforms, RC vehicles, or compact automation systems needing fast, powerful, and consistent servo performance.
