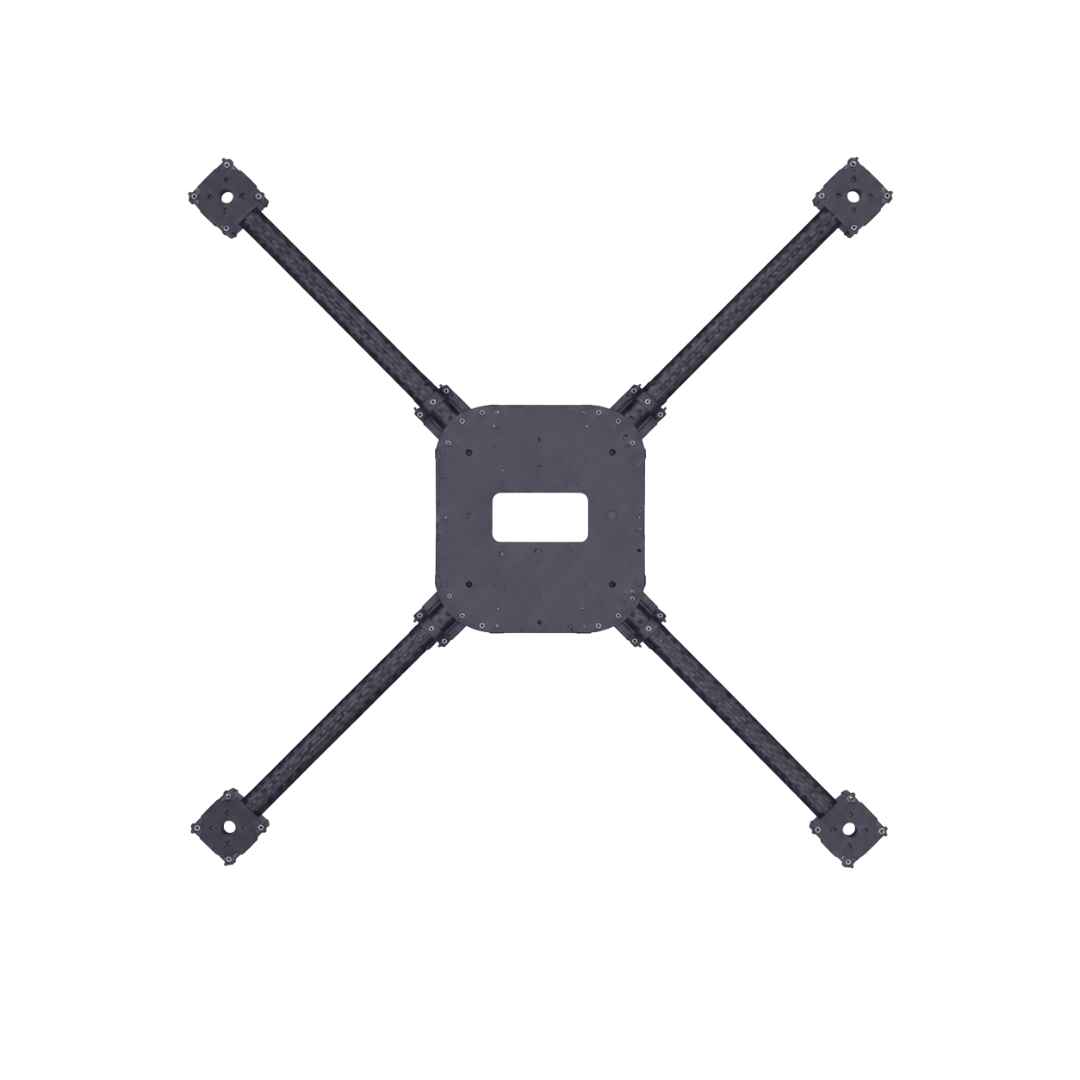

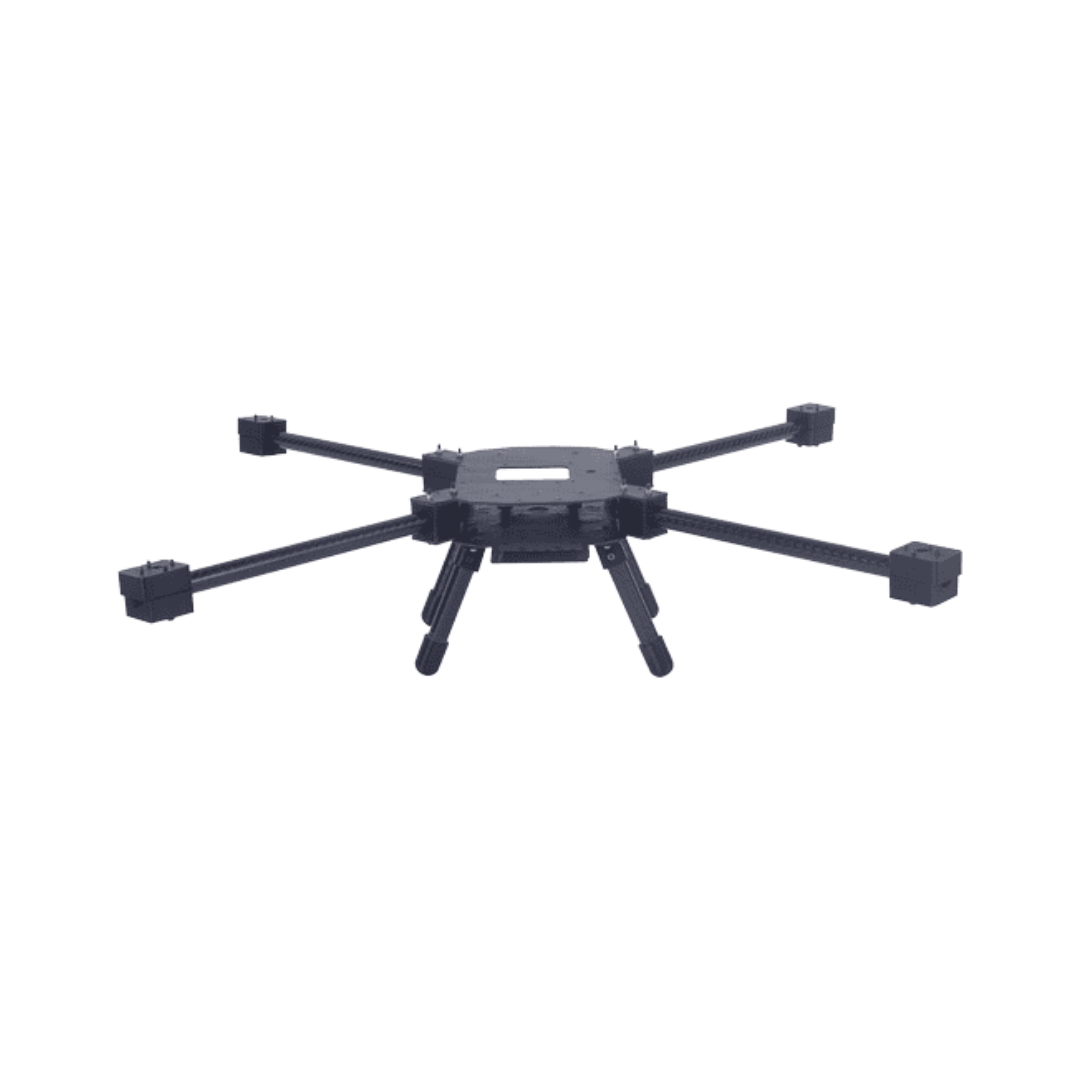

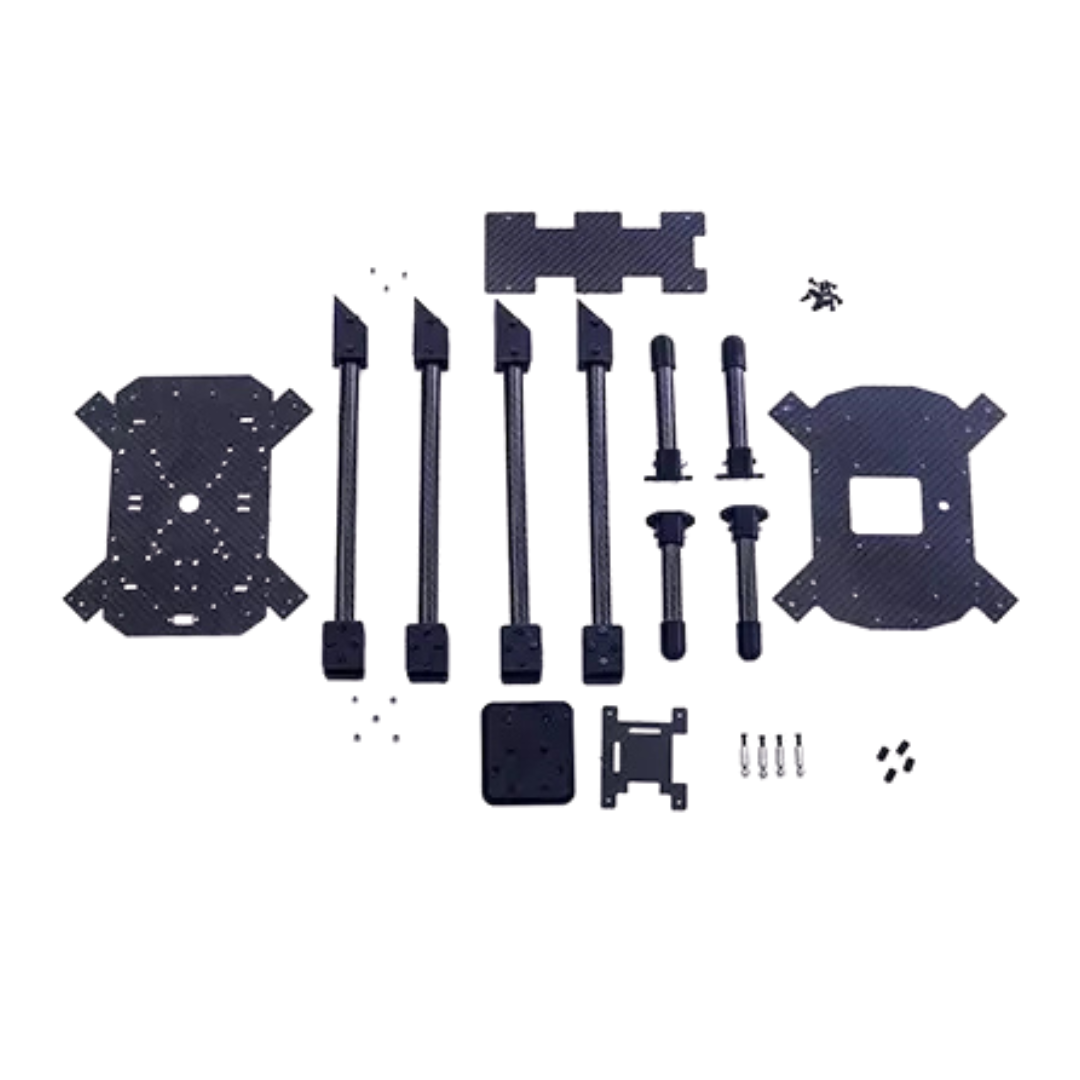

axl 30 Drone Kit

The axl 30 Drone Kit is a high-performance modular DIY quadcopter platform built by axldrone. It offers developers and researchers an engaging hands-on assembly experience. Furthermore, this adaptable platform bridges educational drone building with commercial industrial applications. Builders enjoy total freedom while creating custom multirotor aircraft for specialized missions. Consequently, your development team gains an exceptional baseline for custom flight programming.

Key Features

• The axl 30 Drone Kit platform uses elite carbon fiber and aircraft-grade aluminum brackets.

• Z16 CNC aluminum folding arm joints transform wide frames into compact travel sizes.

• Impact-resistant Hyper ABS and PETG 3D-printed parts resist airborne torsion effectively.

• The modular structure allows operators to swap single components quickly in field settings.

• Heavy-duty frame designs support maximum payload capacities up to 4000 grams.

• Included 380 KV motors deliver high efficiency for long endurance mapping operations.

Variant Breakdown: 30 vs 30L vs 30XL

This versatile product series comes in three distinct frame configurations. The standard axl 30 model features a compact 509x509x147 mm frame weighing 560 grams with a 3000g load capacity. In addition, the extended 30L model offers a 509x904x182 mm long-frame layout with 15-inch folding propellers. Moreover, the flagship 30XL variant provides maximum structural reinforcement weighing 1530 grams for demanding heavy-lift payloads.

Applications

The axl 30 Drone Kit series excels in academic robotics labs, FPV training, and aerial mapping. For example, researchers utilize its open framework to test custom flight control algorithms. Additionally, tactical surveillance teams mount specialized camera gimbals for long-distance monitoring. Therefore, developers choose this modular quadcopter kit for prototyping next-generation UAV solutions.

Specifications

• Frame materials integrate carbon fiber, PETG, Hyper ABS, and aluminum components.

• Propulsion options include four 380 KV brushless motors with 30-40A ESCs.

• Included 15-inch nylon fiber propellers deliver stable high-altitude flight performance.

• Power configurations support high-capacity axl everfly 12000 mAh battery packs.

• Maximum frame payload limits reach up to 4000 grams on long-frame models.

• The Z16 folding mechanism enables rapid field deployment and transportability.

Build your custom enterprise quadcopter today with the axl 30 Drone Kit.
