BotStack BotWing F405 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps

BotStack BotWing F405 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps

The BotStack combo is a premium power system for modern FPV drones. It pairs the BotWing F405 Flight Controller with the high-performance BotDrive 55A 4-in-1 ESC. This stack is specifically designed for pilots who value both power and simplicity. It features a unique solderless design that streamlines the building process significantly. Therefore, it is an excellent choice for beginner builders and professional racers alike. The 30.5×30.5mm mounting pattern ensures compatibility with most standard drone frames.

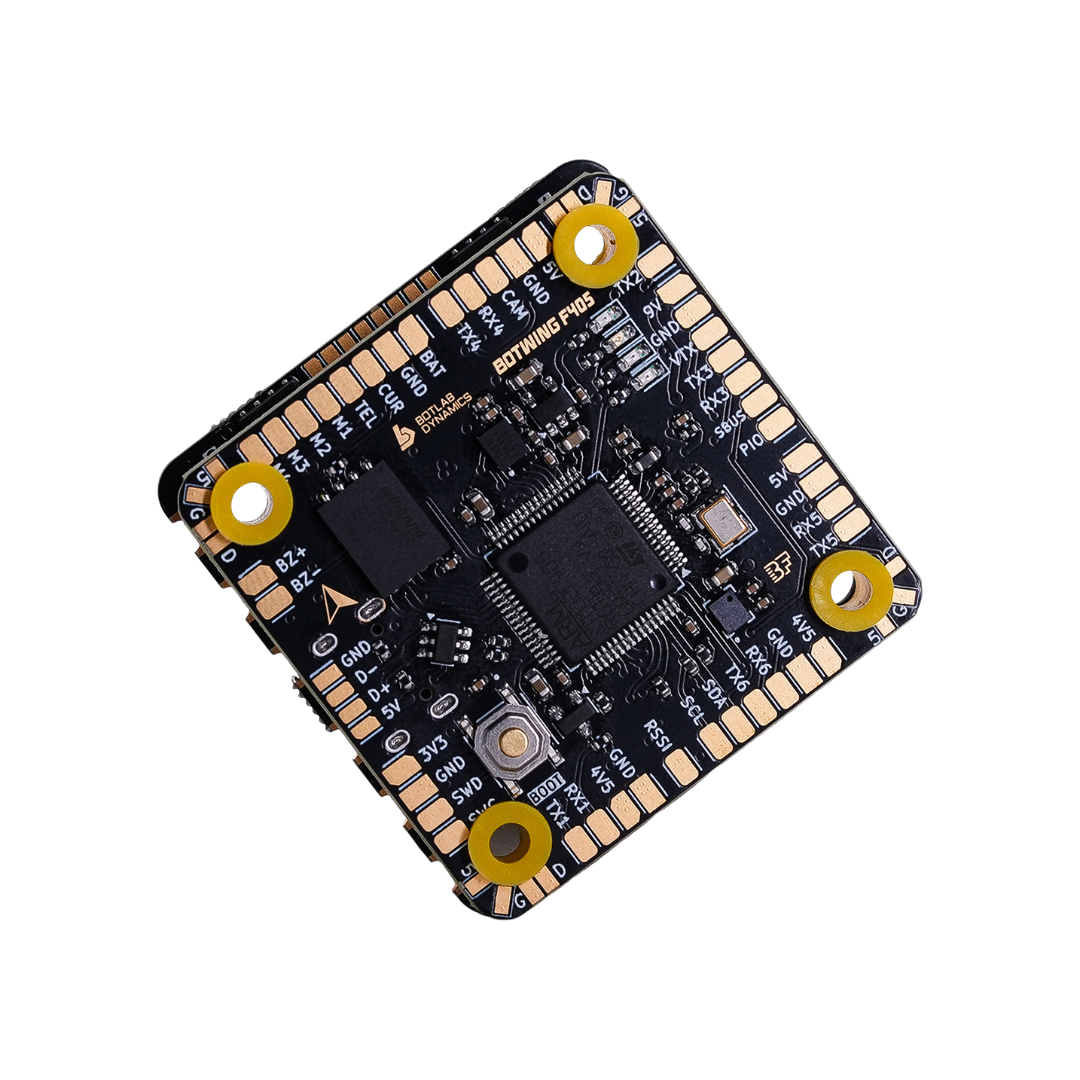

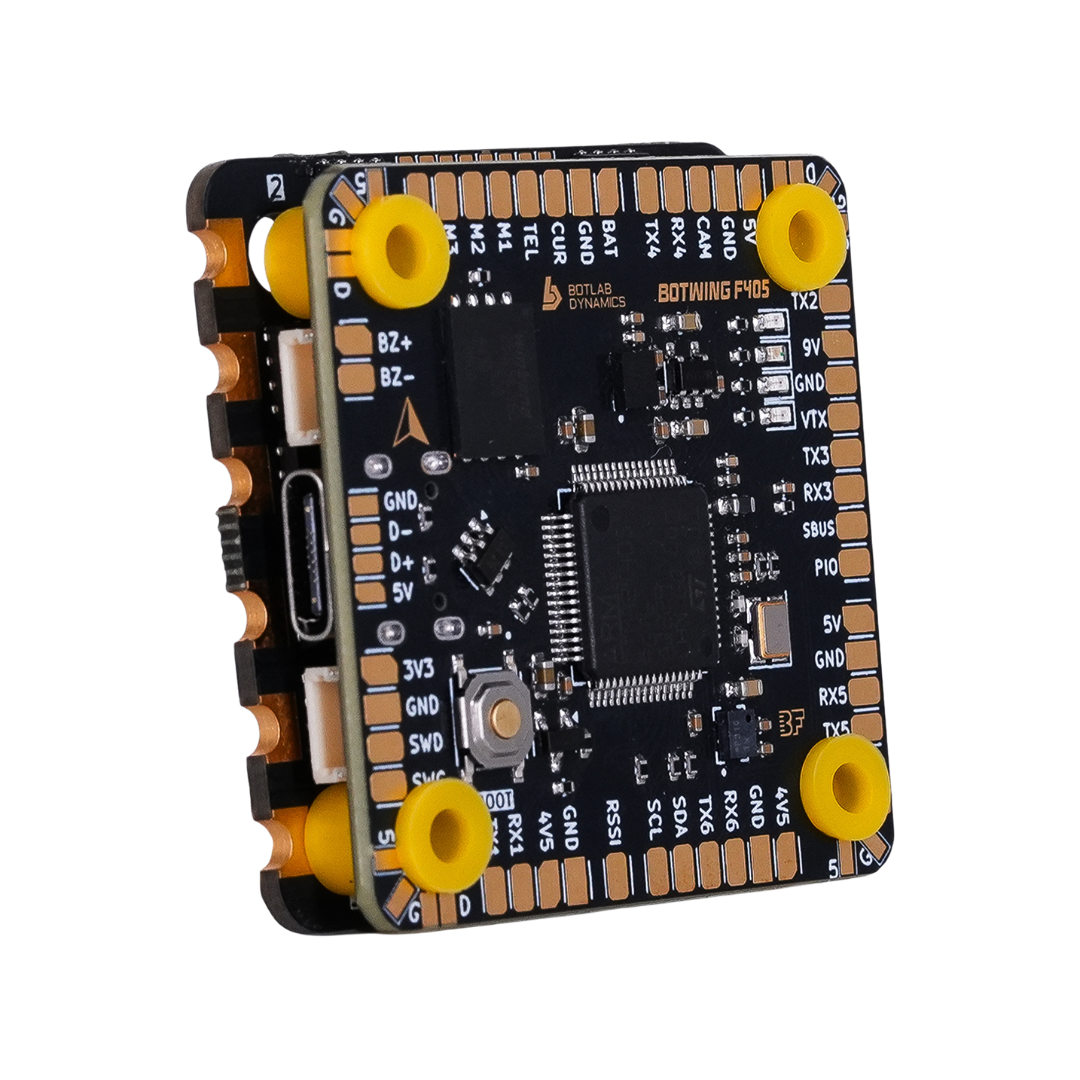

BotWing F405 Flight Controller

The heart of this stack is the STM32F405 MCU which handles complex flight algorithms with ease. It includes a high-precision ICM42688P gyro for ultra-stable flight performance. Because it supports Betaflight, iNav, and Mission Planner, you have total control over your tuning. The board features six UARTs for connecting GPS, receivers, and LED strips without hassle. Additionally, a dedicated plug-and-play port for the DJI Air Unit makes digital HD setup effortless. The onboard 32MB Blackbox logs every flight detail for easy troubleshooting.

BotDrive AM32 55A ESC

Driving your motors is the robust BotDrive 4-in-1 ESC. It comes pre-installed with AM32 open-source firmware for the smoothest throttle response possible. Each of the four channels supports a 55A continuous current rating. Consequently, it can handle high-torque motors on 3S to 6S LiPo batteries. The ESC supports DShot600 protocols and provides real-time telemetry data to your flight controller. It also includes built-in protection against over-current and short circuits for added peace of mind.

Effortless Installation

The solderless interface allows you to connect components using high-quality JST cables. This design reduces the risk of heat damage to sensitive pads during assembly. Moreover, the package includes a 1000uF capacitor to filter out electrical noise effectively. Multiple BEC outputs provide clean 5V and 9V power for all your peripherals. You can quickly swap parts in the field thanks to the plug-and-play architecture. This combo delivers a reliable foundation for cinematic, freestyle, or racing builds.
