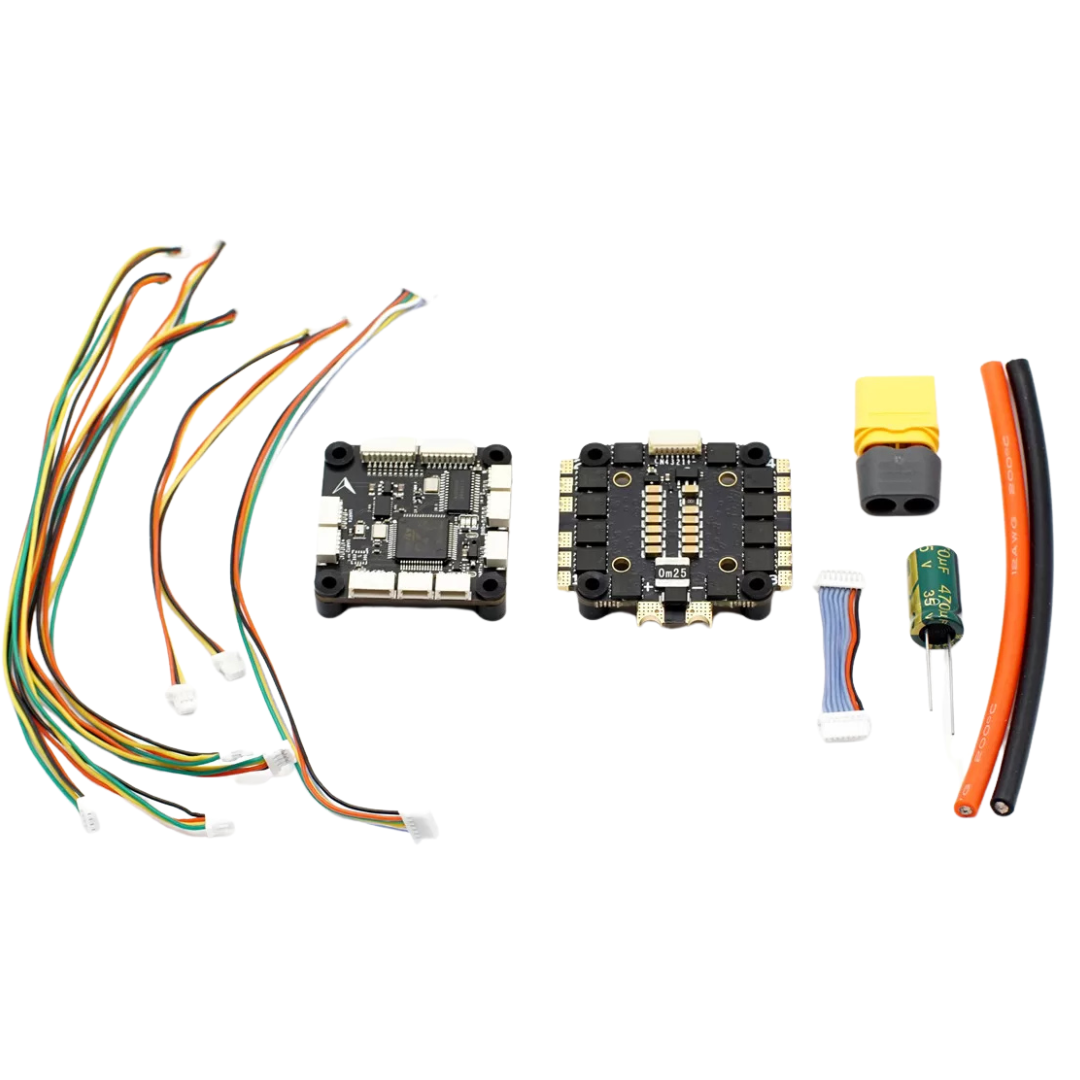

MicoAir F405 V2 Stack with 4in1 50A Bluejay 48K ESC

MicoAir F405 V2 Stack with 4in1 50A Bluejay 48K ESC

The MicoAir F405 V2 Stack is a professional-grade flight system for modern drones. It combines a high-performance F405 flight controller with a 50A Bluejay ESC. This stack supports both INAV and Ardupilot open-source firmwares perfectly. It offers pilots a wide range of customization and flight control options. Firmware updates are simple using Mission Planner or the INAV Configurator. Consequently, it is an ideal choice for long-range and autonomous missions. The MicoAir F405 V2 Stack delivers unparalleled stability for aerial photography. It ensures a smooth and reliable flight experience in every condition.

Key Features

• The MicoAir F405 V2 Stack features the high-precision BMI088 IMU.
• It is the first F405 controller to combine BMI088 with INAV support.
• A 50A ESC utilizes Bluejay 48K firmware to reduce electrical noise.
• High-performance MOSFETs ensure very low heat generation under heavy loads.
• The stack provides 6 UARTs and 10 PWM outputs for all peripherals.
• It includes a dedicated plug-and-play port for the DJI O3 Air Unit.
• Socket-based connections eliminate the need for complex internal soldering tasks.

Specifications

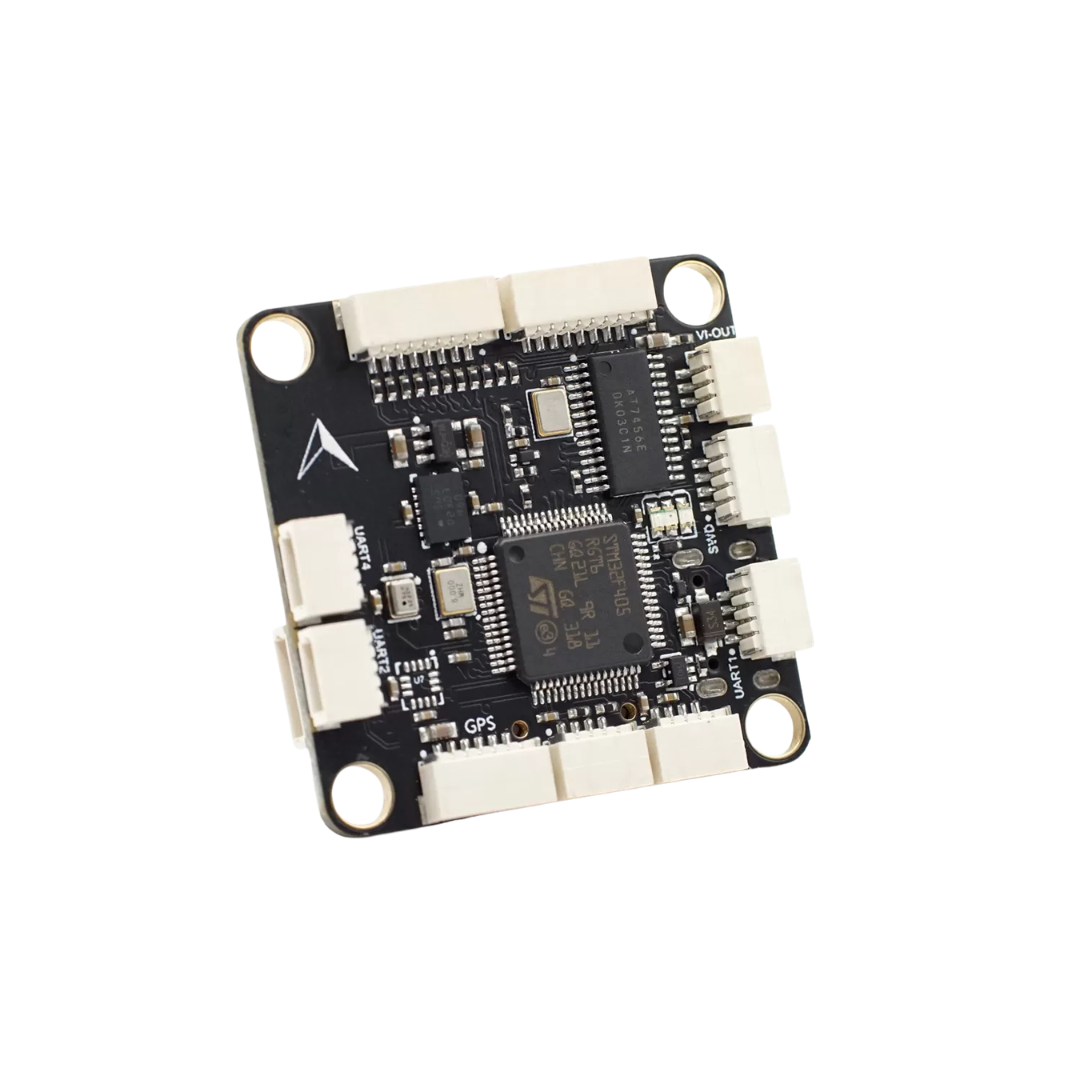

The MicoAir F405 V2 Stack operates on a 3S to 6S Lipo input. It features an STM32F405 microcontroller running at 168MHz. The ESC uses 40V 165A MOSFETs with a very low resistance of 1.1mR. This efficiency significantly extends the lifespan of your drone electronics. Furthermore, the flight controller includes an integrated OSD and I2C port. It uses a standard 30.5×30.5mm mounting pattern for easy frame installation. The Type-C USB interface allows for fast and reliable data connectivity. This makes the MicoAir F405 V2 Stack a robust heart for any aircraft.

Applications

This stack is perfect for cinematic drones requiring smooth EIS effects. It works excellently for GPS-based autonomous missions using Ardupilot. Pilots use the MicoAir F405 V2 Stack for high-speed freestyle FPV flying. The vibration-resistant IMU makes it ideal for larger long-range frames. Additionally, the high current capacity supports heavy-lift agricultural or delivery drones. It provides the precise positioning needed for professional industrial inspections. Whether for racing or research, it delivers top-tier flight performance.

Connectivity

Integrating the MicoAir F405 V2 Stack into your frame is very straightforward. All major components use secure socket connections for a clean build. It supports a wide range of external devices via 6 available UARTs. The stack handles DJI digital video systems and analog VTX setups easily. Therefore, you can build a versatile drone with minimal wiring complexity. It is a comprehensive and cost-effective solution for advanced drone builders.
