Eachine TX 805S 5.8Ghz 1.6W

Eachine TX 805S 5.8Ghz 1.6W

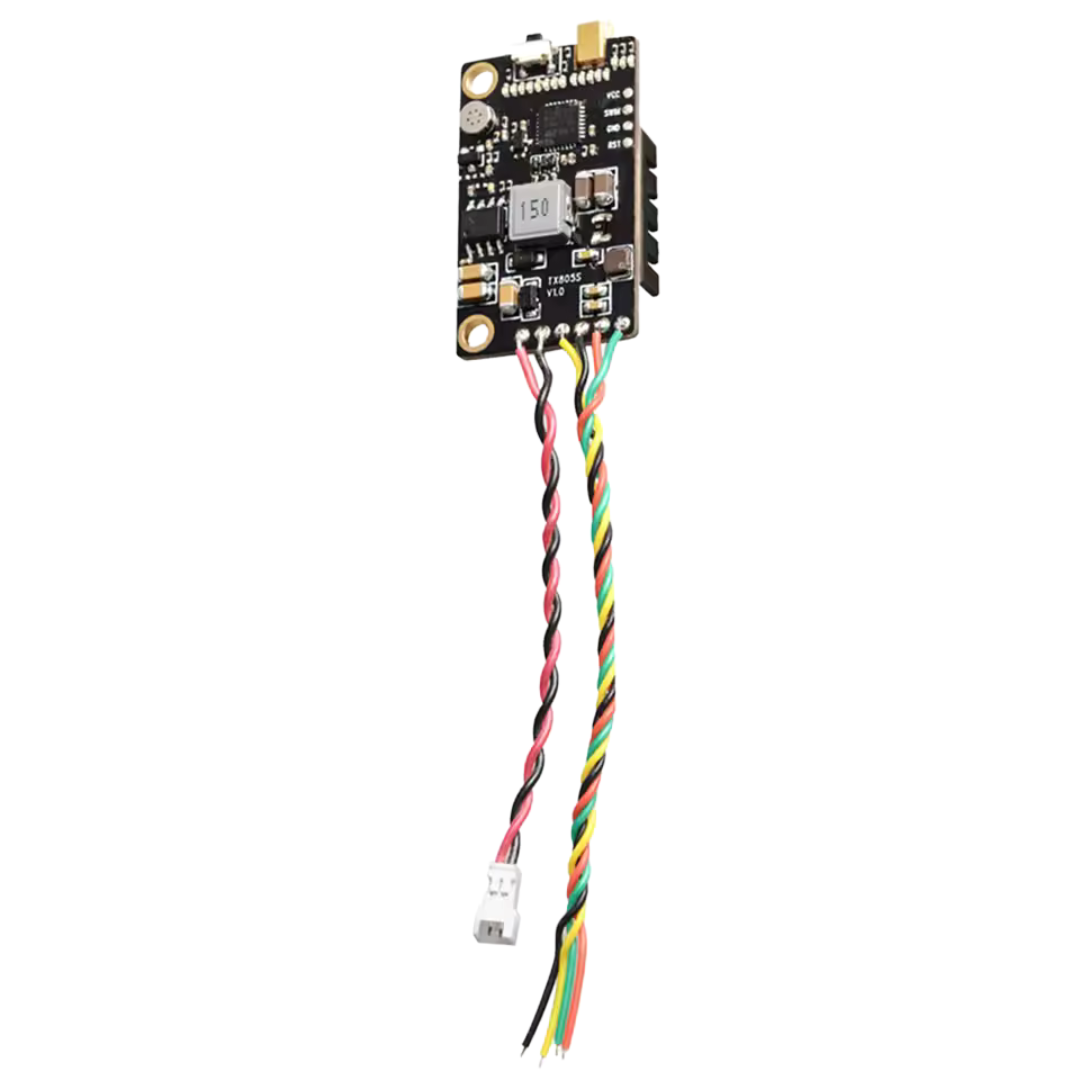

The Eachine TX805S VTX is a high-power video transmitter for long-range FPV. It delivers a massive 1.6W output for extreme signal penetration. This module operates on the 5.8GHz frequency with 40 available channels. It features a robust heatsink to manage high thermal loads. You can easily change settings using the onboard button or SmartAudio. Consequently, it provides a reliable video link for deep-range missions. This transmitter ensures your FPV feed remains clear behind obstacles. The Eachine TX805S VTX is a powerful solution for modern drone builds. It offers professional performance for serious freestyle and racing pilots.

Key Features

• The Eachine TX805S VTX offers 1600mW maximum output power.

• It supports Pitmode, 25mW, 200mW, 600mW, 800mW, and 1600mW levels.

• SmartAudio support allows for remote channel and power adjustments.

• An integrated microphone captures real-time motor and wind noise.

• The MMCX antenna connector provides a very secure attachment point.

• A built-in 5V BEC output powers your FPV camera directly.

• Seven LED indicators show the current band and channel status clearly.

Specifications

The Eachine TX805S VTX operates on a wide 7V to 24V input. It features a standard 30.5mm by 30.5mm mounting pattern. The unit weighs 12.0g including the protective metal heatsink. Furthermore, it supports 5 bands including the popular Raceband frequencies. The average current draw is 800mA at the 1600mW power setting. It uses a high-quality MMCX to SMA pigtail for antenna mounting. Because of its 3.6cm length, it fits most standard stacks easily. This makes the Eachine TX805S VTX a highly versatile video component.

Applications

This transmitter is perfect for long-range FPV pilots exploring mountains. It works excellently for freestyle flying in high-interference urban areas. Pilots use the Eachine TX805S VTX for robust video in thick forests. The adjustable power levels suit both racing and cruising needs. Additionally, it serves as a great primary VTX for larger fixed-wing planes. Its high power ensures a stable feed during high-speed maneuvers. Whether for hobbyist fun or work, it delivers a superior signal.

Connectivity

Integrating the Eachine TX805S VTX into your drone is very simple. It connects to your flight controller via the SmartAudio pin. You can solder wires directly to the large pads for power. The MMCX connector prevents the antenna from popping off during crashes. Therefore, you always have a firm and stable video connection. It is a comprehensive and cost-effective package for the FPV community.
