Elarion VTX 2.5W

Elarion VTX 2.5W

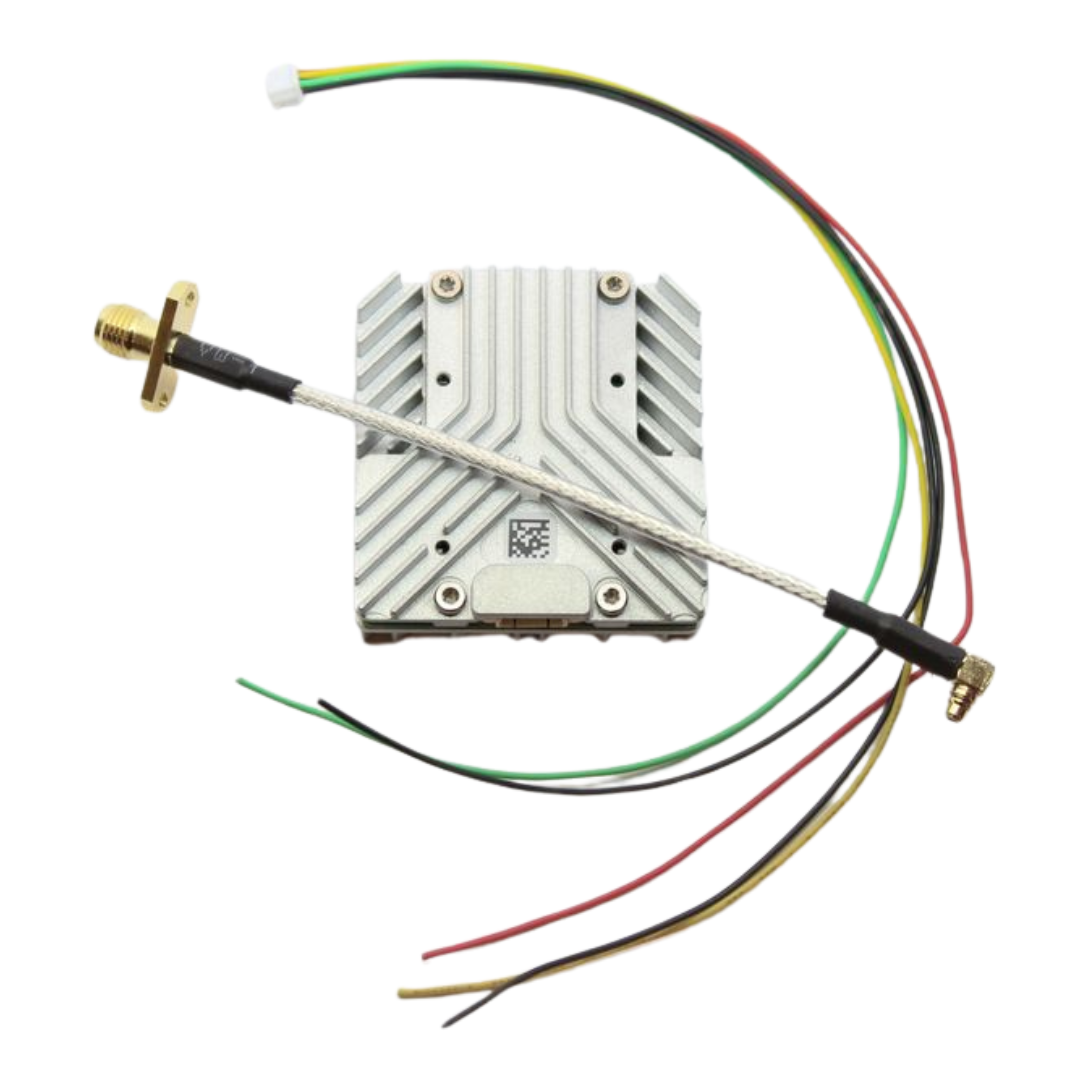

The ELARION VTX – 2.5W is a high-power video transmitter designed for long-range FPV drones. It operates across the 5.8 GHz ISM frequency band for reliable transmission. Additionally, this unit delivers up to 2.5W of maximum output power. Consequently, pilots achieve crystal-clear video feeds even through dense obstacles.

Versatile Performance and Control

Setting up this video transmitter is fast and simple for any builder. First, connect your camera to the standard 75-ohm video input port. Next, attach your antenna securely using the onboard MMCX connector. The device supports both NTSC and PAL video formats out of the box. Furthermore, pilots can adjust power levels dynamically during their flights. You can choose between 25mW, 100mW, 1W, and 2.5W power outputs. Thus, you conserve power when flying close to your ground station.

Controlling your settings during flight is effortless with modern flight controllers. Pilots can easily adjust settings on the ELARION VTX – 2.5W using SmartAudio. In addition, it supports MSP and Tramp serial protocols for full compatibility. Therefore, you can configure channels and power directly from your radio controller. The robust ELARION VTX – 2.5W maintains a clean video signal over long distances. Moreover, its maximum power consumption remains efficient at just 9 watts. This compact transmitter weighs only 36 grams to save crucial payload capacity. As a result, your FPV drone maintains high speed and agility in flight.

Key Features

• Power levels include 25mW, 100mW, 1W, and 2.5W options.

• Maximum output power reaches 34 dBm with tight tolerance.

• SmartAudio, MSP, and Tramp protocols allow remote control setup.

• Frequency range spans from 5.6 GHz to 5.9 GHz.

• Industry-standard MMCX antenna connector provides durable connection strength.

• Video format support includes NTSC and PAL standards.

Applications

Professional drone racers and freestyle pilots depend on maximum signal strength. For instance, long-range FPV navigators require reliable long-distance video feeds. Similarly, commercial inspection drones benefit from high output power in complex environments. Therefore, the ELARION VTX – 2.5W is an ideal choice for custom drone builds. Upgrade your setup today to experience superior FPV range and stability.
