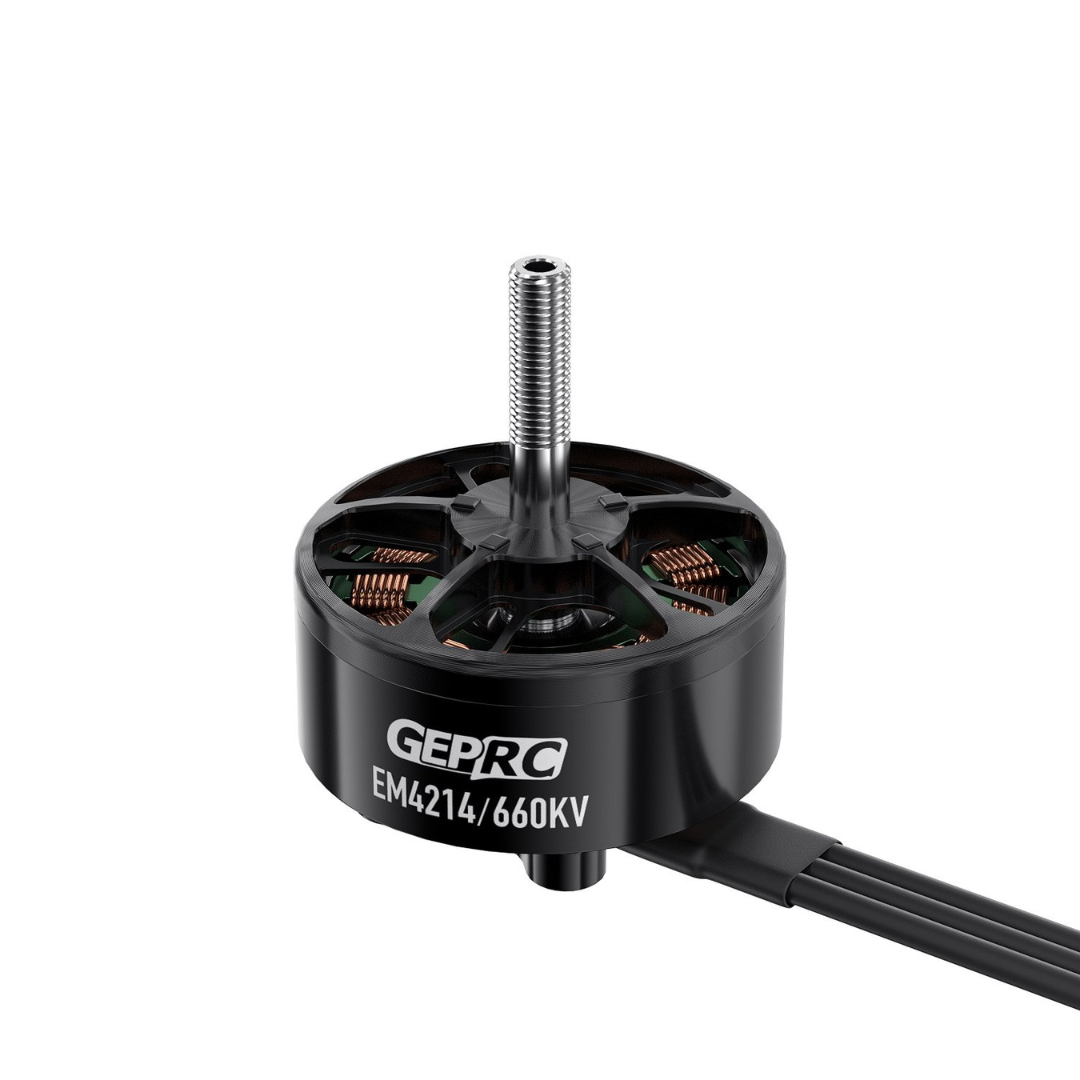

GEPRC EM4214 660KV Motor

GEPRC EM4214 660KV Motor

The GEPRC EM4214 660KV Motor is a premium, heavy-duty brushless motor purpose-built for giant-scale, long-range FPV drones and heavy-lift cinematic platforms. Part of GEPRC’s high-end EM series, this motor is specifically engineered to swing massive 12-to-14-inch propellers on 6S LiPo power configurations. Boasting a high-torque magnetic circuit design, premium N52H curved magnets, and a massive peak power threshold of 2120W, it provides cinematic pilots and commercial operators with the raw lifting capacity, mid-throttle stability, and long-range efficiency required to carry heavy camera payloads over vast distances.

High-Torque Architecture and Premium Materials

To handle the heavy mechanical strain of large-scale drone flight, the EM4214 utilizes a 12N14P configuration wound with a high-purity, single-strand copper layout. This maximizes copper packing density and vastly improves thermal dissipation under continuous high-current draws up to 90A. The motor features an ultra-strong M6 hardened steel propeller shaft to eliminate shearing risks during aggressive braking maneuvers, while internal rotation is managed by world-class, genuine Japanese NMB bearings. This premium combination delivers a completely vibration-free profile, resulting in smoother flight performance and crystal-clear cinematic video feeds.

Key Features

• Next-generation EM series design optimized specifically for long-range, payload-heavy FPV aircraft.

• High-strength M6 steel propeller shaft prevents spindle bending during high-load maneuvers.

• Advanced high-torque magnetic circuit with premium N52H magnets ensures rapid throttle recovery.

• High-grade Japanese NMB bearings deliver ultra-smooth rotation and long-term durability.

• Single-strand copper winding configuration optimizes electrical efficiency and reduces heat buildup.

• Massive 800mm length 14AWG silicone motor leads cleanly reach center-mounted ESC plates on large frames.

• Standard 30mm x 30mm base mounting layout fits popular long-range heavy-lift drone arms.

• Rated to deliver a staggering 2120W of maximum output power to lift substantial cinema gear.

Long-Range Flight Efficiency and Systems Integration

Operating a large 12-inch or 14-inch FPV drone requires a motor that can balance immense torque with high power efficiency. At 660KV, the EM4214 is perfectly spec’d for 25.2V (6S LiPo) power loops, allowing the drone to cruise efficiently at lower amp draws while preserving battery life for extended range. The motor pairs flawlessly with heavy-duty 80A to 100A electronic speed controllers (ESCs). Additionally, the motor is supplied with an extra-long 800mm lead wire, eliminating the need for tedious manual wire splicing when building large quadcopters or custom commercial UAV platforms.
