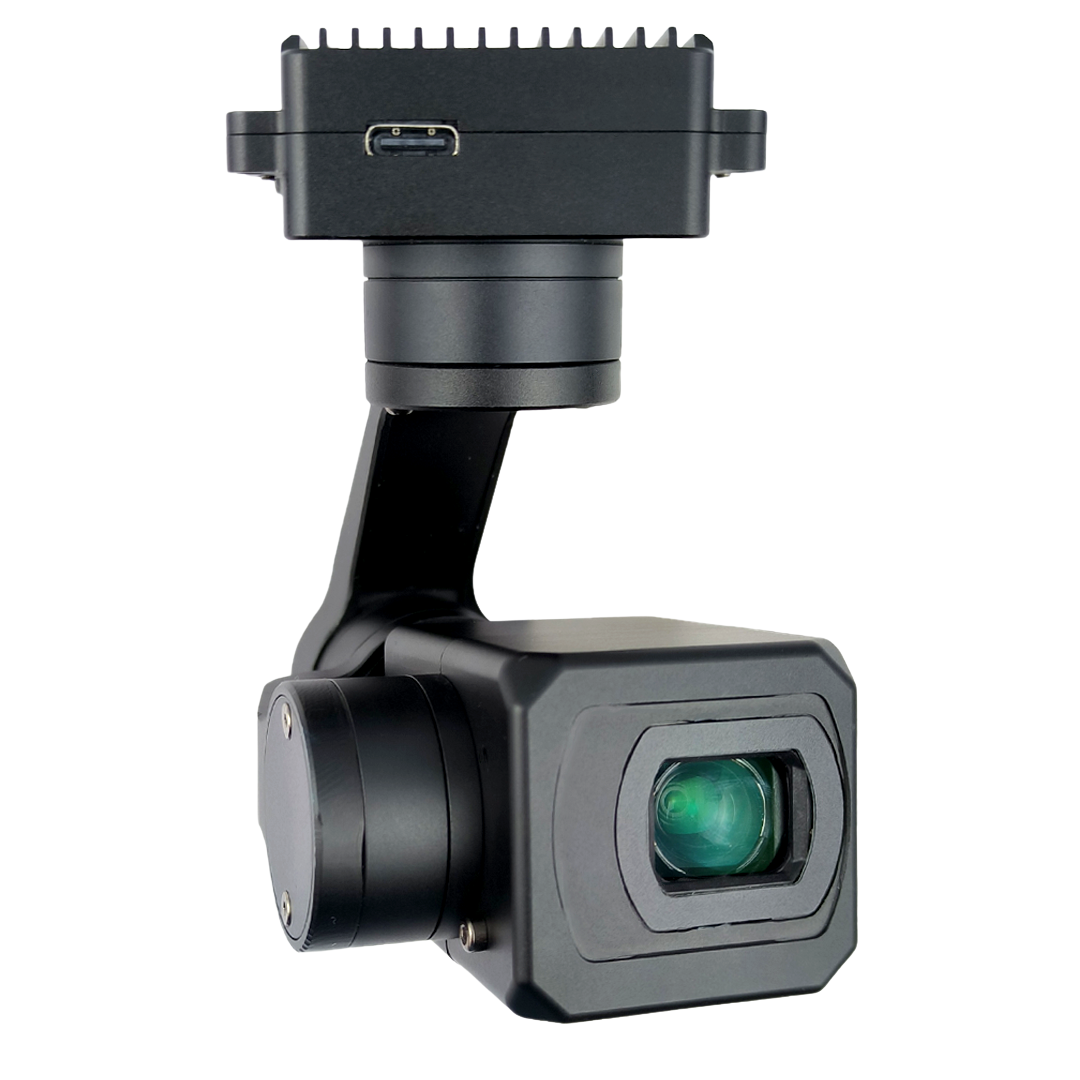

image showcasing picture of Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal

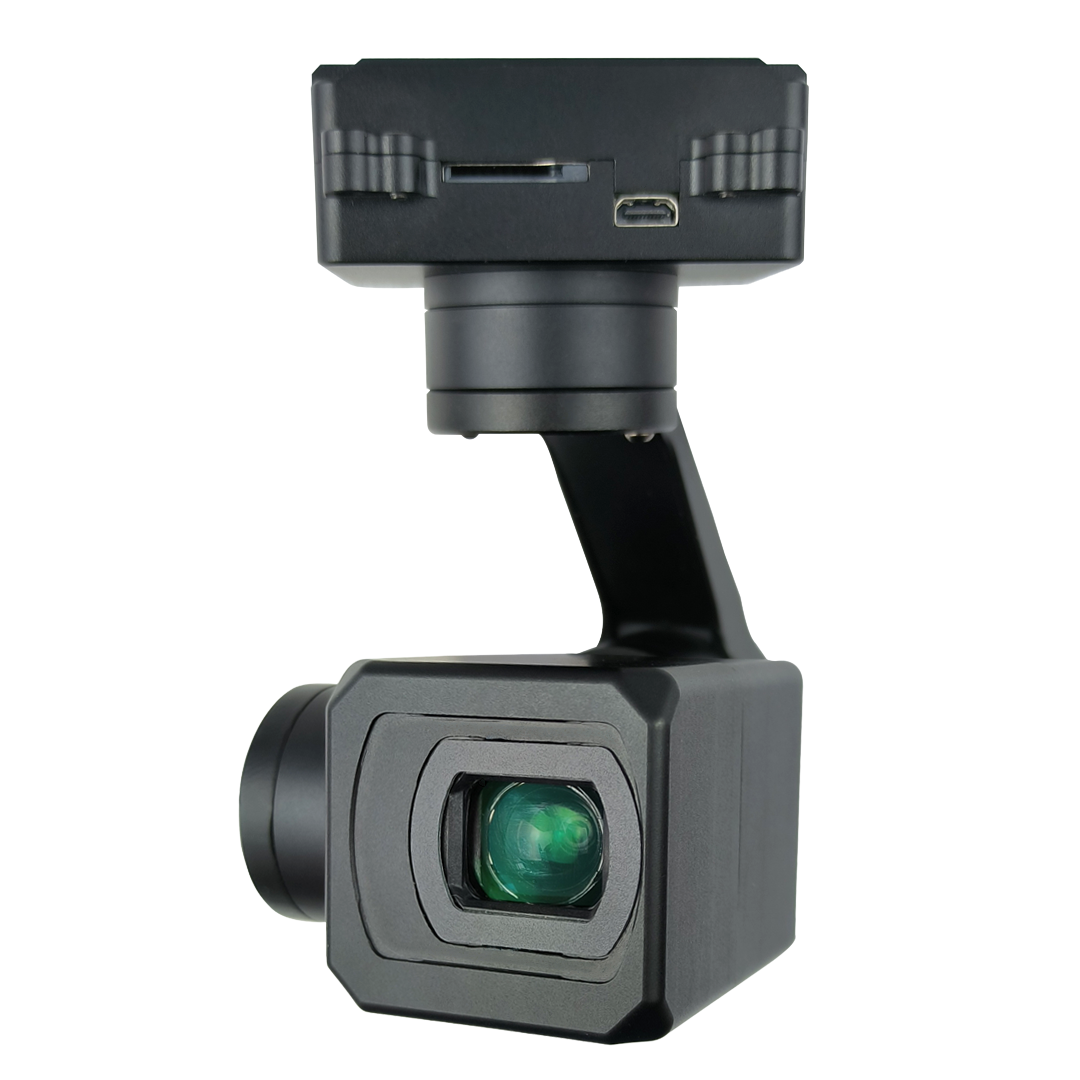

image showcasing picture of Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal
image showcasing picture of Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal

Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal

in TOPOTEK
Sku: CM-149-3026

Available in stock

Warranty
Warranty Upto 1-Year

Enquire Now
Check delivery availability:

Category: Brand:
5 days replacement policy on manufacturing defects Know More
Upto one year warranty Know More
Enquire Now Know more
Description

Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal

Topotek DHU05S35 45x Hybrid Zoom Dual Output Small Gimbal is a single zoom gimbal that integrates 45x① hybrid zoom camera and high-precision professional 3-axis stabilization PTZ. It adopts IP、HDMI dual output, IP control, adopts high-precision encoder FOC control scheme PTZ. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports② and S.BUS and network can control the camera and PTZ, supporting local TF dual channel recording and photography.



DHU05S35 45x hybrid zoom dual output small gimal

DHU05S35 45x hybrid zoom dual output small gimal


Voltage：

  DC 12V-26.2V

Power：

  Static 6W


Roll angle action range：

  -45°～ +45°

Pitch angle action range：

  -45°～ +120°


Heading Angle action range：

  -145°～ +145°

Pitch and Roll Jitter Angle：

  ±0.02°


Horizontal Angle jitter：

  ±0.03

One-click back to center function：

  One key automatic fast return to the initial position


PTZ control speed adjustable：

  When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera

Control mode：

  Support network IP, S.Bus and Serial port control (Optional PWM control)



DHU05S35 45x hybrid zoom dual output small gimal



SENSOR：

  1/3 inch 4MP CMOS SENSOR


Optical Zoom：

  5x HD optical zoom lens, f=5±10%～25±10%mm


AF Time：

  Real time fast focusing, focusing time < 1s


Video output：

  Network RTSP 1080p output, video stream local TF storage


Field Angle(FOV)：

  D : WIDE 61.1º TELE 12.41º   H : WIDE 50.12º TELE 10.81º

V : WIDE 38.07º TELE 8.13º



DHU05S35 45x hybrid zoom dual output small gimal



Device Size：

   99mm × 120mm

Work Condition：

  -10℃ to +45℃ / 20% to 80% RH


Storage Condition：

  -20℃ to +60℃ / 20% to 95% RH

Weight (Not including dampers)

  210±10g

DHU05S35 45x hybrid zoom dual output small gimal



Min tracking target size：

  16×16 pixels

Max tracking target size：

  256×256 pixels


Target Memory Time：

  2 seconds

Tracking speed：

  50 Pixel/Frame max


Simultaneous detection qty：

  100 targets max

Recognized categories：

  Human and Vehicle


Min detection target size：

  32×32 pixels

Debounce：

  Dynamic stabilization



DHU05S35 45x hybrid zoom dual output small gimal
