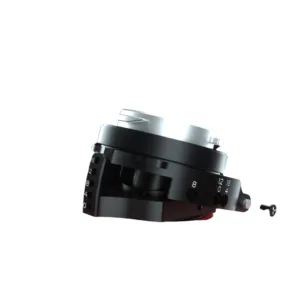

Viewpro A609 Gimbal Camera 281,875.00 excl. GST


Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 450~1000mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output  IP (RTSP/UDP 720p/1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)
Card reading online HTTP read pictures
Control method UART / S.BUS/ TCP(IP output version)/UDP(IP output version)/RTSP
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -60°~120°,    Roll: ±60°,   Yaw/Pan: ±150°
Angle scope of software design Pitch/Tilt: -45°~115°,   Yaw/Pan: ±140°
Vibration angle Pitch/Roll/Yaw: ±0.02°
One-key to center
EO Camera Spec
Imager Sensor 1/2.9″ CMOS Sensor
Image pixel 2MP
Picture quality Full HD 1080 (1920*1080)
Lens Focus Length 6mm
Angle of View (D,H,V) FOV:D 60°    H 50°    V 28°
IR Thermal Imager Spec
Focus Length 9.1mm
Horizontal FOV 51.9°
Vertical FOV 30.5°
Detective Distance 1100 meters
Recognize Distance 250 meters
Verified Distance 170 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD ≤50mK@F1.0 @25℃
Color palette White,black,pseudo color
Sync correct time Yes
Radiometric function Optional
EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
EO/IR Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%
Packing Information
N.W. 195±10g
Product meas. 69*52*96.2mm
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality box with foam cushion
