Voltage range is up to 20S (85V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the maual page for more details.

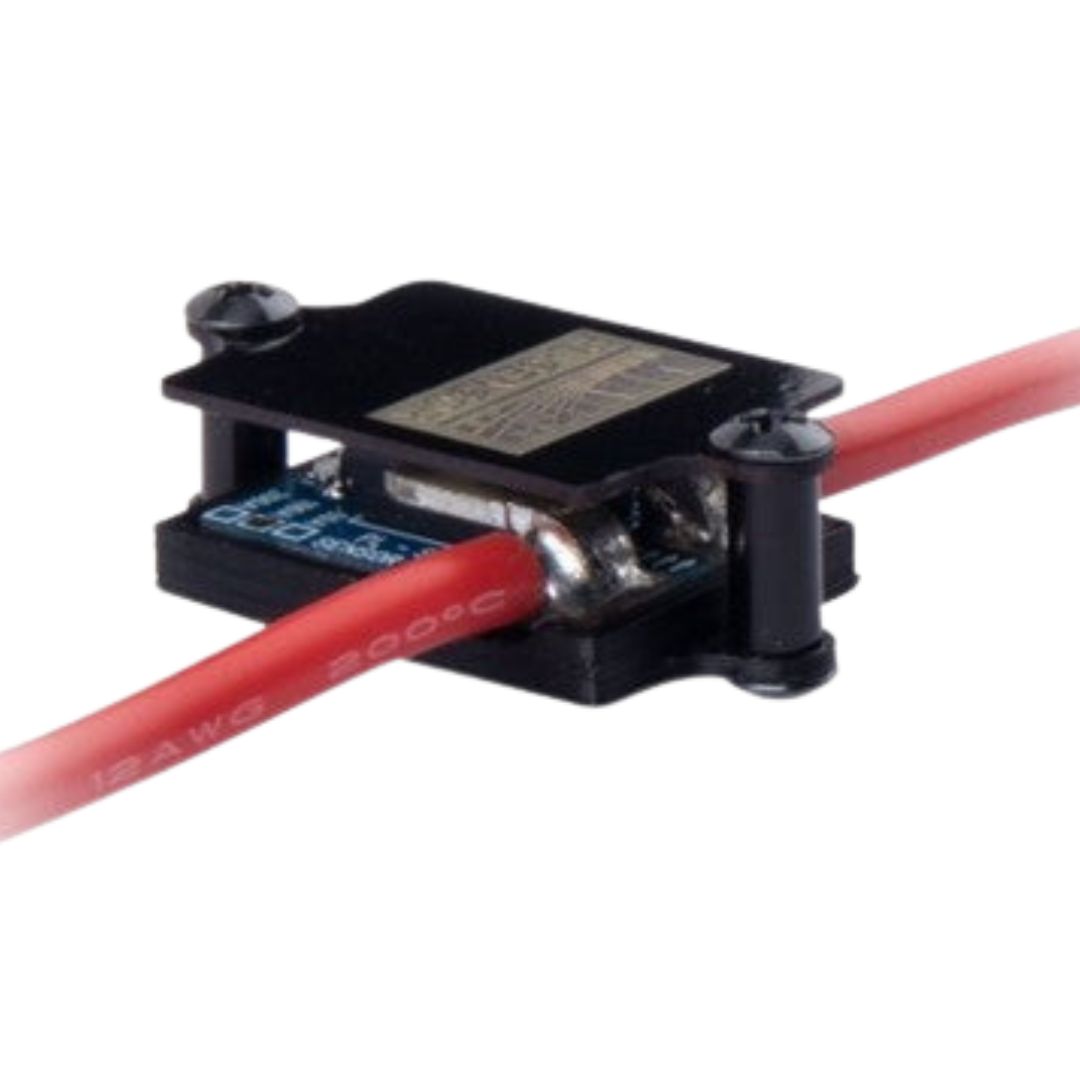

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.
Connected to the sensor are 2x10cm AWG12 wire (red) as a standard.
REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)
Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 17g (with 2x 10cm 12AWG)
With CFK enclosure = 43.5 x 23.0 x 15mm / 22g (with 2x 10cm 12AWG)
Delivery in PP box: 55 x 55 x 20mm / 33g
Delivery without sensor cable (comes with the BEC’s), with CFK enclosure
REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.
