SHARE 203S PRO 225 MP Five-lenses Oblique Camera
Available in stock
225MP five-lens oblique camera for high-resolution urban mapping
3-axis stabilized gimbal ensures image stability during flight
Operates at 272m for 3cm GSD; up to 454m for 5cm GSD
TimeSync 2.0 for microsecond-level synchronization
Check delivery availability:
Description
SHARE 203S PRO- 225 MP Five-lenses Oblique Camera
The SHARE 203S PRO is engineered to meet the rigorous demands of urban 3D mapping and large-area aerial surveys. With its high-resolution imaging capabilities and advanced stabilization features, it ensures accurate and efficient data collection.
High-Resolution Multi-Lens Imaging

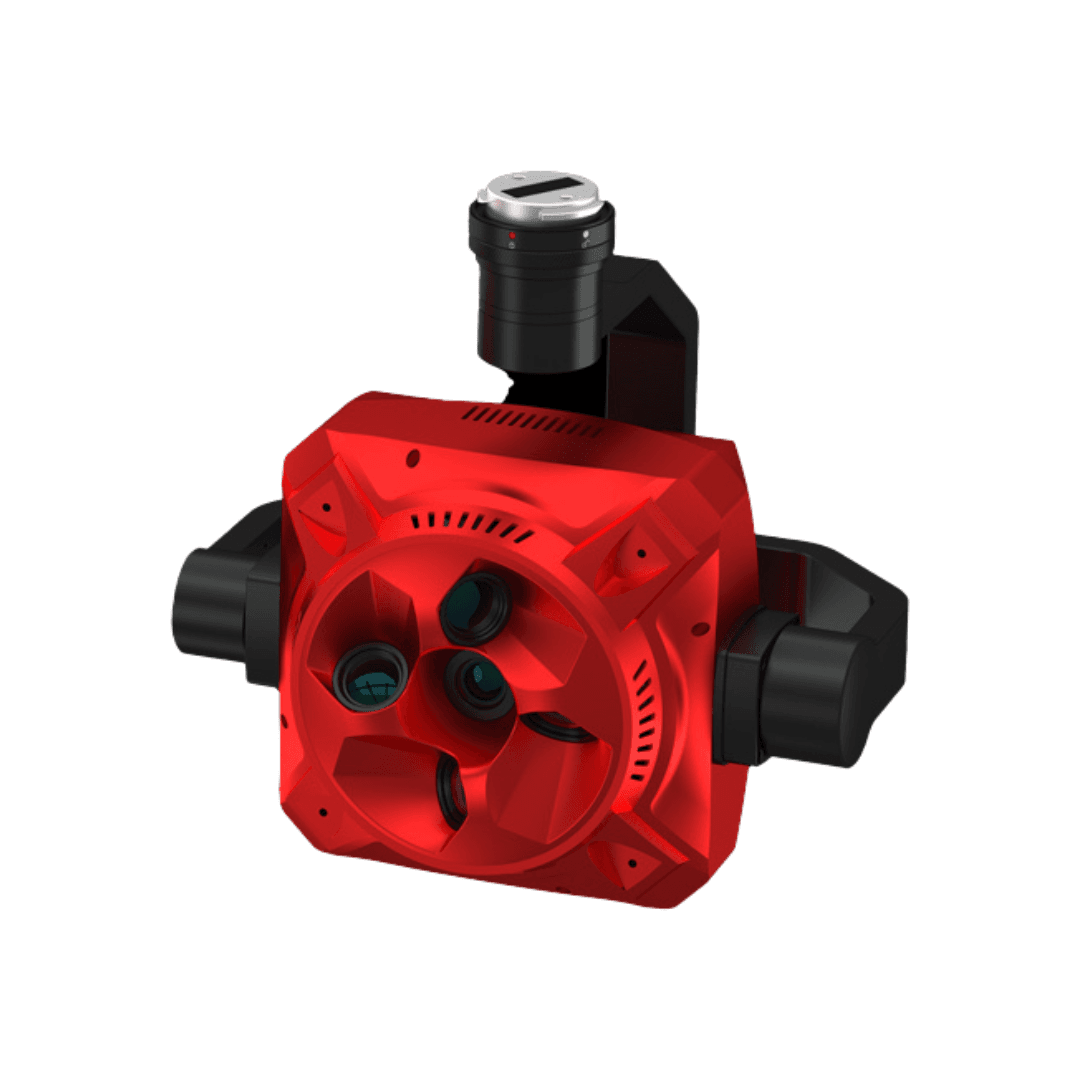

Equipped with five lenses, each capturing 45MP images, the SHARE 203S PRO delivers a total resolution of 225MP. This configuration allows for simultaneous capture of nadir and oblique images, enhancing the detail and accuracy of 3D models.
Advanced Gimbal Stabilization

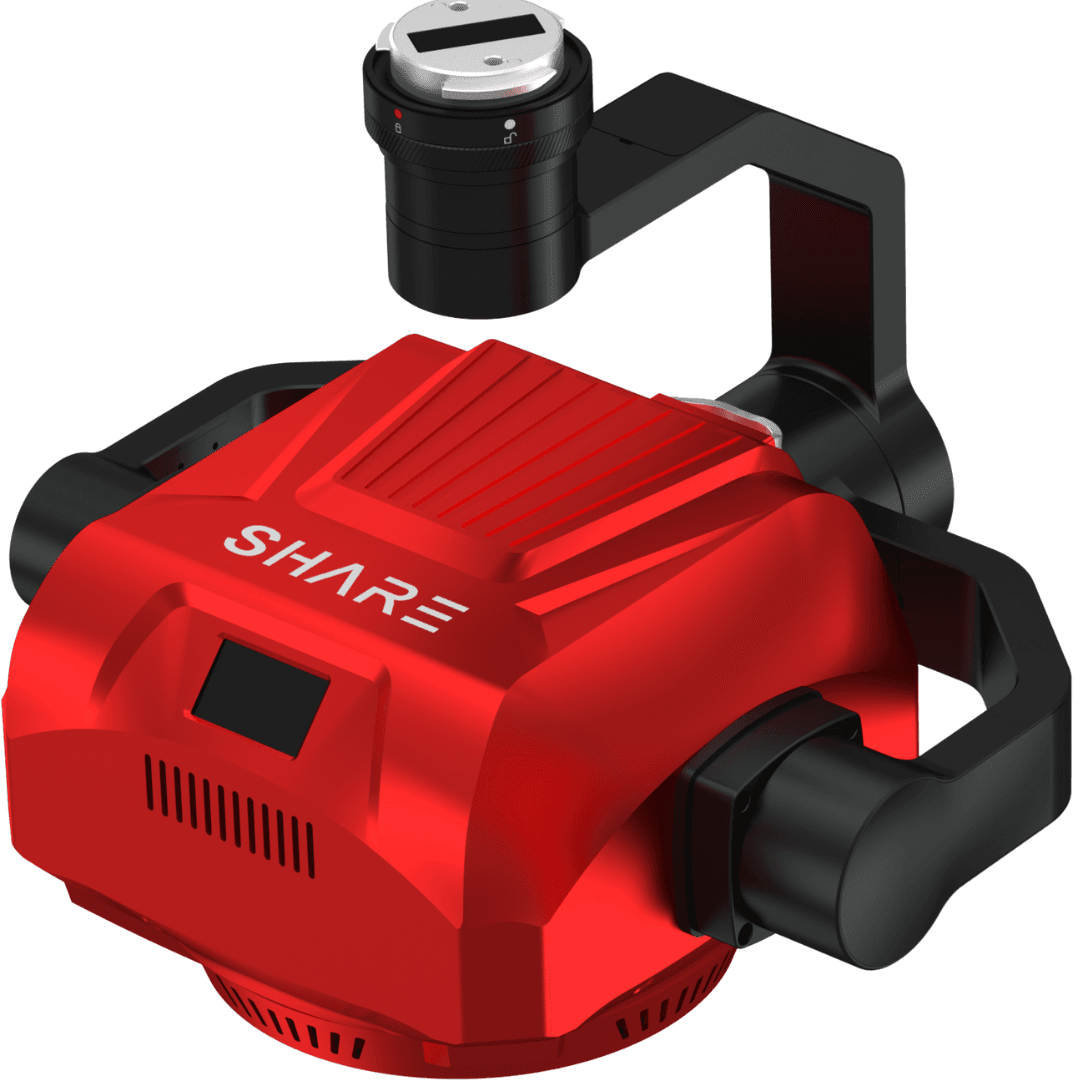

The integrated 3-axis gimbal maintains camera stability across pitch, roll, and yaw axes, even at flight speeds up to 15 m/s. This ensures that the camera remains perpendicular to the ground, reducing motion blur and improving image clarity.
Optimized for Urban Environments
Designed specifically for urban high-drop scenarios, the SHARE 203S PRO can operate at altitudes of 272 meters to achieve a 3cm ground sampling distance (GSD). For broader area coverage, it can fly at 454 meters, corresponding to a 5cm GSD, making it suitable for large-scale urban surveys.
Real-Time Monitoring and Data Management
The camera features switchable 5-view image transmission monitoring, allowing operators to assess the camera’s status in real-time. It automatically adjusts the bitstream based on distance to maintain visual clarity. Additionally, the dual 1280GB storage modules support data transfer speeds up to 600MB/s, facilitating rapid data offloading.
Precision Synchronization with TimeSync 2.0
Incorporating the TimeSync 2.0 algorithm, the SHARE 203S PRO achieves microsecond-level synchronization across the flight control system, camera, gimbal, and RTK module. This precise timing ensures accurate geotagging of images, enhancing the quality of 3D reconstructions.
Broad Compatibility and Ease of Integration
The camera is compatible with DJI M300 and M350 RTK drones, as well as various fixed-wing platforms. Its standard aerial plug interface simplifies integration, allowing for quick deployment across different UAV systems.
