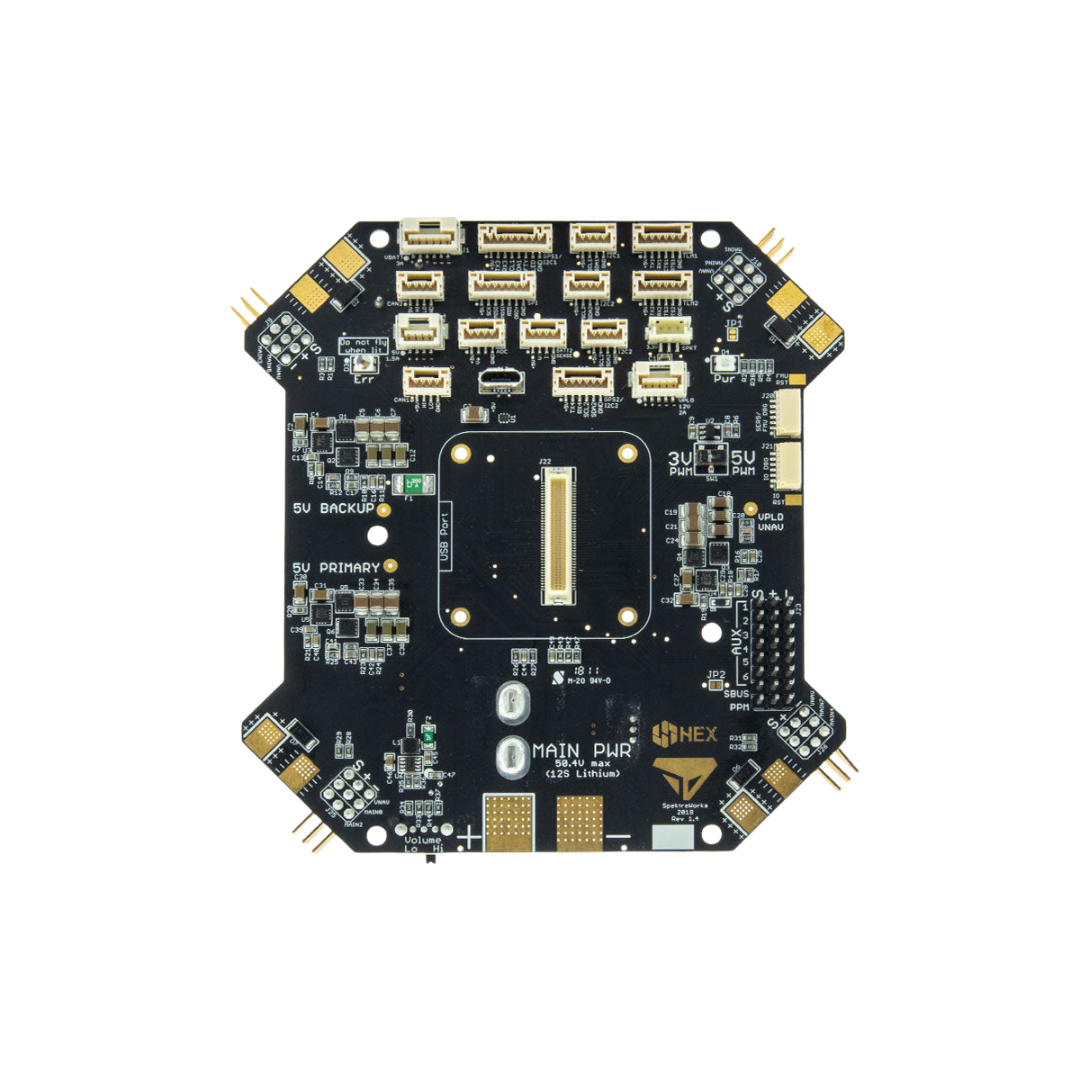

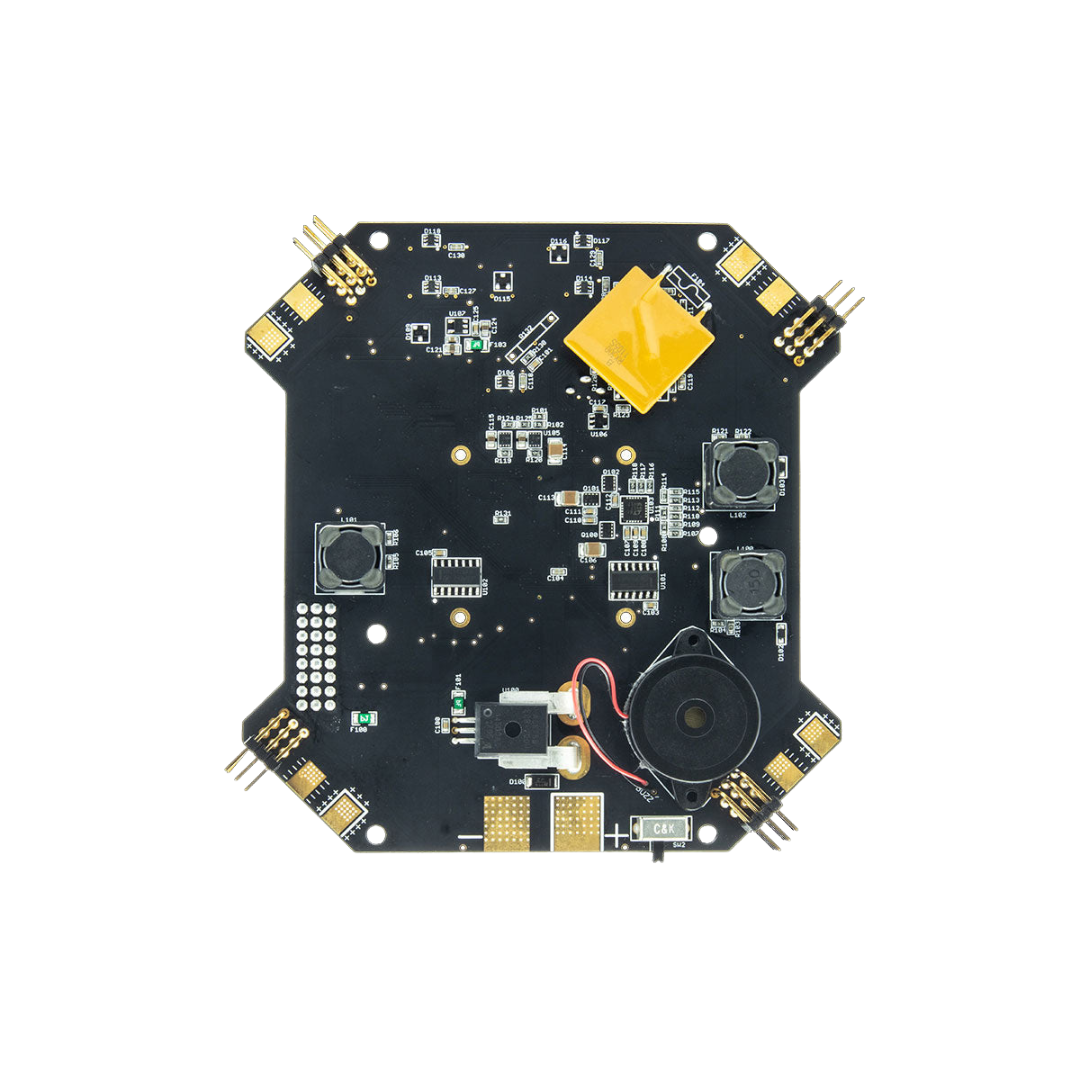

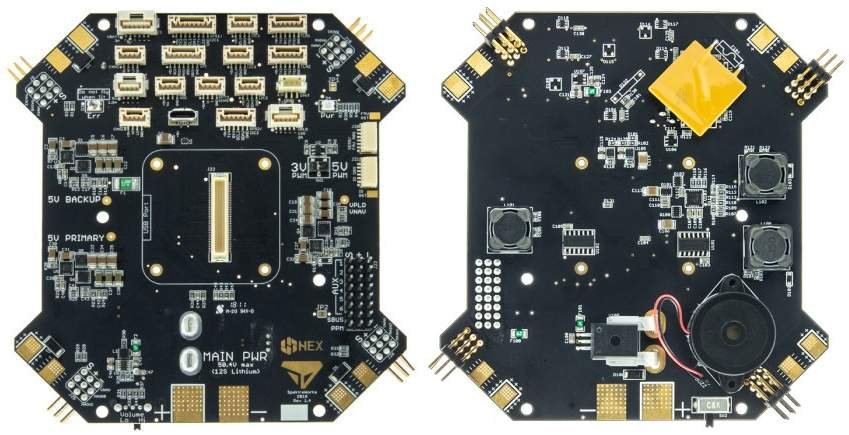

The Kore Carrier Board

The Kore Carrier Board

The CubePilot Kore Carrier Board is a high-performance solution for professional multi-rotor integration. This all-in-one platform eliminates complex wiring by consolidating critical systems. It combines power distribution, signal routing, and redundancy into a single sleek architecture. Consequently, it simplifies the build process for quadcopters, X8 configurations, and octocopters. UAV developers trust this board for its clean design and extreme reliability.

Furthermore, the board supports the full range of Cube autopilot functionality. It integrates seamlessly into multirotors, fixed-wing aircraft, and even ground rovers. The CubePilot Kore Carrier Board is engineered for mission-critical applications that require failover protection. You can monitor your system effectively with integrated voltage and current sensing. It represents a significant leap forward in UAV power management and flight control efficiency.

Key Features

• Integrated Power Distribution Board (PDB) supports high-current drone builds.
• Redundant power supply systems ensure flight safety with automatic failover.
• ESC power and signal outputs are conveniently located at each corner.
• Dedicated 12V navigation light outputs improve visibility and safety.
• Resettable fuses protect payload power outputs for 5V and 12V gear.
• Selectable PWM voltage allows for 3.3V or 5V signaling options.
• Ground-noise-resistant signaling prevents interference during intense operations.

Specifications

Power handling is a primary strength of the CubePilot Kore Carrier Board. It supports up to 12S LiPo batteries for high-voltage heavy-lift drones. The board manages a continuous current of 140A and handles 280A surges. In addition, it features a built-in buzzer with adjustable volume for system alerts. LED indicators provide instant feedback on power and system status.

Moreover, the board includes dedicated debug ports for IO and FMU processors. This makes the CubePilot Kore Carrier Board an excellent choice for advanced developers. The architecture is compatible with standard ProfiCNC carrier board connectors. Therefore, you can easily swap or upgrade your existing setups without major modifications. The robust 8-layer PCB design ensures minimal electrical resistance across all power tracks.

Applications

The CubePilot Kore Carrier Board is ideal for industrial mapping and survey drones. It excels in agricultural spraying drones that require high-current power distribution. Many researchers use it for autonomous rovers and underwater submersibles. It also provides a stable foundation for high-end antenna trackers.

In addition, its reliability makes it suitable for cargo delivery UAVs. The CubePilot Kore Carrier Board ensures that your payload receives clean, fused power. It is a must-have for builders who want to reduce failure points. Whether you are building an X8 cinematic rig or a long-range plane, this board delivers. It combines professional power management with the world’s most advanced autopilot ecosystem.
