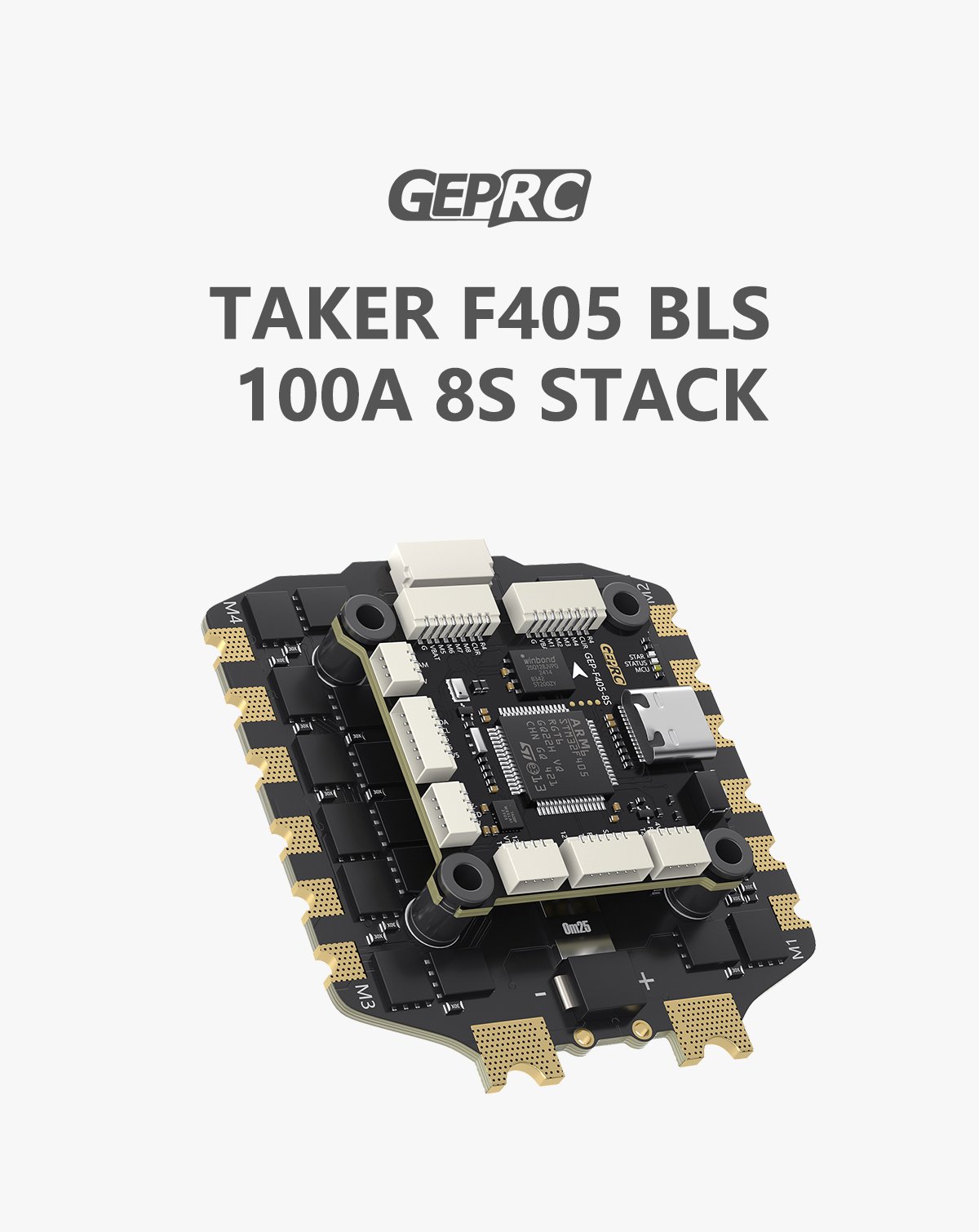

GEPRC Taker F405 BLS 100A 8S Stack

GEPRC Taker F405 BLS 100A 8S Stack

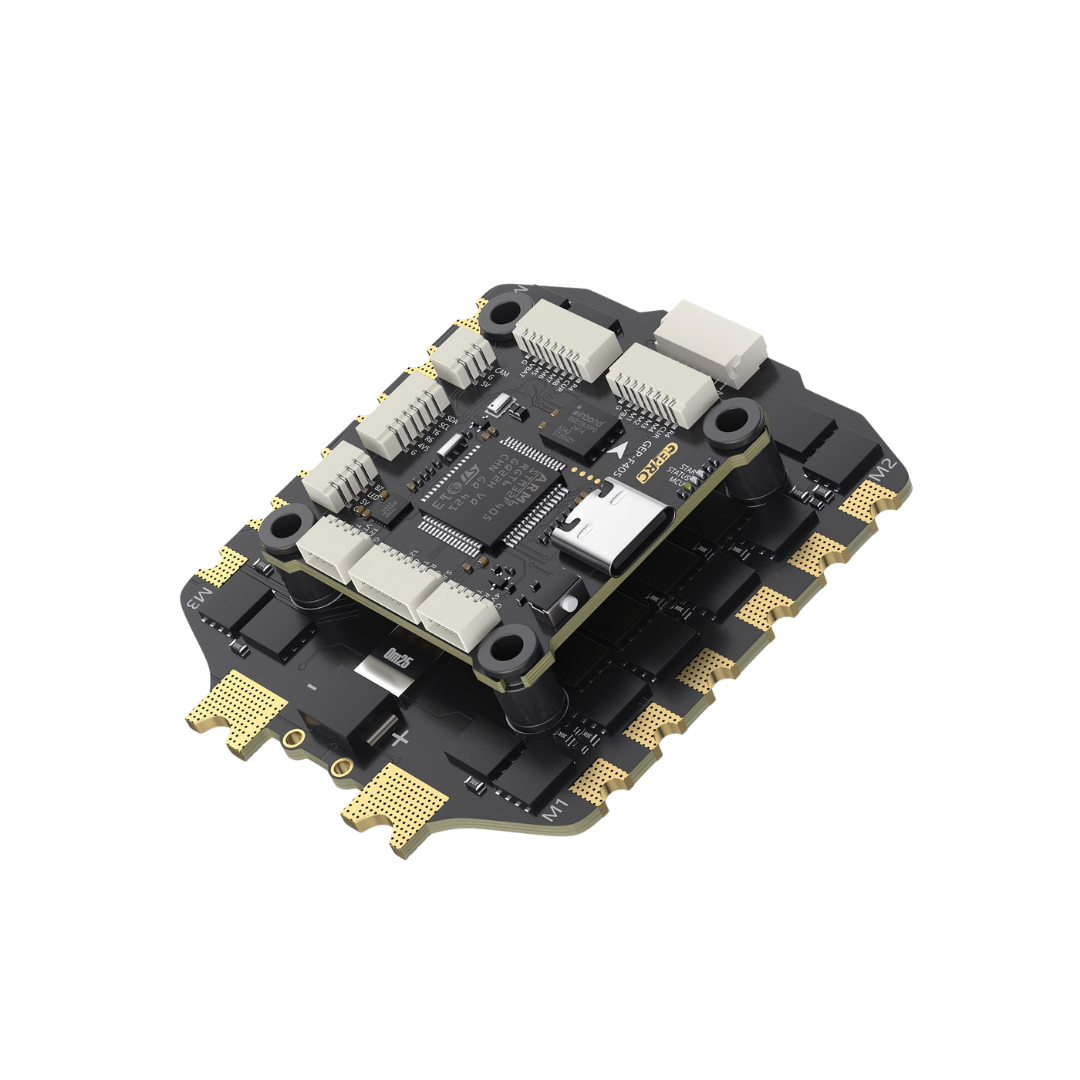

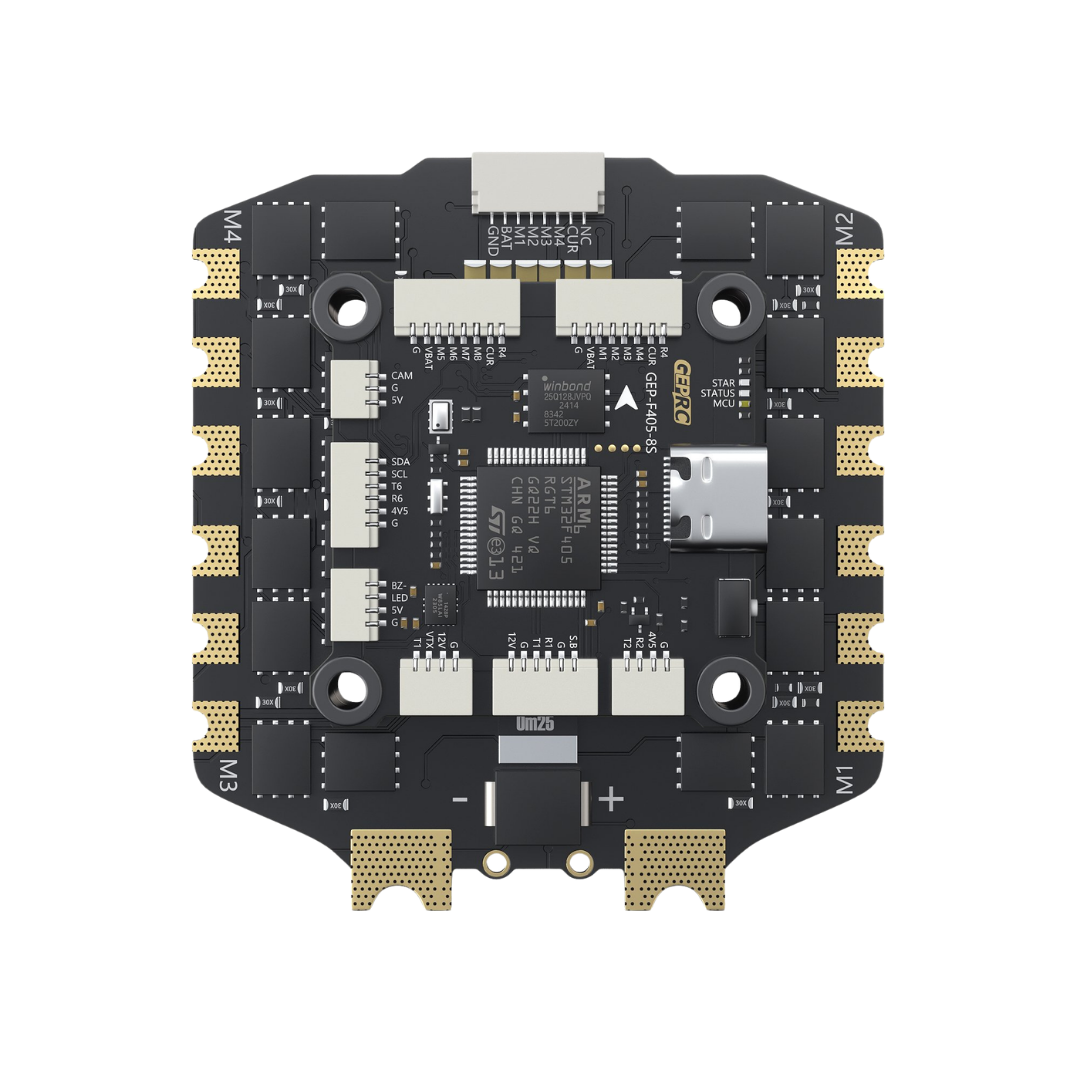

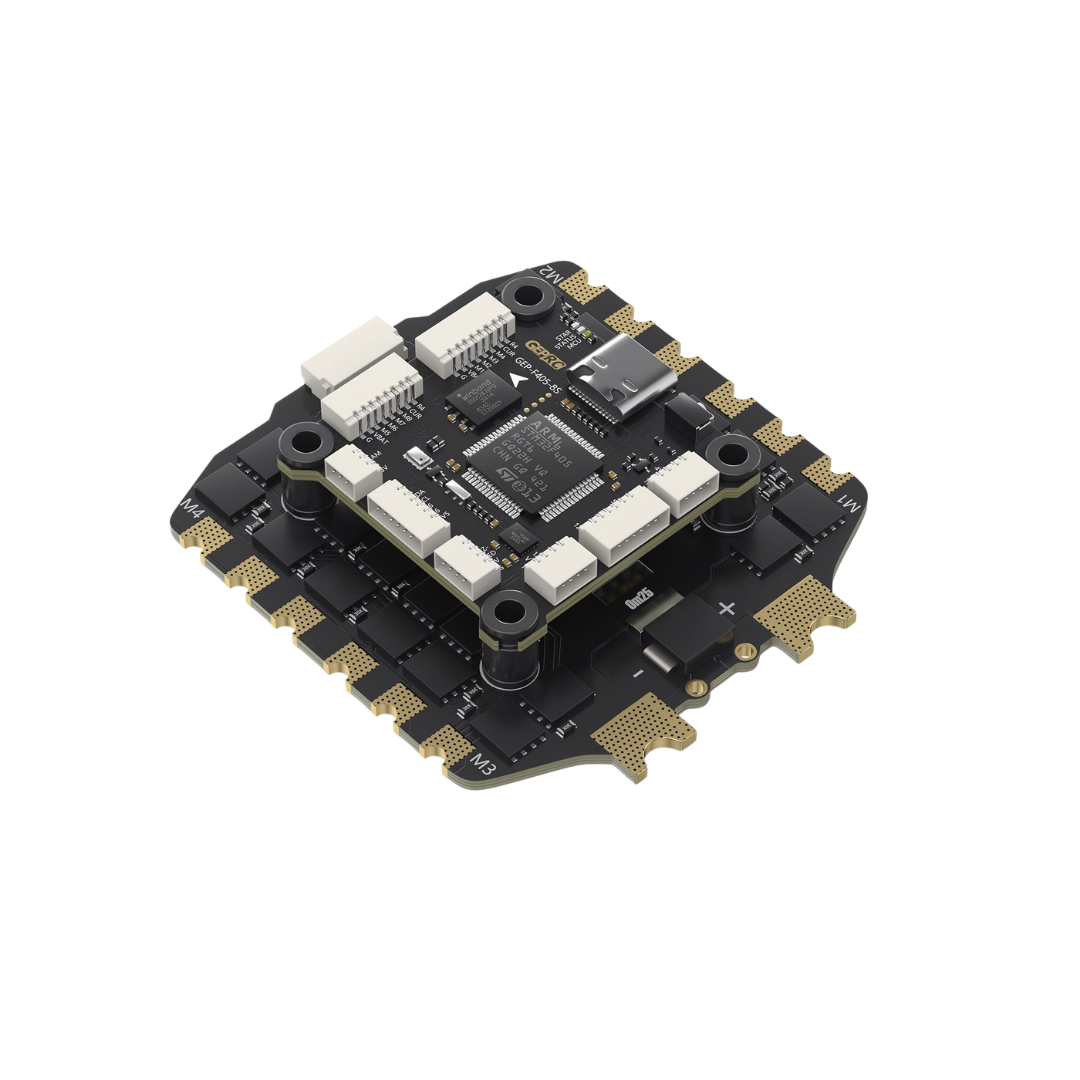

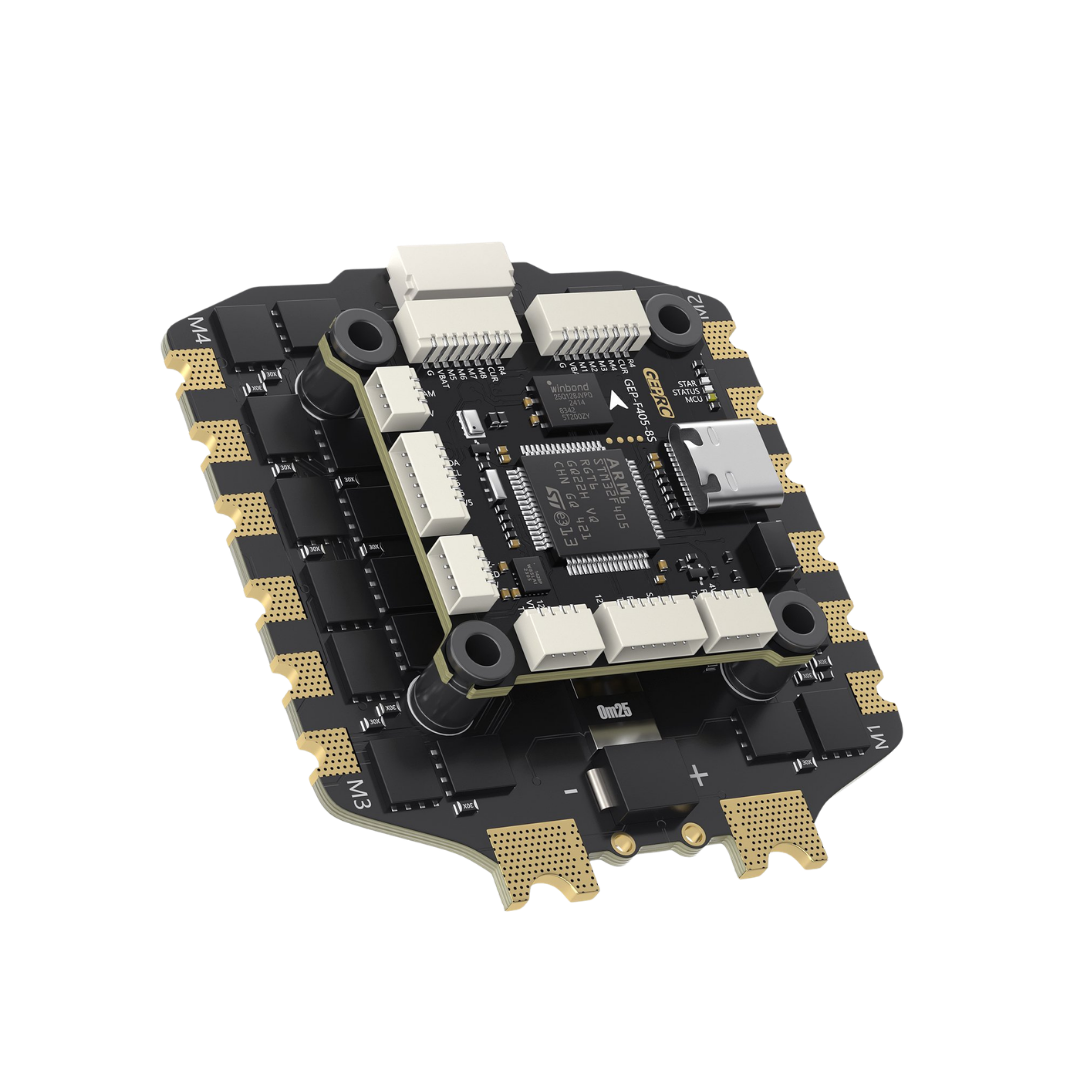

The GEPRC Taker F405 Stack is a powerhouse designed for high-performance cinematic and freestyle drones. It features the reliable STM32F405 mainstream chip for fast processing. This stack is specifically built to handle 8S LiPo batteries for extreme power. It includes a massive 100A 4-in-1 ESC with dual MOS technology. The plug-and-play design allows for a direct connection to the DJI Air Unit. You get a stable flight experience thanks to the latest 42688-P gyroscope. This system is perfect for pilots who demand high current and silky smooth control.

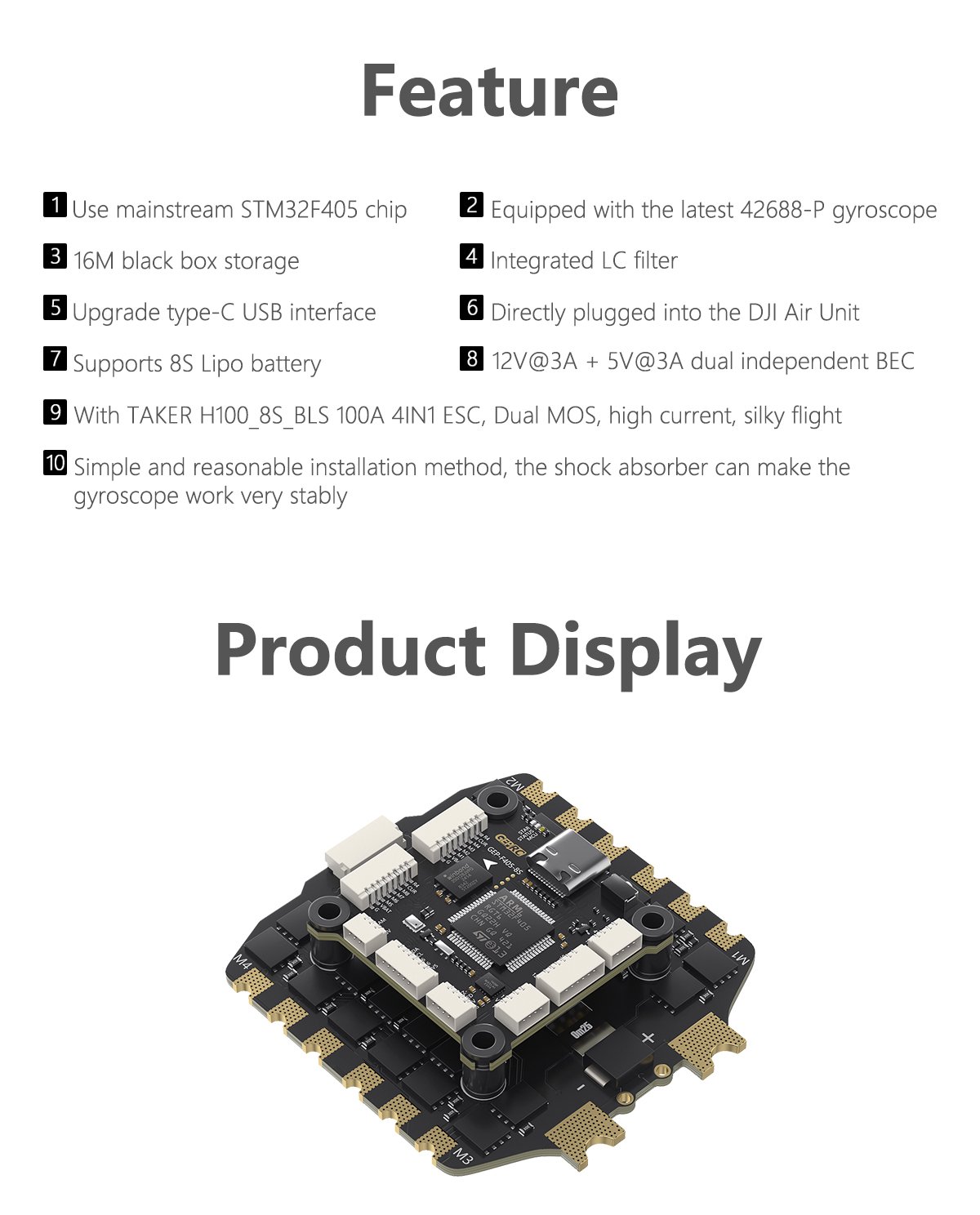

Key Features

Safety and efficiency are central to the GEPRC Taker F405 Stack design. It includes a 16M black box to record all your flight data. The integrated LC filter keeps your video signal clean and free from noise. It also features a modern Type-C USB interface for easy configuration. The stack offers dual independent BECs providing 12V and 5V power. Moreover, the shock-absorbing mounting system ensures the gyro remains perfectly stable. The high-current TAKER H100 ESC supports Dshot 150, 300, and 600 protocols. Consequently, you receive instant response times during aggressive aerial maneuvers.

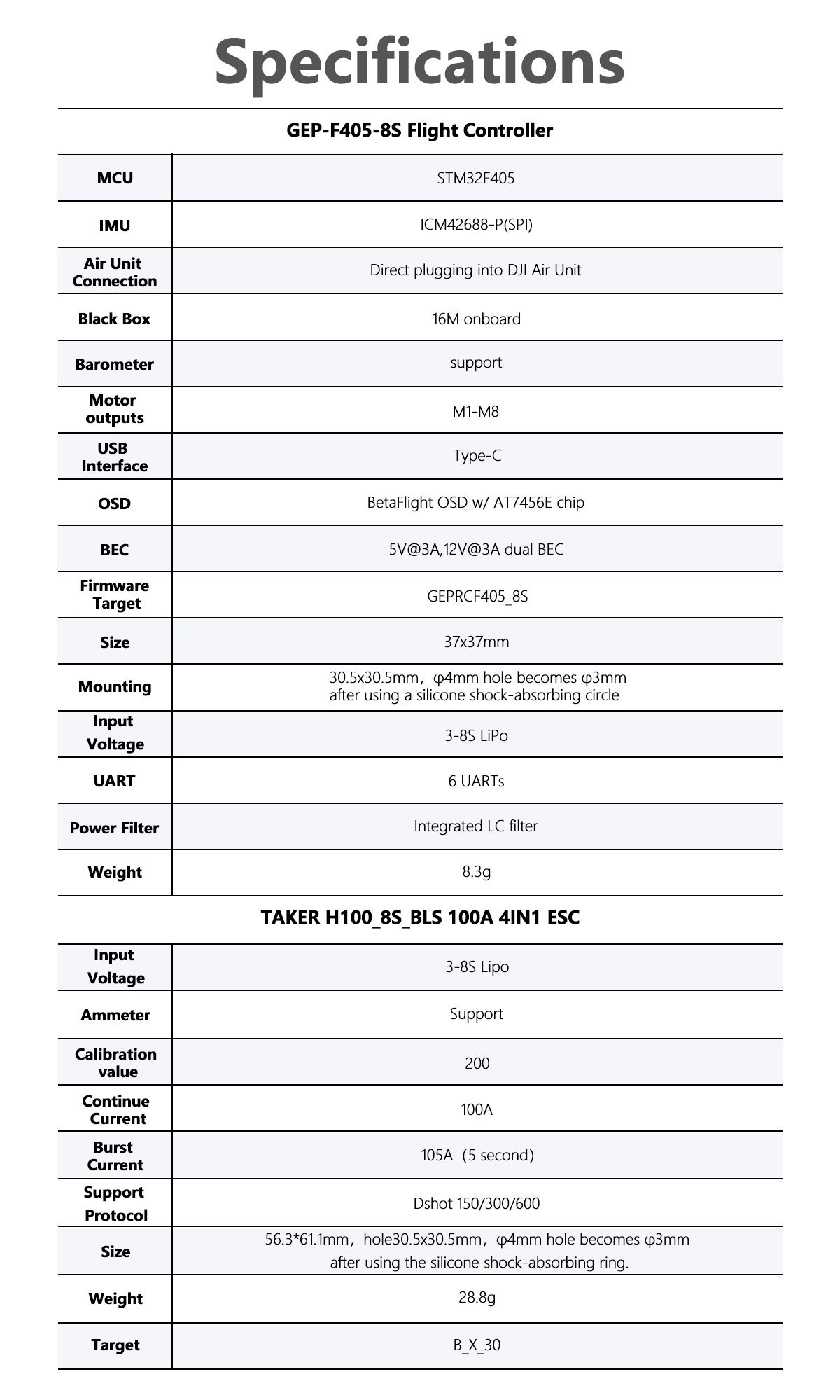

Technical Specifications

The flight controller in the GEPRC Taker F405 Stack is highly versatile. It supports up to eight motor outputs for various frame configurations. You can easily connect peripherals via the six available UART ports. The 100A ESC is rated for a 105A burst current to handle sudden throttle punches. It uses a standard 30.5×30.5mm mounting pattern for broad frame compatibility. Additionally, the stack includes a large 50V 4700uF capacitor to manage voltage spikes. The BetaFlight OSD chip allows you to monitor vital stats in real-time.

Applications

This stack is the ideal choice for heavy-lift long-range drones. Professional racers also use the GEPRC Taker F405 Stack for its high reliability. Because it supports 8S, it is perfect for large propellers and heavy payloads. The simple installation method saves time during complex builds. It works seamlessly with both analog and digital FPV systems. Whether you are filming cinematic shots or racing, this stack delivers consistent performance. Trust GEPRC to provide the power and stability your high-end drone needs.

Key Specifications

• The stack uses a powerful STM32F405 mainstream processing chip.
• It supports a wide input voltage from 3S up to 8S LiPo.

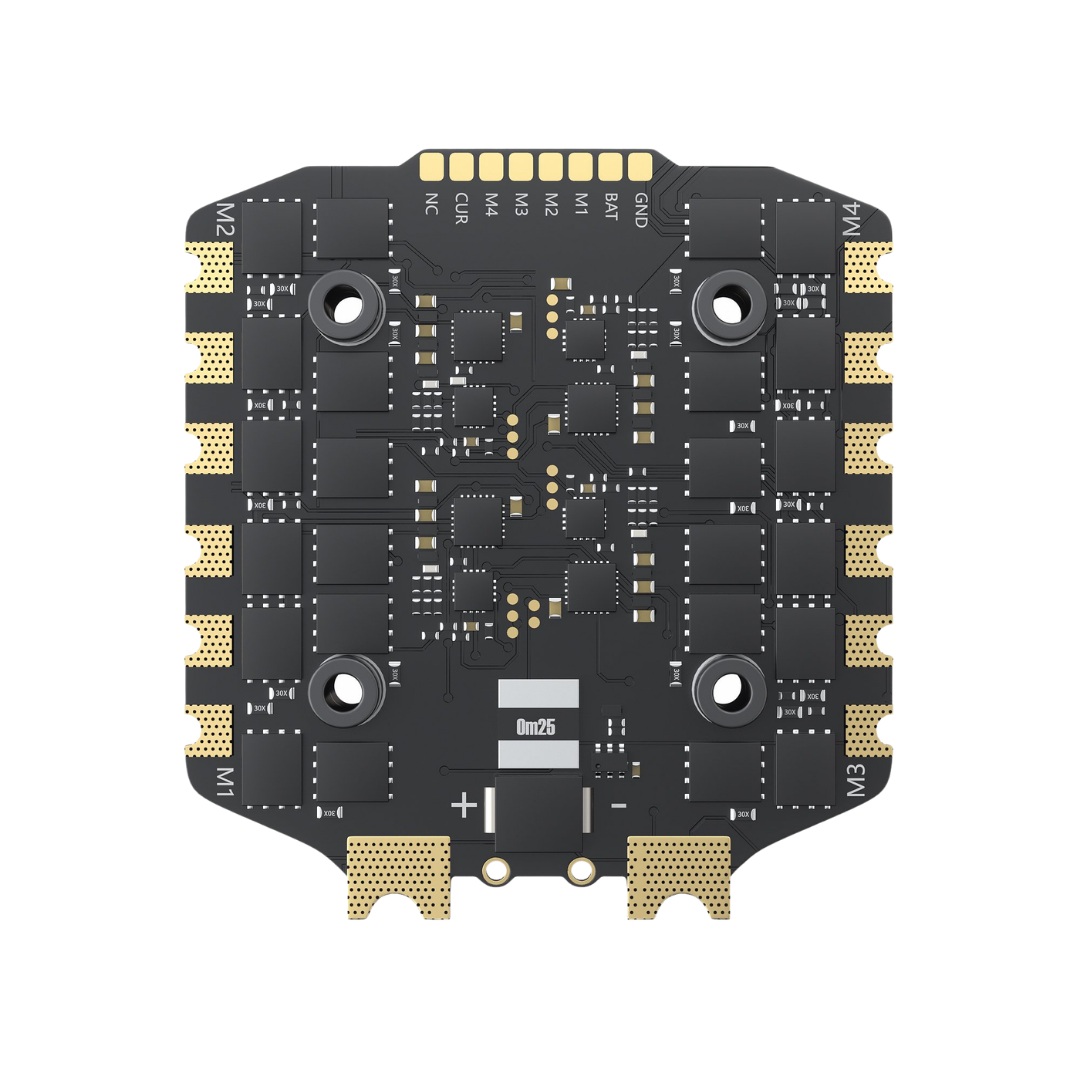

• The 100A ESC utilizes dual MOS for high-current handling.
• A 42688-P gyroscope provides ultra-smooth flight stabilization.
• It features a direct plug-in port for the DJI Air Unit.
• Dual BECs provide stable 5V@3A and 12V@3A power outputs.
• The mounting pattern is a standard 30.5×30.5mm size.
