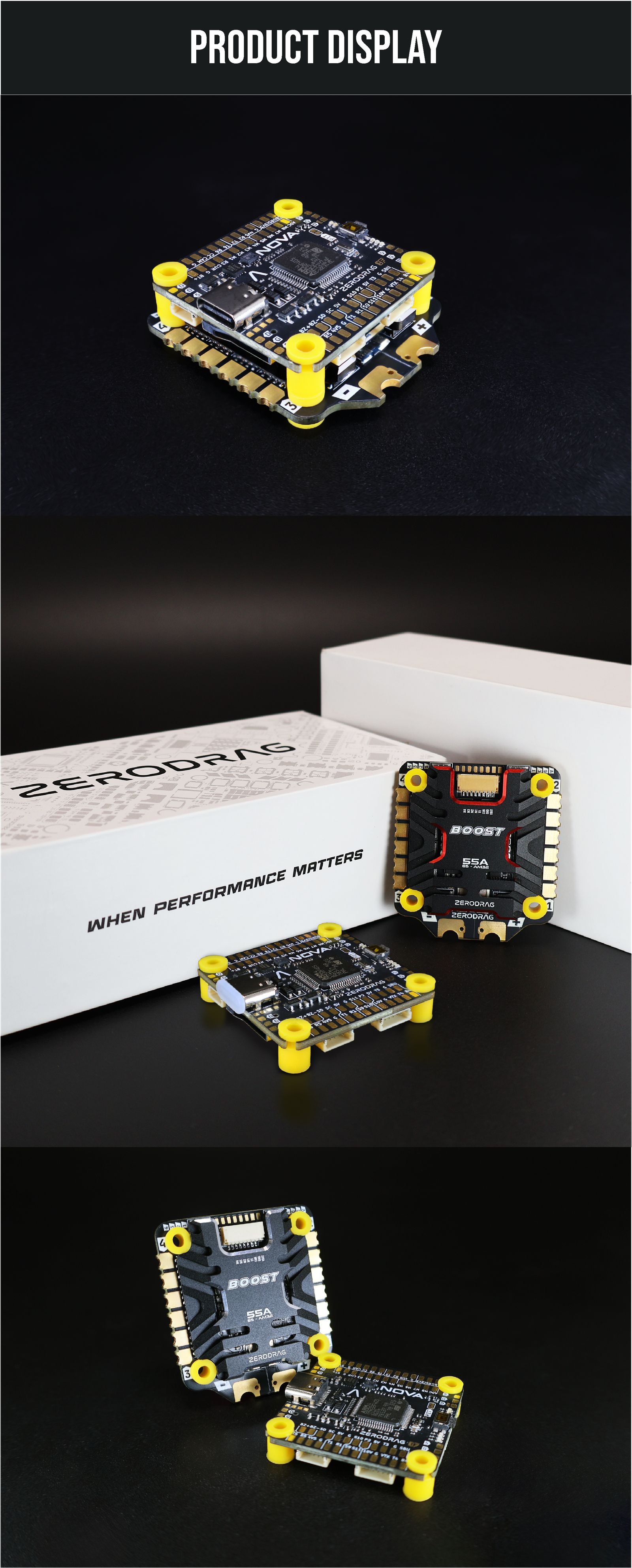

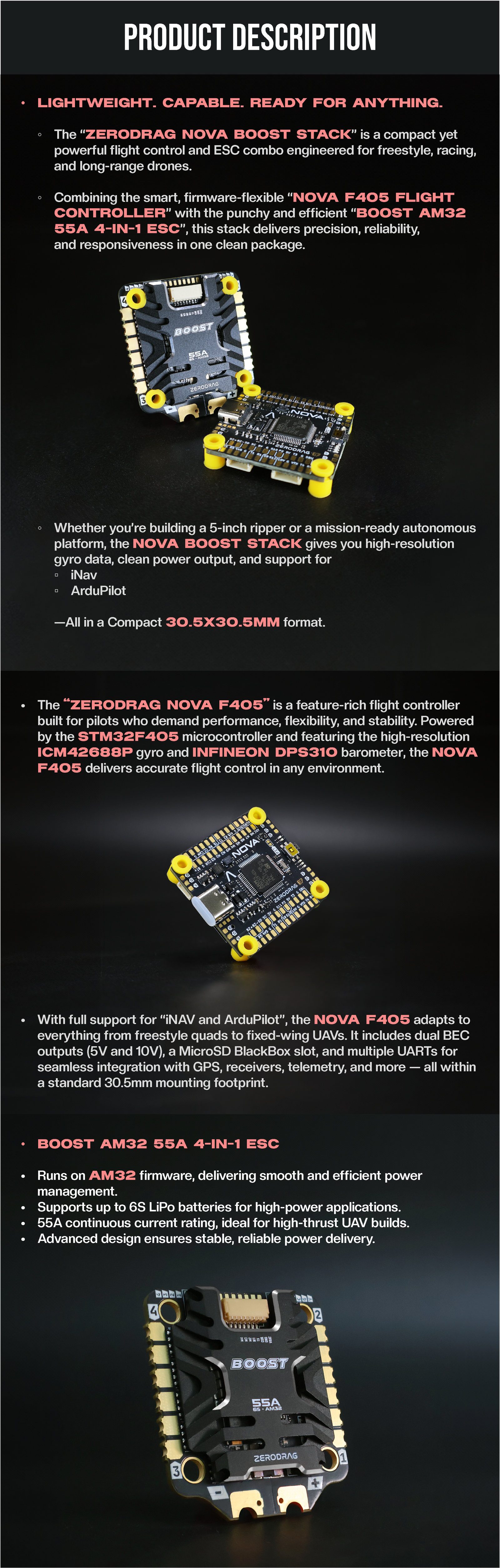

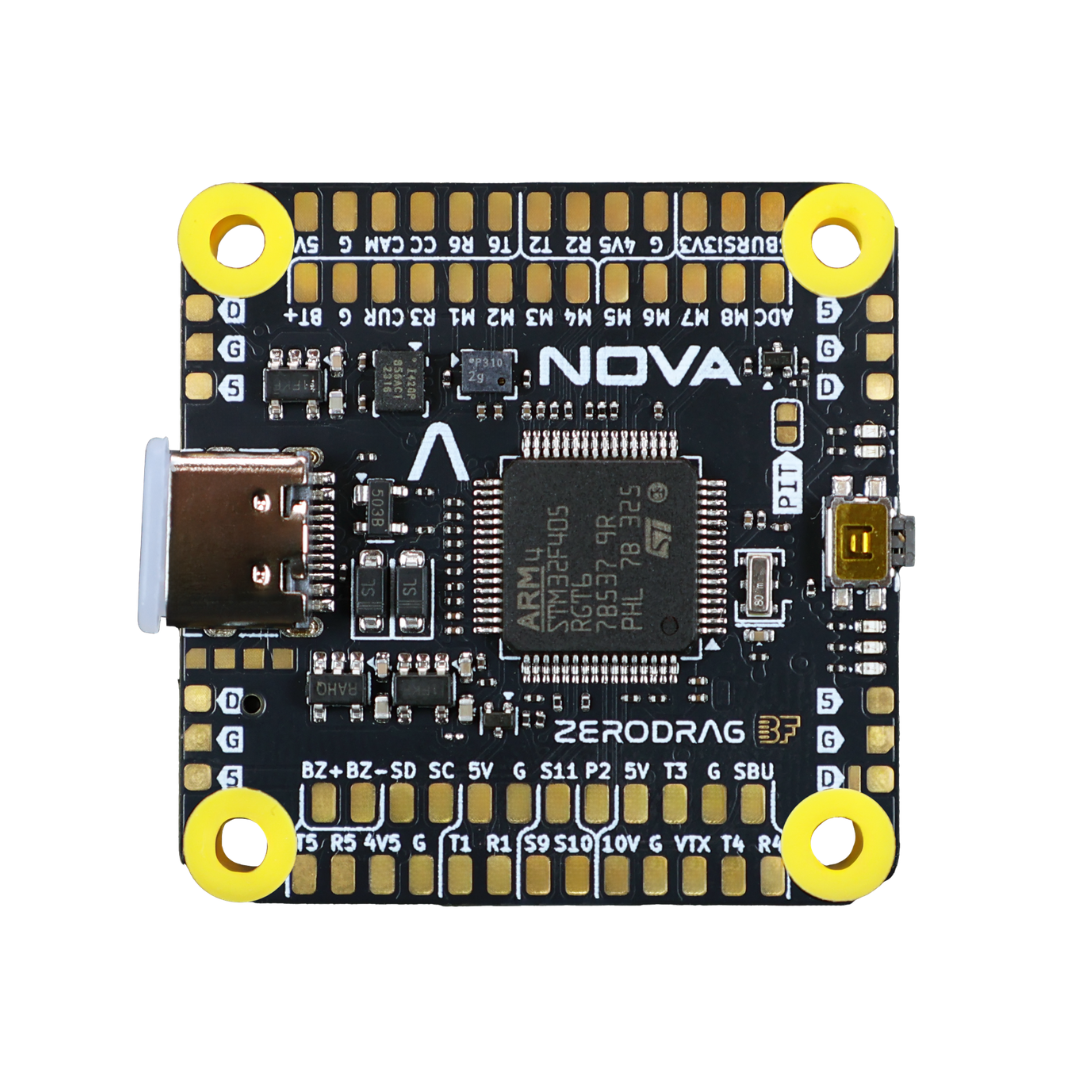

The Zerodrag NOVA – Boost Stack (F4 FC – ICM42688P + 55A 4-in-1 AM32 ESC) is a premium, high-density power electronics and navigation system built for high-performance multirotors. Combining the highly versatile NOVA F405 Flight Controller with the high-efficiency BOOST 55A 4-in-1 ESC, this stack simplifies internal drone wiring while providing high-resolution stabilization tracking. Built on a standard $30.5 \times 30.5\text{ mm}$ layout, the stack features an advanced ICM42688P IMU and a precise Infineon barometer. It natively supports industry-standard open-source firmware platforms like Betaflight, iNav, and ArduPilot, making it a reliable foundation for aggressive 5-inch freestyle quads, racing setups, or long-range autonomous mapping drones.

Key Features

• Dual-Board Performance Integration: Bundles a feature-rich F405 processing core and a heavy-duty 55A speed controller into a space-saving stack setup.

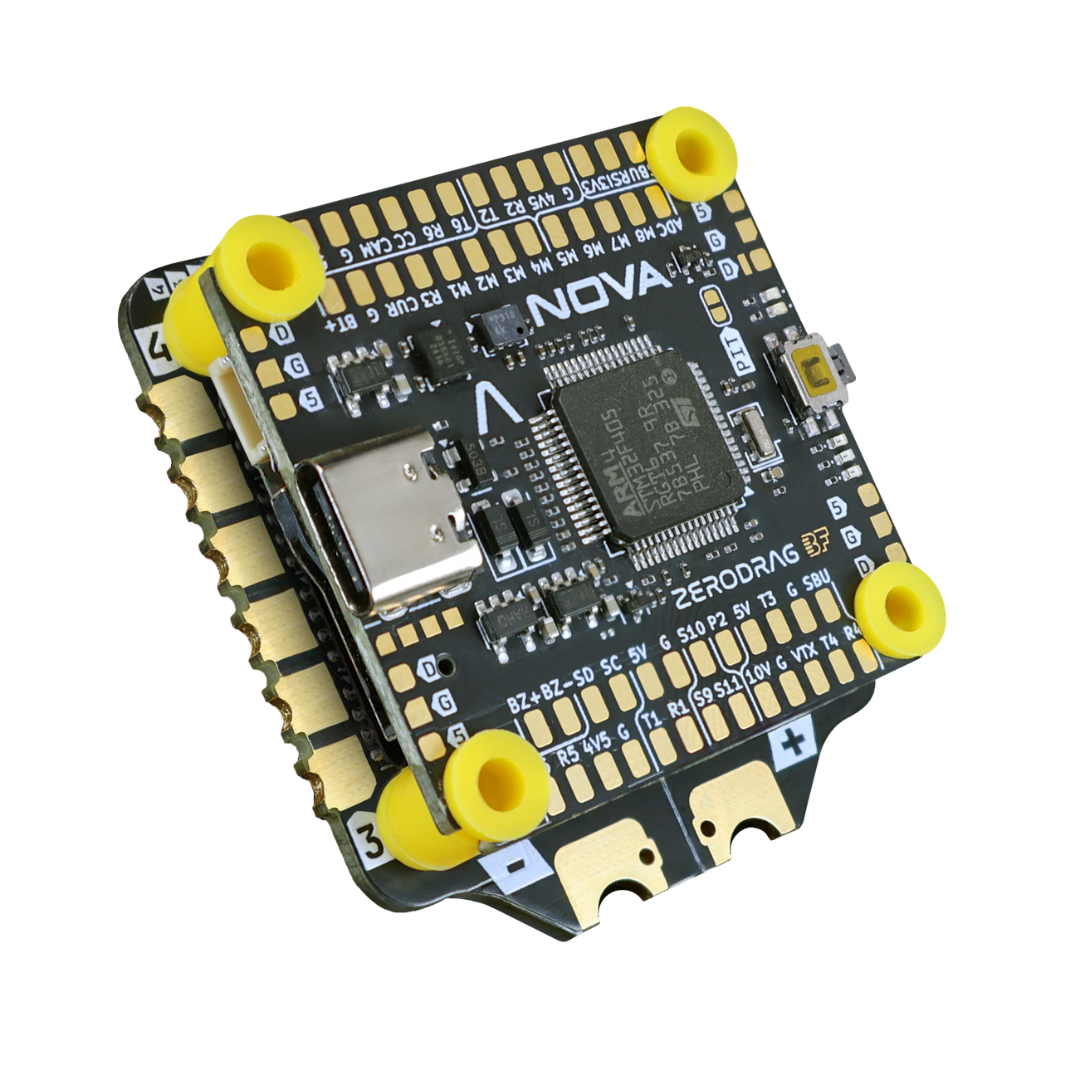

• Premium STM32F405 processing: High-frequency 32-bit architecture handles complex flight tracking algorithms effortlessly.

• High-Resolution ICM42688P IMU: Next-generation gyro provides crisp, real-time data loops that filter out high-frequency frame vibrations.

• Infineon DPS310 Barometer: Onboard barometric altitude sensor delivers pinpoint altitude holding for long-range and autonomous waypoint flights.

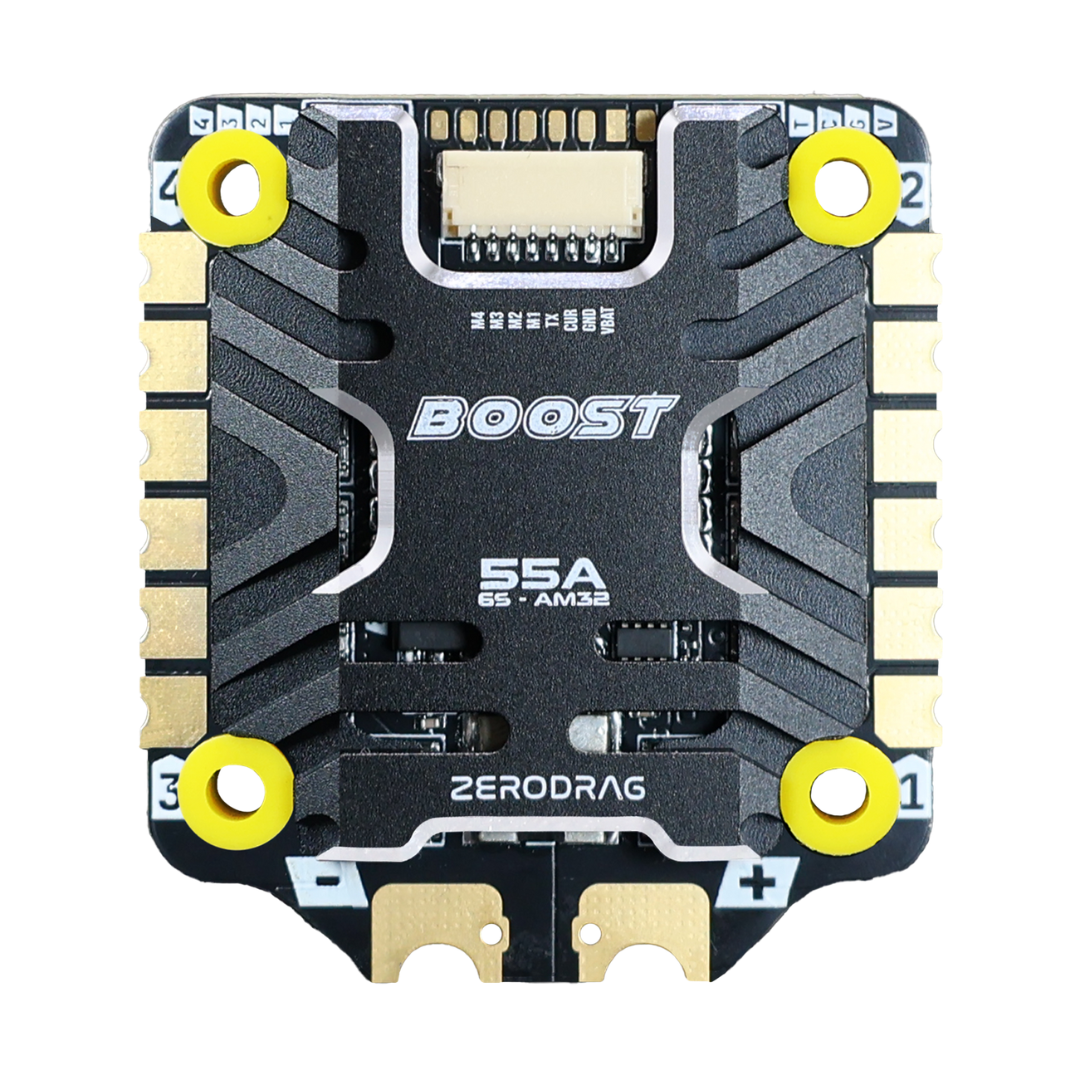

• Advanced AM32 ESC Firmware: Runs premium AM32 electronic speed controller software for ultra-smooth throttle curves and bidirectional DShot data tracking.

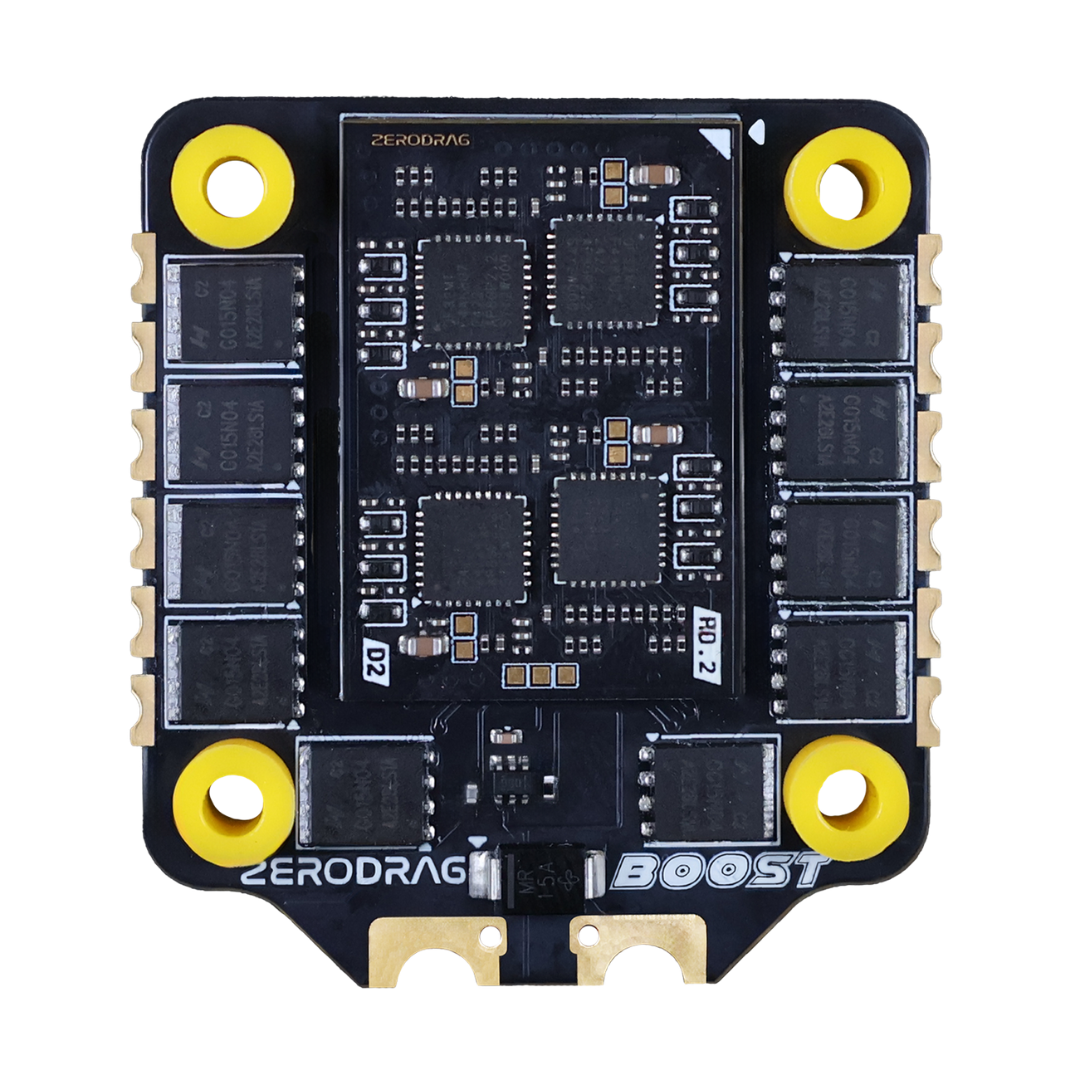

• Continuous 55A Power Delivery: Robust internal mosfet arrays provide a continuous 55A current supply per channel to drive demanding high-KV brushless motors.

• Multi-Firmware Adaptability: Fully compatible with custom Betaflight, iNav, and deep ArduPilot UAV control architectures.

• Clean Layout Isolation: Optimized physical board geometry separates noisy power traces from sensitive analog sensor circuits to preserve video signal quality.

Applications

FPV multirotor builders install the Zerodrag NOVA Boost Stack directly into 5-inch freestyle drones and high-speed racing chassis to get ultra-low latency control response during tight maneuvers. Long-range drone pilots rely on its integrated DPS310 barometer and multi-UART ports to interface safely with GPS/Compass modules for automated Return-to-Home functionality. Additionally, commercial UAV designers utilize its broad iNav and ArduPilot support to build budget-friendly, mission-ready autonomous mapping platforms, environmental surveillance systems, and custom training equipment.

Stack Configuration and Mounting Guidelines

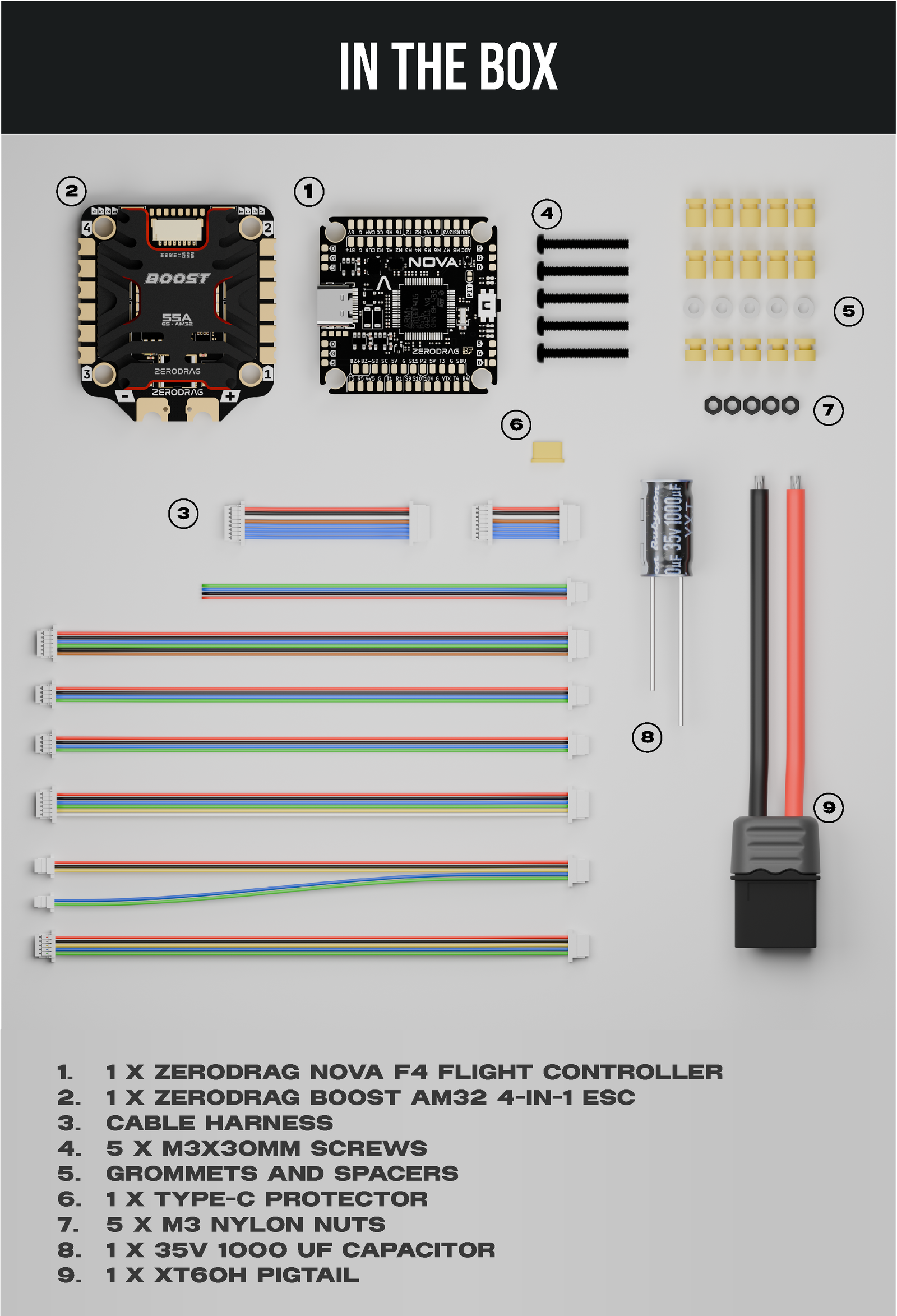

To unlock the peak tracking fidelity of the ICM42688P gyro, proper mechanical isolation is essential. The stack must be mounted using the included vibration-damping silicone grommets to protect the sensors from high-frequency structural noise. When soldering your main battery leads to the BOOST 55A ESC, ensure you install a high-capacity, low-ESR capacitor directly across the primary positive and negative pads. This filters out electrical voltage spikes generated by active braking maneuvers, ensuring consistent power distribution and preventing damage to your flight electronics over time.
