Zerodrag BOOST AM32 55A 4-in-1 ESC (Made in India)

Zerodrag BOOST AM32 55A 4-in-1 ESC (Made in India)

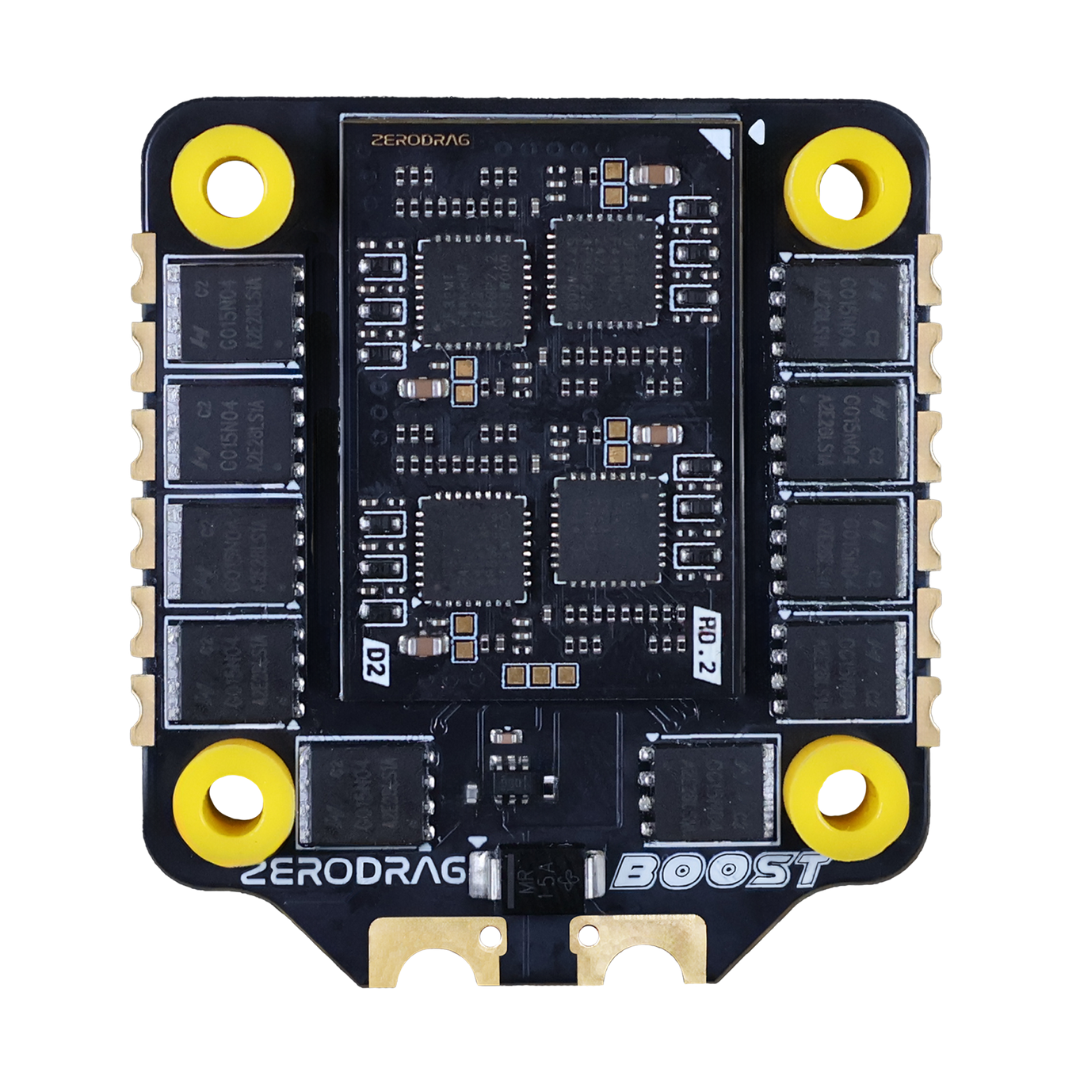

The Zerodrag BOOST AM32 55A 4-in-1 ESC is an advanced, industrial-grade electronic speed controller proudly manufactured in India. Developed specifically to fulfill the rigorous power management demands of modern high-performance UAVs, FPV racing drones, and heavy-duty freestyle platforms, this 4-in-1 speed controller manages current paths with exceptional thermal efficiency. Driven by a next-generation 32-bit QF32 processor core running premium open-source AM32 firmware, it delivers ultra-smooth throttle transitions, rapid recovery from stalls, and highly precise motor response curves. Built onto a standard 30.5 x 30.5 mm layout with an integrated metal heat sink, it provides robust and highly reliable edge performance under extreme operational loads.

Key Features

• Proudly Made in India: Locally manufactured core hardware offering premium build quality, fast domestic shipping, and direct 12-month manufacturer warranty support.

• Cutting-Edge AM32 Firmware Base: Runs optimized 32-bit AM32 multirotor software for superior power timing adjustments and responsive motor tracking.

• High Current Endurance Core: Delivers a continuous 55A across four independent outputs with an aggregate short-duration burst threshold of up to 65A.

• Flexible 3S to 6S LiPo Support: Fully optimized to operate across high-voltage lithium polymer battery packs (11.1V – 22.2V).

• Advanced Onboard Telemetry Suite: Streams real-time operational diagnostics including electronic current draw sensing and direct motor RPM telemetry feedback.

• Heavy-Duty TVS Protection Diode: Features integrated Transient Voltage Suppression (TVS) technology to clamp damaging power surges and back-EMF spikes safely.

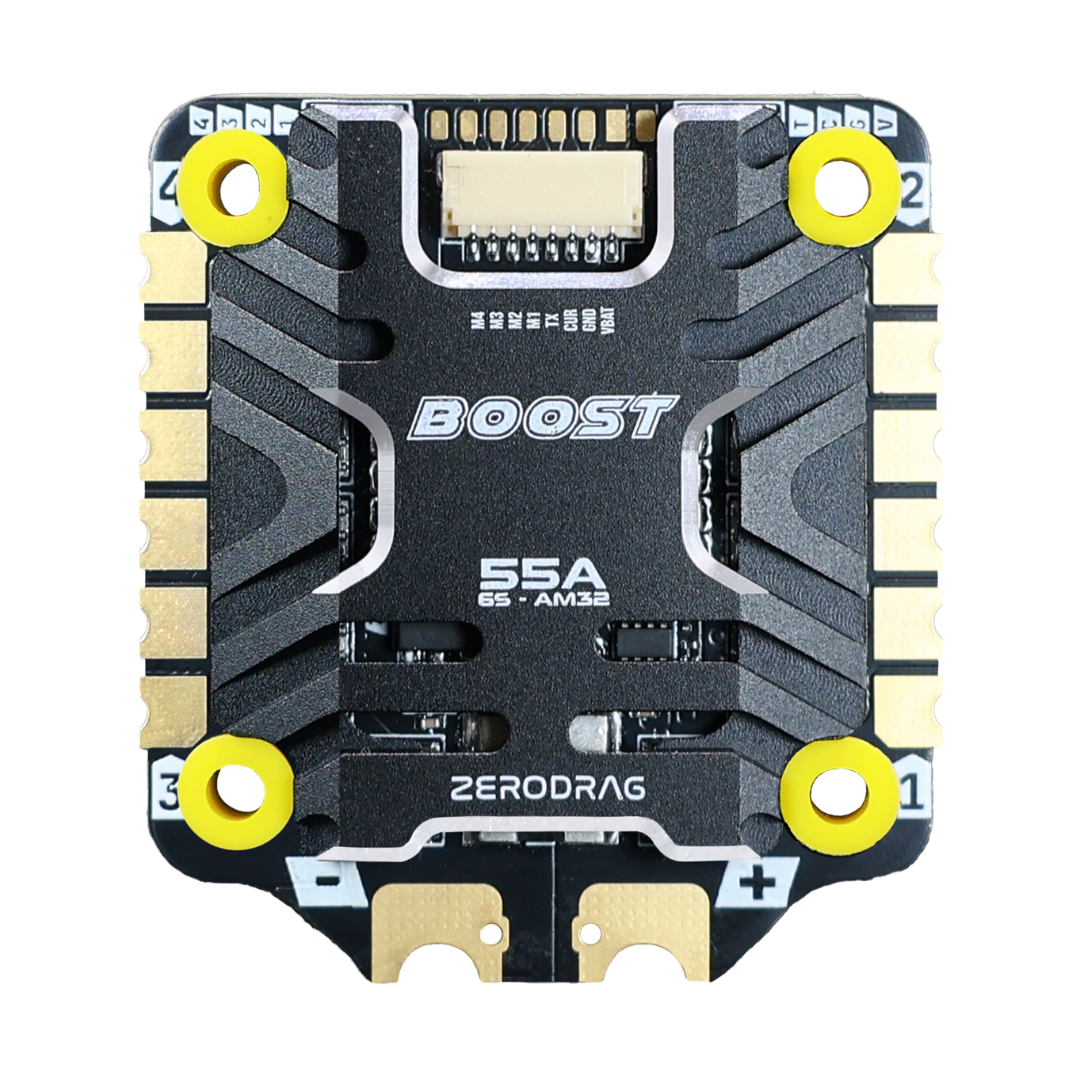

• Integrated Heat Sink Architecture: Features a pre-fitted metal cooling plate to maximize thermal dissipation during high-power maneuvers.

• High-Speed Digital Protocol Suite: Natively handles modern high-frequency digital inputs including DShot150, DShot300, and DShot600.

Applications

FPV custom builders and flight teams install the Zerodrag BOOST AM32 55A ESC inside high-speed 5-inch racing quads and heavy freestyle multirotors to gain highly responsive motor reaction times. Its domestic sourcing and high-efficiency current monitoring also make it a popular choice for commercial drone enterprises building fleet-certified agricultural scouting platforms and long-range cinematic equipment. Additionally, tech universities and robotics research institutions deploy this robust speed controller to run custom flight test beds utilizing complex iNav or ArduPilot autonomy ecosystems.

Thermal Stability and Electrical Configuration

When operating high-powered brushless motors on a 6S battery bank, sudden active braking can send dangerous electrical noise back into the main distribution traces. The Zerodrag BOOST addresses this hazard by embedding an ultra-rugged TVS safety diode into the primary power input circuit. To reinforce overall system stability, users should solder the included Rubycon 35V 1000µF low-ESR electrolytic capacitor directly across the primary power pads. This filtering significantly cleans up internal lines, shielding sensitive analog components like video transmitters and camera sensors from interference.
